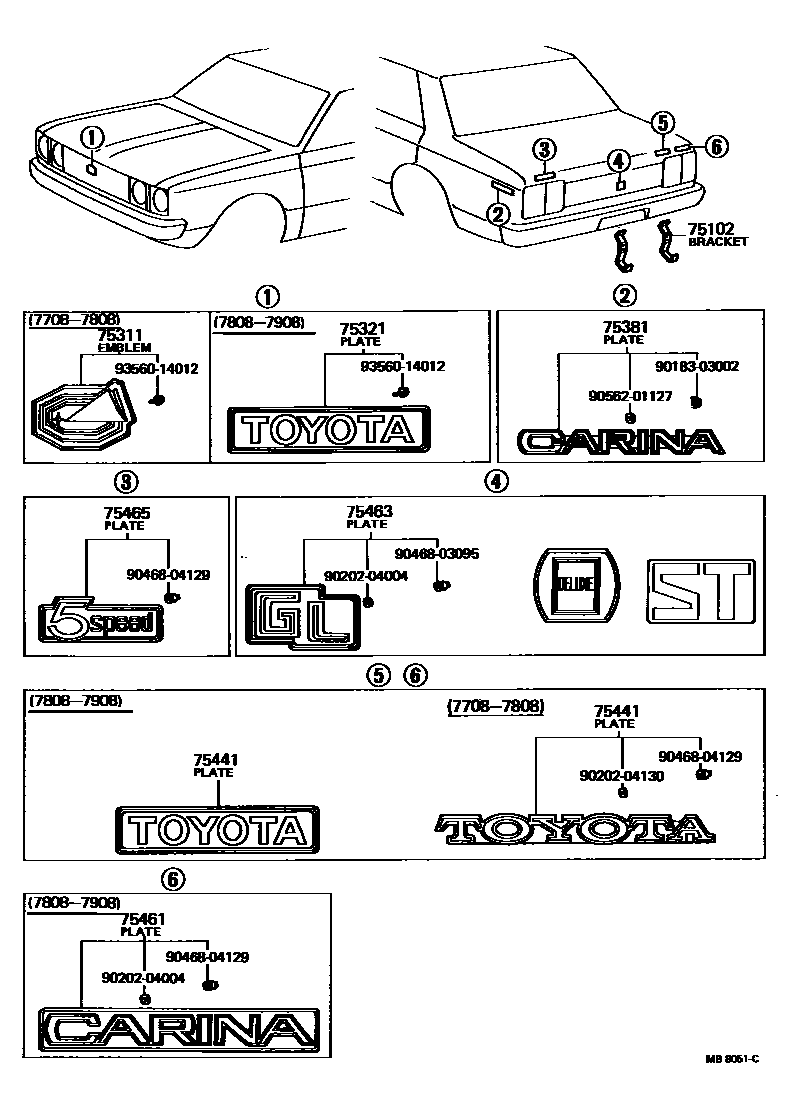

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1 0003 1

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75121-14070iTA40..SED197708-197908

main75121-15010iTA4#..WG..EUR197708-198107

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75301-19055iTA40197708-197808

sub75301-19056

main75311-19875iTA4#197908-198107

TOYOTA

75321PLATE, RADIATOR GRILLE OR FRONT PANEL NAME

main75321-19485iTA40197808-197908

TOYOTA

75381PLATE, QUARTER PANEL OR SIDE PANEL NAME (MODEL MARK)

main75381-19015iTA40197708-197908

CARINA

75441PLATE, REAR NAME, NO.1

main75441-12150iTA40..SED197708-197808

TOYOTA

main75441-14120iTA40..SED197808-197908

TOYOTA

main75441-14140iTA4#..SED197908-198107

TOYOTA CARINA

75461PLATE, REAR NAME, NO.2 (MODEL MARK)

main75445-14040iTA4#..WG197808-198107

CARINA

75463PLATE, REAR NAME, NO.4 (GRADE MARK)

main75441-13010iTA4#..WG..DLX197708-198107

DELUXE

main75444-14070iTA4#..SED..DLX197908-198107

DELUXE

main75444-14090iTA40..ST197908-198107

ST

main75444-14130iTA40..GL197908-198107

GL

main75461-14320iTA40..SED..DLX197708-197908

DELUXE

main75461-14370iTA40..GL197708-197908

GL

main75461-14510iTA40..ST197708-197908

ST

sub75461-14380

75465PLATE, REAR NAME, NO.5 (MECHANISM)

main75443-14110iTA40..5F197708-197908

5SPEED

main75443-14111iTA4#..5F197908-198107

5SPEED

9018303002

main90183-03002

9020204004

main90202-04004

9020204130

main90202-04130

9046803095

main90468-03095

9046804129

main90468-04129

9056201127

main90562-01127

9356014012

main93560-14012

15 parts on this diagram · 3 diagrams in section
