ASH RECEPTACLE

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-14050iTA40..STD197708-198107

sub74104-14080

main74104-14080iTA4#197708-198107

W/LIGHTING

74106RECEPTACLE SUB-ASSY, ASH, NO.2

main74130-14010-01iTA4#..GL197908-198107

BLACK,BLACK,TRIM2#

sub74130-14010

sub74130-12040

main74130-14010-04iTA4#..GL197908-198107

BLUE,BLUE,TRIM8#

sub74130-14010

sub74130-12040

main74130-14010-26iTA4#..GL197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub74130-14010

sub74130-12040

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74102-14070-01iTA4#197708-198107

BLACK,BLACK,TRIM2#

sub74102-14070

main74102-14070-04iTA4#..SED197708-198107

BLUE,BLUE,TRIM8#

sub74102-14070

main74102-14070-06iTA4#197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub74102-14070

74130RECEPTACLE ASSY, REAR ASH

main74130-12030-01iTA40197708-197807

BLACK,BLACK,TRIM2#

sub74130-20060

main74130-12030-04iTA40..SED197708-197807

BLUE,BLUE,TRIM8#

sub74130-20060

main74130-12030-06iTA40197708-197807

DARK BROWN,BROWN,TRIM4#

sub74130-20060

main74130-20060-01iTA4#197807-198107

BLACK,BLACK,TRIM2#

sub74130-16010

sub74130-20060

main74130-20060-04iTA4#..SED197807-198107

BLUE,BLUE,TRIM8#

sub74130-16010

sub74130-20060

main74130-20060-06iTA40197807-197908

DARK BROWN,BROWN,TRIM4#

sub74130-16010

sub74130-20060

main74130-20060-26iTA4#197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub74130-16010

sub74130-20060

74135BRACKET, REAR ASH RECEPTACLE

main74149-14010iTA40..MTM..(DLX,STD)197708-198107

9018305094

main90183-05094

9165540616

main91655-40616

9354055012

main93540-55012

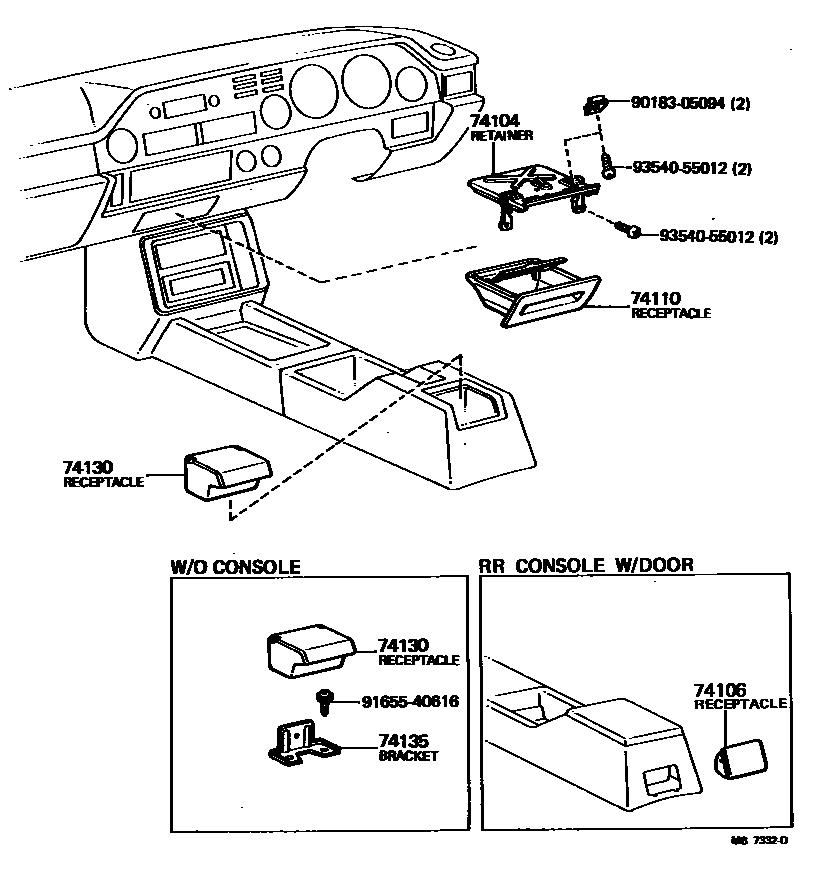

8 parts on this diagram · 1 diagram in section
