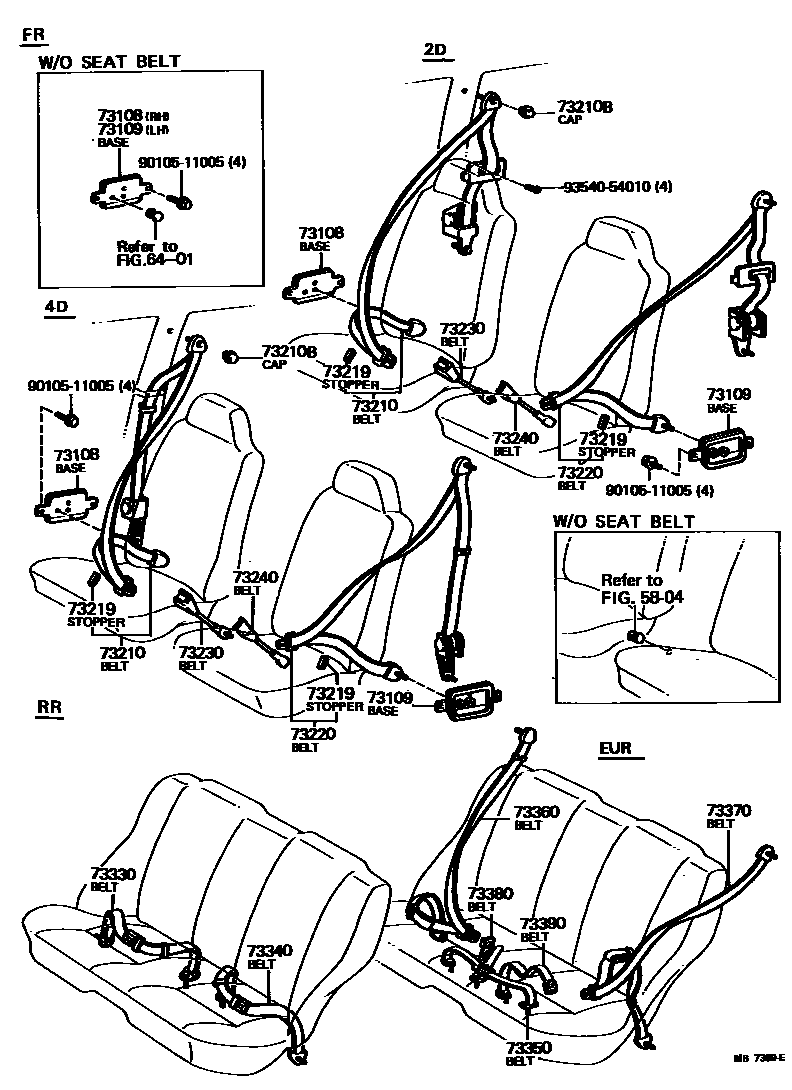

SEAT BELT & CHILD RESTRAINT SEAT
5804
6401
73108BASE SUB-ASSY, FRONT SEAT BELT ANCHOR, RH
73109BASE SUB-ASSY, FRONT SEAT BELT ANCHOR, LH
73210BELT ASSY, FRONT SEAT OUTER, RH
73210BCAP (FOR FRONT SEAT OUTER BELT)
73219STOPPER, TONGUE PLATE
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
73230BELT ASSY, FRONT SEAT INNER, RH
73240BELT ASSY, FRONT SEAT INNER, LH
73330BELT ASSY, REAR SEAT LAP TYPE, RH
73340BELT ASSY, REAR SEAT LAP TYPE, LH
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
WEST GERMANY SPEC,LIGHT BROWN,BROWN,TRIM4#
sub73350-14010
WEST GERMANY SPEC,LIGHT BROWN,BROWN,TRIM4#
sub73350-14011
WEST GERMANY SPEC,BLACK,BLACK,TRIM2#
sub73350-15010
WEST GERMANY SPEC,LIGHT BROW,BROWN,TRIM4#
sub73350-15010
WEST GERMANY SPEC,BLACK,BLACK,TRIM2#
sub73350-15011
WEST GERMANY SPEC,LIGHT BROW,BROWN,TRIM4#
sub73350-15011
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
9010511005
main90105-11005
9354054010
main93540-54010
19 parts on this diagram · 2 diagrams in section
