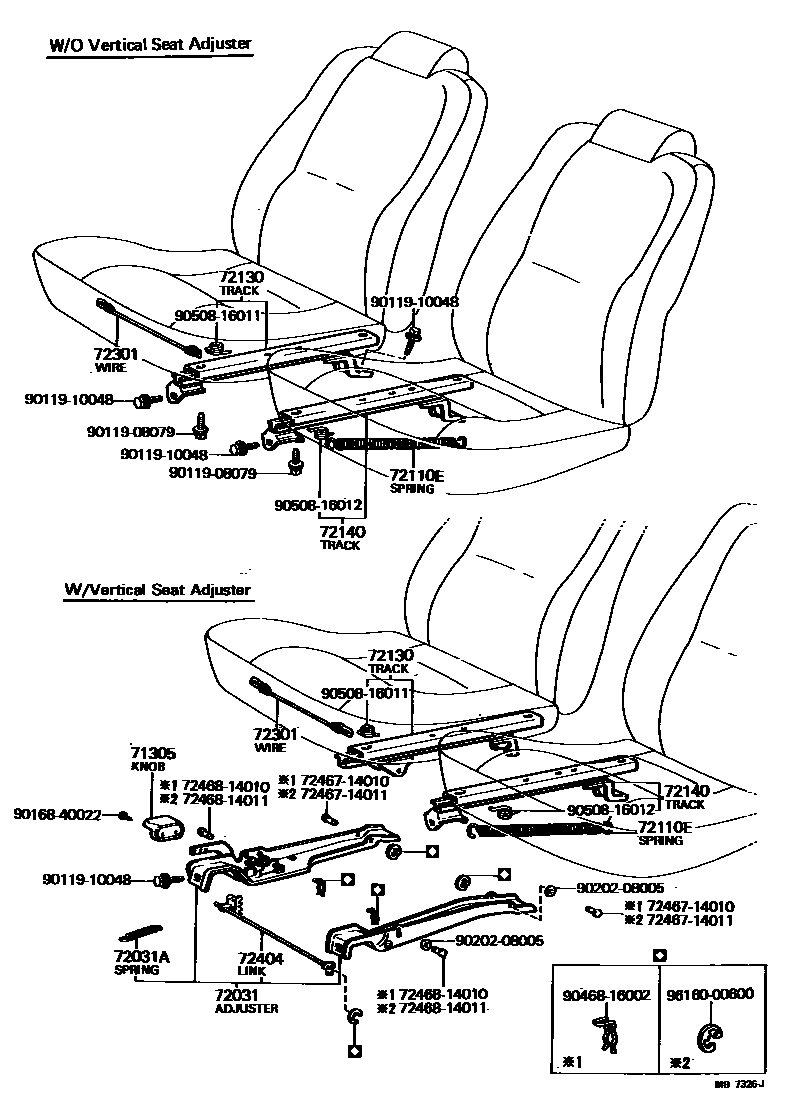

SEAT TRUCK

0001 1 0002 1

71305KNOB SUB-ASSY, FRONT SEAT ADJUSTING

main72457-14010-01iTA4#..RHD..(GL,ST)197708-198107

BLACK,BLACK,TRIM2#

sub72457-14010

main72457-14010-04iTA4#..RHD..(GL,ST)197708-198107

BLUE,BLUE,TRIM8#

sub72457-14010

main72457-14010-06iTA4#..RHD..(GL,ST)197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub72457-14010

main72457-14020-01iTA40..LHD..(GL,ST)197708-198107

BLACK,BLACK,TRIM2#

sub72457-14020

main72457-14020-04iTA40..LHD..EUG197708-198107

BLUE,BLUE,TRIM8#

sub72457-14020

main72457-14020-06iTA40..LHD..(GL,ST)197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub72457-14020

72031ADJUSTER ASSY, FRONT SEAT VERTICAL

main72310-14020iTA40..RHD..(GL,ST)197708-197808

sub72310-14021

sub71821-14011

main72310-14021iTA40..RHD..(GL,ST)197808-197903

sub72310-14022

main72310-14022iTA4#..RHD..(GL,ST)197903-198107

main72310-14030iTA40..LHD..(GL,ST)197708-197808

sub72310-14031

sub71822-14011

sub71822-14021

main72310-14031iTA40..LHD..EUG197808-197903

sub72310-14032

main72310-14032iTA4#..LHD..(GL,ST)197903-198107

72031ASPRING, TENSION (FOR VERTICAL ADJUSTER)

main90506-16015iTA4#..GL,ST197708-198107

72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)

main90506-18005iTA40..(DLX,ST)..2D197708-197908

WALK-IN

main90507-18002iTA4#..(DLX,ST)..2D197908-198107

WALK-IN

72130TRACK ASSY, RH SEAT, INNER

main72130-14070iTA40..LHD..(DLX,ST)..2D197708-197808

WALK-IN

sub72130-14071

main72130-14071iTA40..LHD..(DLX,ST)..2D197808-197908

WALK-IN

main72130-14080iTA40..LHD..STD..2D..GEN197708-197808

sub72130-14081

main72130-14081iTA40..LHD..STD..2D..GEN197808-197908

main72130-14090iTA40..RHD..(GL,ST)197708-197808

VERTICAL ADJUSTER

main72130-14091iTA40..RHD..(GL,ST)197808-197908

VERTICAL ADJUSTER

main72130-14160iTA4#..(DLX,STD)..4D197908-198107

sub72130-14180

main72130-14170iTA4#..RHD..(GL,ST)197908-198107

VERTICAL ADJUSTER

main72130-14180iTA4#..LHD..(GL,ST)197908-198107

WALK-IN

72140TRACK ASSY, LH SEAT, INNER

main72140-14080iTA40..RHD..(DLX,ST)..2D197708-197808

WALK-IN

sub72140-14081

main72140-14081iTA40..RHD..(DLX,ST)..2D197808-197908

WALK-IN

main72140-14090iTA40..RHD..STD..2D197708-197808

sub72140-14091

main72140-14091iTA40..RHD..STD..2D197808-197908

main72140-14140iTA40..LHD..EUG197708-197908

VERTICAL ADJUSTER

main72140-14141iTA40..LHD..(GL,ST)197808-197908

VERTICAL ADJUSTER

main72140-14200iTA4#..RHD..4D197908-198107

sub72140-14220

main72140-14210iTA4#..LHD..(GL,ST)197908-198107

VERTICAL ADJUSTER

main72140-14220iTA40..RHD..(DLX,ST)..2D197908-198107

WALK-IN

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-14010iTA40197708-197908

main72301-14030iTA4#..GL,ST197908-198107

W/VERTICAL ADJUSTER

sub72301-12050

72404LINK SUB-ASSY, VERTICAL SEAT

main72404-14011iTA4#..RHD..(GL,ST)197905-198107

main72404-14021iTA4#..LHD..(GL,ST)197905-198107

7246714010PIN, VERTICAL ADJUSTER

main72467-14010

7246714011PIN, VERTICAL ADJUSTER

main72467-14011

7246814010

main72468-14010

7246814011

main72468-14011

9011908079

main90119-08079

9011910048

main90119-10048

9016840022

main90168-40022

9020208005

main90202-08005

9046816002

main90468-16002

9050816011

main90508-16011

9050816012

main90508-16012

9616000600

main96160-00600

20 parts on this diagram · 2 diagrams in section
