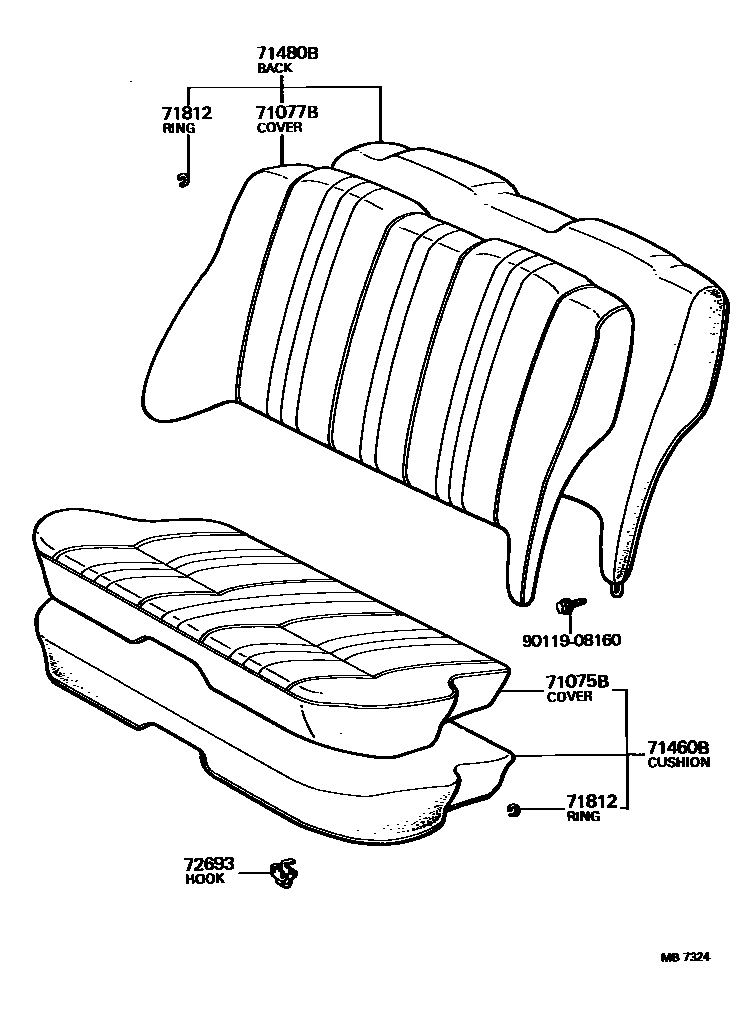

REAR SEAT & SEAT TRACK

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-14630-01i197708-197801

FB-A,BLACK,BLACK,TRIM2#

sub71075-14631

main71075-14630-04i197708-197801

FB-A,BLUE,BLUE,TRIM8#

sub71075-14631

main71075-14630-06i197708-197801

FB-A,LIGHT BROWN,BROWN,TRIM4#

sub71075-14631

main71075-14631-01i197801-197908

FB-A,BLACK,BLACK,TRIM2#

main71075-14631-04i197801-197908

FB-A,BLUE,BLUE,TRIM8#

main71075-14631-06i197801-197908

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71075-14632-01i197908-198008

FB-A,BLACK,BLACK,TRIM2#

main71075-14632-04i197908-198008

FB-A,BLUE,BLUE,TRIM8#

main71075-14632-06i197908-198008

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71075-14650-01i197708-197711

FB-B,BLACK,BLACK,TRIM2#

main71075-14650-04i197708-197711

FB-B,BLUE,BLUE,TRIM8#

main71075-14650-06i197708-197711

FB-B,LIGHT BROWN,BROWN,TRIM4#

main71075-14651-01i197711-197801

FB-B,BLACK,BLACK,TRIM2#

sub71075-14652

main71075-14651-04i197711-197801

FB-B,BLUE,BLUE,TRIM8#

sub71075-14652

main71075-14651-06i197711-197801

FB-B,LIGHT BROWN,BROWN,TRIM4#

sub71075-14652

main71075-14652-01i197801-197908

FB-B,BLACK,BLACK,TRIM2#

main71075-14652-04i197801-197908

FB-B,BLUE,BLUE,TRIM8#

main71075-14652-06i197801-197908

FB-B,LIGHT BROWN,BROWN,TRIM4#

main71075-14660-01i197708-197801

FB-C,BLACK,BLACK,TRIM2#

sub71075-14661¥50,200

main71075-14660-04i197708-197801

FB-C,BLUE,BLUE,TRIM8#

sub71075-14661¥50,200

main71075-14660-06i197708-197801

FB-C,LIGHT BROWN,BROWN,TRIM4#

sub71075-14661¥50,200

main71075-14661-01i197801-198001

FB-C,BLACK,BLACK,TRIM2#

sub71075-14662

main71075-14661-04i197801-197908

FB-C,BLUE,BLUE,TRIM8#

sub71075-14662

main71075-14661-06i197801-198001

FB-C,LIGHT BROWN,BROWN,TRIM4#

sub71075-14662

main71075-14661-14i197908-198001

FB-C,BLUE,BLUE,TRIM8#

sub71075-14662

main71075-14662-01i198001-198107

FB-C,BLACK,BLACK,TRIM2#

main71075-14662-06i198001-198107

FB-C,LIGHT BROWN,BROWN,TRIM4#

main71075-14662-14i198001-198107

FB-C,BLUE,BLUE,TRIM8#

main71075-15060-01i197708-197908

FB-A,BLACK,BLACK,TRIM2#

main71075-15060-06i197708-197908

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71075-15060-06i197708-197908

FB-A,BLACK,BROWN,TRIM2#

main71075-15061-01i197908-198008

FB-A,BLACK,BLACK,TRIM2#

main71075-15061-06i197908-198008

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71075-15080-01i197708-198010

PF,BLACK,BLACK,TRIM2#

main71075-15080-06i197708-198010

PF,LIGHT BROWN,BROWN,TRIM4#

main71075-15090-01i198010-198107

PF,BLACK,BLACK,TRIM2#

main71075-15090-06i198010-198107

PF,LIGHT BROWN,BROWN,TRIM4#

main71075-15100-01i198008-198107

FB-A,BLACK,BLACK,TRIM2#

main71075-15100-06i198008-198107

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71075-1B040-01i197708-197801

PF,BLACK,BLACK,TRIM2#

sub71075-1B041

main71075-1B040-04i197708-197801

PF,BLUE,BLUE,TRIM8#

sub71075-1B041

main71075-1B040-06i197708-197801

PF,LIGHT BROWN,BROWN,TRIM4#

sub71075-1B041

main71075-1B041-01i197801-198107

PF,BLACK,BLACK,TRIM2#

main71075-1B041-04i197801-197908

PF,BLUE,BLUE,TRIM8#

main71075-1B041-06i197801-198107

PF,LIGHT BROWN,BROWN,TRIM4#

main71075-1B041-14i197908-198107

PF,BLUE,BLUE,TRIM8#

main71075-1B160-01i197908-198107

FB-B,BLACK,BLACK,TRIM2#

main71075-1B160-04i197908-198107

FB-B,BLUE,BLUE,TRIM8#

main71075-1B160-06i197908-198107

FB-B,LIGHT BROWN,BROWN,TRIM4#

main71075-1B330-01i198008-198107

FB-A,BLACK,BLACK,TRIM2#

main71075-1B330-04i198008-198107

FB-A,BLUE,BLUE,TRIM8#

main71075-1B330-06i198008-198107

FB-A,LIGHT BROWN,BROWN,TRIM4#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-14490-01i197708-198001

FB-C,BLACK,BLACK,TRIM2#

sub71077-14491

main71077-14490-04i197708-197908

FB-C,BLUE,BLUE,TRIM8#

sub71077-14491

main71077-14490-06i197708-198001

FB-C,LIGHT BROWN,BROWN,TRIM4#

sub71077-14491

main71077-14490-14i197908-198001

FB-C,BLUE,BLUE,TRIM8#

sub71077-14491

main71077-14491-01i198001-198107

FB-C,BLACK,BLACK,TRIM2#

main71077-14491-06i198001-198107

FB-C,LIGHT BROWN,BROWN,TRIM4#

main71077-14491-14i198001-198107

FB-C,BLUE,BLUE,TRIM8#

main71077-14800-01i197708-198107

PF,BLACK,BLACK,TRIM2#

sub71077-14800¥35,900

main71077-14800-04i197708-197908

PF,BLUE,BLUE,TRIM8#

sub71077-14800¥35,900

main71077-14800-06i197708-198107

PF,LIGHT BROWN,BROWN,TRIM4#

sub71077-14800¥35,900

main71077-14800-14i197908-198107

PF,BLUE,BLUE,TRIM8#

sub71077-14800¥35,900

main71077-14810-01i197708-197908

FB-A,BLACK,BLACK,TRIM2#

main71077-14810-04i197708-197908

FB-A,BLUE,BLUE,TRIM8#

main71077-14810-06i197708-197908

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71077-14811-01i197908-198008

FB-A,BLACK,BLACK,TRIM2#

main71077-14811-04i197908-198008

FB-A,BLUE,BLUE,TRIM8#

main71077-14811-06i197908-198008

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71077-14812-01i198008-198107

FB-A,BLACK,BLACK,TRIM2#

main71077-14812-04i198008-198107

FB-A,BLUE,BLUE,TRIM8#

main71077-14812-06i198008-198107

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71077-14820-01i197708-197711

FB-B,BLACK,BLACK,TRIM2#

main71077-14820-04i197708-197711

FB-B,BLUE,BLUE,TRIM8#

main71077-14820-06i197708-197711

FB-B,LIGHT BROWN,BROWN,TRIM4#

main71077-14821-01i197711-197908

FB-B,BLACK,BLACK,TRIM2#

main71077-14821-04i197711-197908

FB-B,BLUE,BLUE,TRIM8#

main71077-14821-06i197711-197908

FB-B,LIGHT BROWN,BROWN,TRIM4#

main71077-14822-01i197908-198107

FB-B,BLACK,BLACK,TRIM2#

main71077-14822-04i197908-198107

FB-B,BLUE,BLUE,TRIM8#

main71077-14822-06i197908-198107

FB-B,LIGHT BROWN,BROWN,TRIM4#

main71077-15060-01i197708-197908

FB-A,BLACK,BLACK,TRIM2#

main71077-15060-06i197708-197908

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71077-15061-01i197908-198008

FB-A,BLACK,BLACK,TRIM2#

main71077-15061-06i197908-198008

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71077-15080-01i197708-198010

PF,BLACK,BLACK,TRIM2#

main71077-15080-06i197708-198010

PF,LIGHT BROWN,BROWN,TRIM4#

main71077-15090-01i198010-198107

PF,BLACK,BLACK,TRIM2#

main71077-15090-06i198010-198107

PF,LIGHT BROWN,BROWN,TRIM4#

main71077-15100-01i198008-198107

FB-A,BLACK,BLACK,TRIM2#

main71077-15100-06i198008-198107

FB-A,LIGHT BROWN,BROWN,TRIM4#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-14620-01i197708-197801

FB-A,BLACK,BLACK,TRIM2#

sub71460-14621

main71460-14620-04i197708-197801

FB-A,BLUE,BLUE,TRIM8#

sub71460-14621

main71460-14620-06i197708-197801

FB-A,LIGHT BROWN,BROWN,TRIM4#

sub71460-14621

main71460-14621-01i197801-197908

FB-A,BLACK,BLACK,TRIM2#

main71460-14621-04i197801-197908

FB-A,BLUE,BLUE,TRIM8#

main71460-14621-06i197801-197908

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71460-14622-01i197908-198008

FB-A,BLACK,BLACK,TRIM2#

main71460-14622-04i197908-198008

FB-A,BLUE,BLUE,TRIM8#

main71460-14622-06i197908-198008

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71460-14640-01i197708-197711

FB-B,BLACK,BLACK,TRIM2#

main71460-14640-04i197708-197711

FB-B,BLUE,BLUE,TRIM8#

main71460-14640-06i197708-197711

FB-B,LIGHT BROWN,BROWN,TRIM4#

main71460-14641-01i197711-197801

FB-B,BLACK,BLACK,TRIM2#

sub71460-14642

main71460-14641-04i197711-197801

FB-B,BLUE,BLUE,TRIM8#

sub71460-14642

main71460-14641-06i197711-197801

FB-B,LIGHT BROWN,BROWN,TRIM4#

sub71460-14642

main71460-14642-01i197801-197908

FB-B,BLACK,BLACK,TRIM2#

main71460-14642-04i197801-197908

FB-B,BLUE,BLUE,TRIM8#

main71460-14642-06i197801-197908

FB-B,LIGHT BROWN,BROWN,TRIM4#

main71460-14643-01i197908-198107

FB-B,BLACK,BLACK,TRIM2#

main71460-14643-04i197908-198107

FB-B,BLUE,BLUE,TRIM8#

main71460-14643-06i197908-198107

FB-B,LIGHT BROWN,BROWN,TRIM4#

main71460-14650-01i197708-197801

FB-C,BLACK,BLACK,TRIM2#

sub71460-14651

main71460-14650-04i197708-197801

FB-C,BLUE,BLUE,TRIM8#

sub71460-14651

main71460-14650-06i197708-197801

FB-C,LIGHT BROWN,BROWN,TRIM4#

sub71460-14651

main71460-14651-01i197801-198107

FB-C,BLACK,BLACK,TRIM2#

main71460-14651-04i197801-197908

FB-C,BLUE,BLUE,TRIM8#

main71460-14651-06i197801-198107

FB-C,LIGHT BROWN,BROWN,TRIM4#

main71460-14651-14i197908-198107

FB-C,BLUE,BLUE,TRIM8#

main71460-14660-01i197708-197801

PF,BLACK,BLACK,TRIM2#

sub71460-14661

main71460-14660-04i197708-197801

PF,BLUE,BLUE,TRIM8#

sub71460-14661

main71460-14660-06i197708-197801

PF,LIGHT BROWN,BROWN,TRIM4#

sub71460-14661

main71460-14661-01i197801-198107

PF,BLACK,BLACK,TRIM2#

main71460-14661-04i197801-197908

PF,BLUE,BLUE,TRIM8#

main71460-14661-06i197801-198107

PF,LIGHT BROWN,BROWN,TRIM4#

main71460-14661-14i197908-198107

PF,BLUE,BLUE,TRIM8#

main71460-15060-01i197708-197908

FB-A,BLACK,BLACK,TRIM2#

main71460-15060-06i197708-197908

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71460-15061-01i197908-198008

FB-A,BLACK,BLACK,TRIM2#

main71460-15061-06i197908-198008

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71460-15070-01i197708-197908

FB-A,BLACK,BLACK,TRIM2#

main71460-15070-06i197708-197908

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71460-15071-01i197908-198008

FB-A,BLACK,BLACK,TRIM2#

main71460-15071-06i197908-198008

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71460-15072-01i198008-198107

FB-A,BLACK,BLACK,TRIM2#

main71460-15072-06i198008-198107

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71460-15090-01i197708-198010

PF,BLACK,BLACK,TRIM2#

main71460-15090-06i197708-198010

PF,LIGHT BROWN,BROWN,TRIM4#

main71460-15100-01i197708-198010

PF,BLACK,BLACK,TRIM2#

main71460-15100-06i197708-198010

PF,LIGHT BROWN,BROWN,TRIM4#

main71460-15110-01i198010-198107

PF,BLACK,BLACK,TRIM2#

main71460-15110-06i198010-198107

PF,LIGHT BROWN,BROWN,TRIM4#

main71460-15120-01i198010-198107

PF,BLACK,BLACK,TRIM2#

main71460-15120-06i198010-198107

PF,LIGHT BROWN,BROWN,TRIM4#

main71460-15130-01i198008-198107

FB-A,BLACK,BLACK,TRIM2#

main71460-15130-06i198008-198107

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71460-1B360-01i198008-198107

FB-A,BLACK,BLACK,TRIM2#

main71460-1B360-04i198008-198107

FB-A,BLUE,BLUE,TRIM8#

main71460-1B360-06i198008-198107

FB-A,LIGHT BROWN,BROWN,TRIM4#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-14490-01i197708-198107

FB-C,BLACK,BLACK,TRIM2#

main71480-14490-04i197708-197908

FB-C,BLUE,BLUE,TRIM8#

main71480-14490-06i197708-198107

FB-C,LIGHT BROWN,BROWN,TRIM4#

main71480-14490-14i197908-198107

FB-C,BLUE,BLUE,TRIM8#

main71480-14500-01i197708-198107

PF,BLACK,BLACK,TRIM2#

main71480-14500-04i197708-197908

PF,BLUE,BLUE,TRIM8#

main71480-14500-06i197708-198107

PF,LIGHT BROWN,BROWN,TRIM4#

main71480-14500-14i197908-198107

PF,BLUE,BLUE,TRIM8#

main71480-14510-01i197708-197908

FB-A,BLACK,BLACK,TRIM2#

main71480-14510-04i197708-197908

FB-A,BLUE,BLUE,TRIM8#

main71480-14510-06i197708-197908

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71480-14511-01i197908-198008

FB-A,BLACK,BLACK,TRIM2#

main71480-14511-04i197908-198008

FB-A,BLUE,BLUE,TRIM8#

main71480-14511-06i197908-198008

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71480-14512-01i198008-198107

FB-A,BLACK,BLACK,TRIM2#

main71480-14512-04i198008-198107

FB-A,BLUE,BLUE,TRIM8#

main71480-14512-06i198008-198107

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71480-14520-01i197708-197711

FB-B,BLACK,BLACK,TRIM2#

main71480-14520-04i197708-197711

FB-B,BLUE,BLUE,TRIM8#

main71480-14520-06i197708-197711

FB-B,LIGHT BROWN,BROWN,TRIM4#

main71480-14521-01i197711-197908

FB-B,BLACK,BLACK,TRIM2#

main71480-14521-04i197711-197908

FB-B,BLUE,BLUE,TRIM8#

main71480-14521-06i197711-197908

FB-B,LIGHT BROWN,BROWN,TRIM4#

main71480-14522-01i197908-198107

FB-B,BLACK,BLACK,TRIM2#

main71480-14522-04i197908-198107

FB-B,BLUE,BLUE,TRIM8#

main71480-14522-06i197908-198107

FB-B,LIGHT BROWN,BROWN,TRIM4#

main71480-15060-01i197708-197908

FB-A,BLACK,BLACK,TRIM2#

main71480-15060-06i197708-197908

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71480-15061-01i197908-198008

FB-A,BLACK,BLACK,TRIM2#

main71480-15061-06i197908-198008

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71480-15062-01i198008-198107

FB-A,BLACK,BLACK,TRIM2#

main71480-15062-06i198008-198107

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71480-15070-01i197708-197908

FB-A,BLACK,BLACK,TRIM2#

main71480-15070-06i197708-197908

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71480-15071-01i197908-198008

FB-A,BLACK,BLACK,TRIM2#

main71480-15071-06i197908-198008

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71480-15072-01i198008-198107

FB-A,BLACK,BLACK,TRIM2#

main71480-15072-06i198008-198107

FB-A,LIGHT BROWN,BROWN,TRIM4#

main71480-15090-01i197708-198010

PF,BLACK,BLACK,TRIM2#

main71480-15090-06i197708-198010

PF,LIGHT BROWN,BROWN,TRIM4#

main71480-15100-01i197708-198010

PF,BLACK,BLACK,TRIM2#

main71480-15100-06i197708-198010

PF,LIGHT BROWN,BROWN,TRIM4#

main71480-15120-01i198010-198107

PF,BLACK,BLACK,TRIM2#

main71480-15120-06i198010-198107

PF,LIGHT BROWN,BROWN,TRIM4#

main71480-15130-01i198010-198107

PF,BLACK,BLACK,TRIM2#

main71480-15130-06i198010-198107

PF,LIGHT BROWN,BROWN,TRIM4#

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main90468-18071i¥160197708-198107

sub90468-18008¥80

72693HOOK, REAR SEAT CUSHION LOCK

main72693-14020i197708-198107

9011908160

main90119-08160¥160

7 parts on this diagram · 5 diagrams in section
