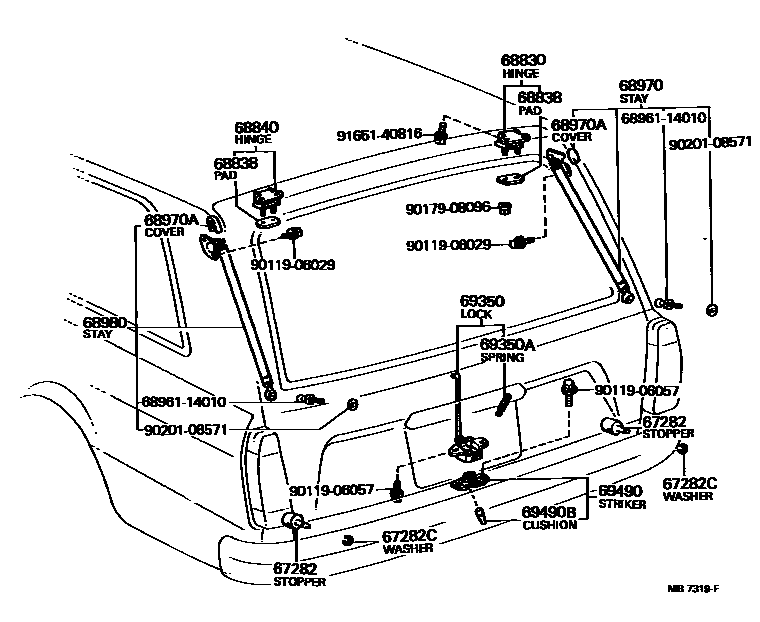

BACK DOOR LOCK & HANDLE

67282STOPPER, BACK DOOR, NO.1

main67281-13030iTA4#..WG197708-198107

67282CWASHER, BACK DOOR STOPPER

main90213-12019iTA4#..WG197708-198107

T=1.0

main90213-12020iTA4#..WG197708-198107

T=2.3

68830HINGE ASSY, BACK DOOR, RH

main68810-15030iTA4#..WG197708-198107

sub68810-15031

68838PAD, BACK DOOR HINGE, NO.1

main68838-15010iTA4#..WG197708-198107

sub68838-15011

68840HINGE ASSY, BACK DOOR, LH

main68810-15030iTA4#..WG197708-198107

sub68810-15031

68970STAY ASSY, BACK DOOR, RH

main68950-19015iTA40..WG..GEN;TA40..WG..EUG197708-198107

main68950-19025iTA4#..WG197708-198107

W/RR WIPER

68970ACOVER, BACK DOOR STAY

main68911-15010iTA4#..WG197708-198107

68980STAY ASSY, BACK DOOR

main68960-19015iTA40..WG..GEN;TA40..WG..EUG197708-198107

main68960-19025iTA4#..WG197708-198107

W/RR WIPER

69350LOCK ASSY, BACK DOOR

main69350-15012iTA4#..WG197708-198107

69350ASPRING(FOR BACK DOOR LOCK)

main90506-08009iTA4#..WG197708-198107

69490STRIKER ASSY, BACK DOOR LOCK

main69430-15010iTA4#..WG197708-198107

69490BCUSHION(FOR BACK DOOR LOCK STRIKER)

main90541-06002iTA4#..WG197708-198107

sub90541-06019

6896114010BOLT, BACK DOOR STAY

main68961-14010

9011906029

main90119-06029

9011906057

main90119-06057

9017908096

main90179-08096

9020108571

main90201-08571

9165140816

main91651-40816

18 parts on this diagram · 1 diagram in section
