REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-14020iTA40..4DS¥64,200197708-197908

sub67003-14021¥61,200

main67003-14021iTA4#..4DS¥61,200197908-198107

sub67003-14030

sub90950-01060¥200

main67003-15020iTA4#..WG197708-198107

67003CCUSHION, REAR DOOR PANEL

main90541-09006iTA4#..4D¥190197708-198107

OD=17

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-14020iTA40..4DS¥64,200197708-197908

sub67004-14021¥61,200

main67004-14021iTA4#..4DS¥61,200197908-198107

sub67004-14030¥53,300

sub90950-01060¥200

main67004-15020iTA4#..WG197708-198107

67113PANEL, REAR DOOR, OUTER RH

main67113-14020iTA4#..4D197708-198107

67114PANEL, REAR DOOR, OUTER LH

main67114-14020iTA4#..4D197708-198107

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-14020iTA4#..4DS197708-198107

main67407-15020iTA4#..WG197708-198107

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-14020iTA4#..4DS197708-198107

main67408-15020iTA4#..WG197708-198107

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-14090-01iTA40..4DS..STD197708-198107

BLACK,BLACK,TRIM2#

sub67630-14090¥15,300

main67630-14090-04iTA40..4DS..STD197708-197908

BLUE,BLUE,TRIM8#

sub67630-14090¥15,300

main67630-14090-06iTA40..4DS..STD197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub67630-14090¥15,300

main67630-14090-14iTA40..4DS..STD197908-198107

BLUE,BLUE,TRIM8#

sub67630-14090¥15,300

main67630-14100-01iTA4#..4DS..DLX197708-198107

BLACK,BLACK,TRIM2#

sub67630-14100¥18,700

main67630-14100-04iTA40..4DS..DLX197708-197908

BLUE,BLUE,TRIM8#

sub67630-14100¥18,700

main67630-14100-06iTA4#..4DS..DLX197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub67630-14100¥18,700

main67630-14100-14iTA4#..4DS..DLX197908-198107

BLUE,BLUE,TRIM8#

sub67630-14100¥18,700

main67630-14110-01iTA40..ST..4D197708-198107

BLACK,BLACK,TRIM2#

sub67630-14110¥21,900

main67630-14110-04iTA40..ST..4D197708-197908

BLUE,BLUE,TRIM8#

sub67630-14110¥21,900

main67630-14110-06iTA40..ST..4D197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub67630-14110¥21,900

main67630-14110-14iTA40..ST..4D197908-198107

BLUE,BLUE,TRIM8#

sub67630-14110¥21,900

main67630-14130-01iTA4#..GL197708-198107

BLACK,BLACK,TRIM2#

sub67630-14130¥28,800

main67630-14130-04iTA40..GL197708-197908

BLUE,BLUE,TRIM8#

sub67630-14130¥28,800

main67630-14130-06iTA4#..GL197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub67630-14130¥28,800

main67630-14130-14iTA4#..GL197908-198107

BLUE,BLUE,TRIM8#

sub67630-14130¥28,800

main67630-15030-01iTA4#..WG..DLX197708-198107

BLACK,BLACK,TRIM2#

main67630-15030-06iTA4#..WG..DLX197708-198107

LIGHT BROWN,BROWN,TRIM4#

main67630-15040-01iTA40..WG..STD197708-198107

BLACK,BLACK,TRIM2#

sub67630-15020

main67630-15040-06iTA40..WG..STD197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub67630-15020

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-14090-01iTA40..4DS..STD197708-198107

BLACK,BLACK,TRIM2#

sub67640-14090¥15,300

main67640-14090-04iTA40..4DS..STD197708-197908

BLUE,BLUE,TRIM8#

sub67640-14090¥15,300

main67640-14090-06iTA40..4DS..STD197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub67640-14090¥15,300

main67640-14090-14iTA40..4DS..STD197908-198107

BLUE,BLUE,TRIM8#

sub67640-14090¥15,300

main67640-14100-01iTA4#..4DS..DLX197708-198107

BLACK,BLACK,TRIM2#

sub67640-14100¥18,700

main67640-14100-04iTA40..4DS..DLX197708-197908

BLUE,BLUE,TRIM8#

sub67640-14100¥18,700

main67640-14100-06iTA4#..4DS..DLX197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub67640-14100¥18,700

main67640-14100-14iTA4#..4DS..DLX197908-198107

BLUE,BLUE,TRIM8#

sub67640-14100¥18,700

main67640-14110-01iTA40..ST..4D197708-198107

BLACK,BLACK,TRIM2#

sub67640-14110¥21,900

main67640-14110-04iTA40..ST..4D197708-197908

BLUE,BLUE,TRIM8#

sub67640-14110¥21,900

main67640-14110-06iTA40..ST..4D197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub67640-14110¥21,900

main67640-14110-14iTA40..ST..4D197908-198107

BLUE,BLUE,TRIM8#

sub67640-14110¥21,900

main67640-14130-01iTA4#..GL197708-198107

BLACK,BLACK,TRIM2#

sub67640-14130¥28,800

main67640-14130-04iTA40..GL197708-197908

BLUE,BLUE,TRIM8#

sub67640-14130¥28,800

main67640-14130-06iTA4#..GL197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub67640-14130¥28,800

main67640-14130-14iTA4#..GL197908-198107

BLUE,BLUE,TRIM8#

sub67640-14130¥28,800

main67640-15030-01iTA4#..WG..DLX197708-198107

BLACK,BLACK,TRIM2#

main67640-15030-06iTA4#..WG..DLX197708-198107

LIGHT BROWN,BROWN,TRIM4#

main67640-15040-01iTA40..WG..STD197708-198107

BLACK,BLACK,TRIM2#

sub67640-15020

main67640-15040-06iTA40..WG..STD197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub67640-15020

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main69751-20030iTA40..STD..4D¥320197708-198107

sub69751-20031¥330

main69751-20040iTA4#..(DLX,GL,ST)..4D¥350197708-198107

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-14050iTA4#..4D197708-198107

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-14050iTA4#..4D197708-198107

67811BPAD, SIDE PANEL SILENCER

main67139-12010iTA4#..4D197708-198107

67871WEATHERSTRIP, REAR DOOR, RH

main67871-14080iTA40..4DS¥6,500197708-197802

sub67871-14081

main67871-14081iTA4#..4DS197802-198107

main67871-15030iTA40..WG¥7,000197708-197802

sub67871-15031

main67871-15031iTA4#..WG197802-198107

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67868-30040iTA4#..4D¥110197708-198107

67872WEATHERSTRIP, REAR DOOR, LH

main67872-14070iTA40..4DS¥6,500197708-197802

sub67872-14071

main67872-14071iTA4#..4DS197802-198107

main67872-15030iTA40..WG¥7,000197708-197802

sub67872-15031

main67872-15031iTA4#..WG197802-198107

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-14030iTA40..4DS..(DLX,GL,ST)¥6,300197708-198107

*TT,T=4.0

main68113-14040iTA40..4DS..STD¥6,000197708-198107

*TEM,T=4.0

sub68113-14030¥6,300

main68113-15030iTA4#..WG¥6,500197708-198107

*TT,T=4.0

main68113-15040iTA40..WG..STD¥5,900197708-198107

*TEM,T=4.0

sub68113-15030¥6,500

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-14030iTA4#..4DS¥6,300197708-198107

*TT,T=4.0

main68114-14040iTA40..4DS..STD¥6,000197708-198107

*TEM,T=4.0

sub68114-14030¥6,300

main68114-15030iTA4#..WG¥6,500197708-198107

*TT,T=4.0

main68114-15040iTA40..WG..STD¥5,900197708-198107

*TEM,T=4.0

sub68114-15030¥6,500

68123GLASS, REAR DOOR WINDOW, RH

main68123-14120iTA4#..4DS¥3,480197708-198107

*TT,T=4.0

main68123-14130iTA40..4DS..STD¥3,150197708-198107

*TEM,T=4.0

sub68123-14120¥3,480

main68123-15030iTA4#..WG¥3,910197708-198107

*TT,T=4.0

main68123-15040iTA40..WG..STD¥3,410197708-198107

*TEM,T=4.0

sub68123-15030¥3,910

68124GLASS, REAR DOOR WINDOW, LH

main68124-14120iTA4#..4DS¥3,480197708-198107

*TT,T=4.0

main68124-14130iTA40..4DS..STD¥3,150197708-198107

*TEM,T=4.0

sub68124-14120¥3,480

main68124-15030iTA4#..WG¥3,910197708-198107

*TT,T=4.0

main68124-15040iTA40..WG..STD¥3,410197708-198107

*TEM,T=4.0

sub68124-15030¥3,910

68142RUN, REAR DOOR GLASS

main68142-14020iTA4#..4D197708-198107

L=1851

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-14030iTA40..STD..4D197708-198107

RH

main68230-14020iTA40..STD..4D197708-198107

LH

68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-10020iTA40..STD..4D¥270197708-198107

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-14020iTA4#..4DS197708-198107

RH

main68188-15020iTA4#..WG197708-198107

RH

main68189-14020iTA4#..4DS197708-198107

LH

main68189-15020iTA4#..WG197708-198107

LH

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68180-14030iTA40..STD..4D197708-198107

RH

main68190-14050iTA4#..(DLX,GL,ST)..4D197708-198107

main68230-14020iTA40..STD..4D197708-198107

LH

68190ACLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10020iTA40..STD..4D¥270197908-198107

68630CHECK ASSY, REAR DOOR

main68630-14010iTA4#..4D¥4,560197708-198101

sub68630-14011

main68630-14011iTA4#..4D198101-198107

68630APIN(FOR REAR DOOR CHECK)

main68617-22010iTA4#..4D¥300197708-198107

sub68617-12010¥280

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022¥200

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010¥170

9017906070

main90179-06070¥180

9095001229

main90950-01229¥200

9165140610

main91651-40610¥160

9322915010

main93229-15010¥130

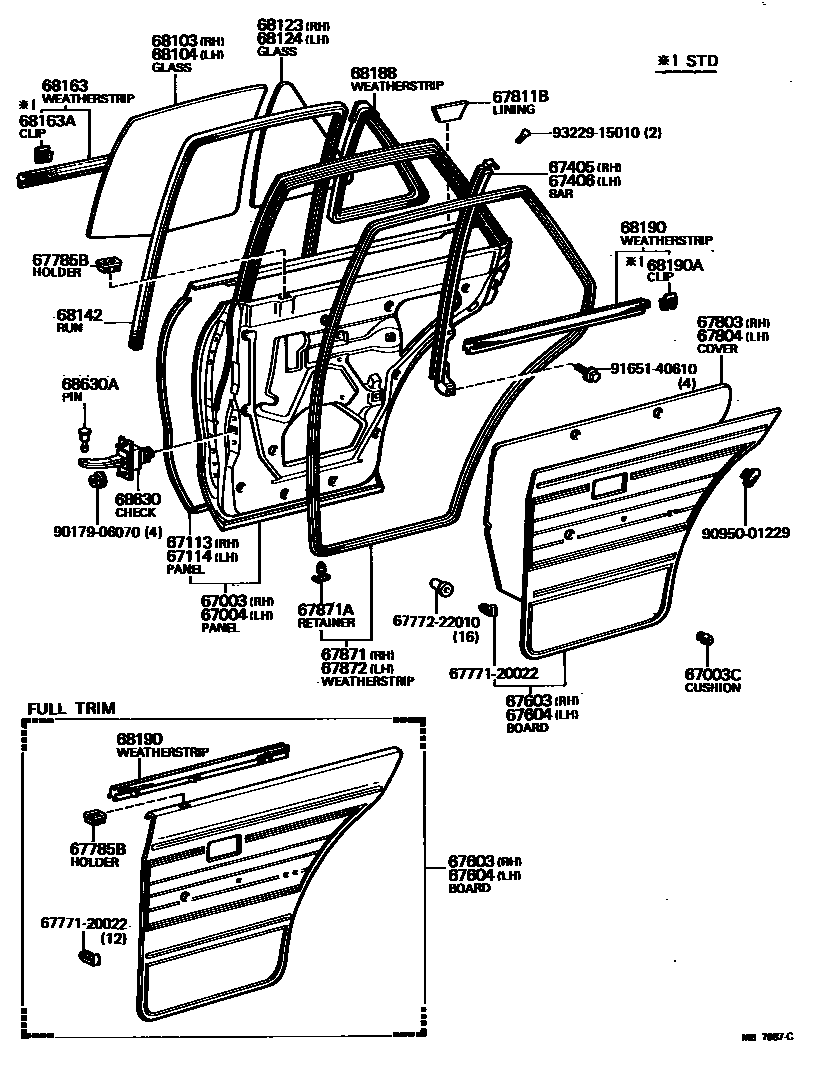

34 parts on this diagram · 1 diagram in section
