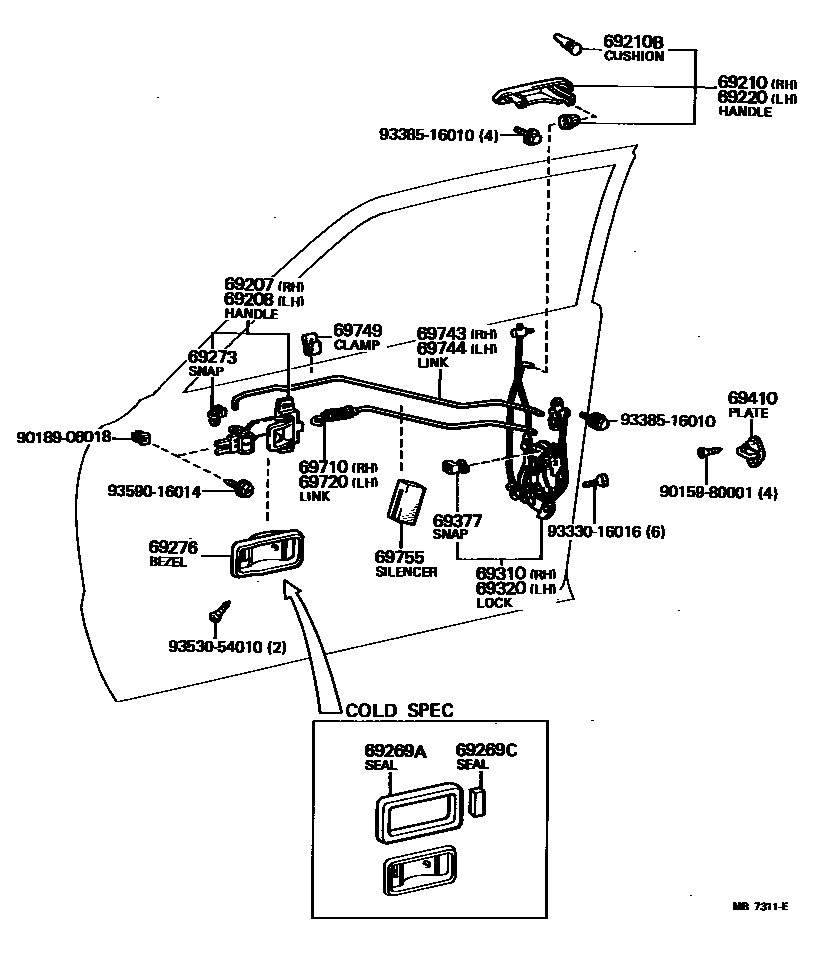

FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
COLD SPEC
69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
COLD SPEC
69273SNAP, DOOR INSIDE HANDLE ROD
69276BEZEL, FRONT DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69377SNAP, FRONT DOOR LOCK CONTROL ROD
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
69755SILENCER, FRONT DOOR LOCK LINK
T=20,W/TAPE
T=30,W/TAPE
T=20,W/O TAPE
9015980001
9018906018
9333016016
9338516010
9353054010
9359016014
25 parts on this diagram · 2 diagrams in section
