ROOF HEADLINING & SILENCER PAD

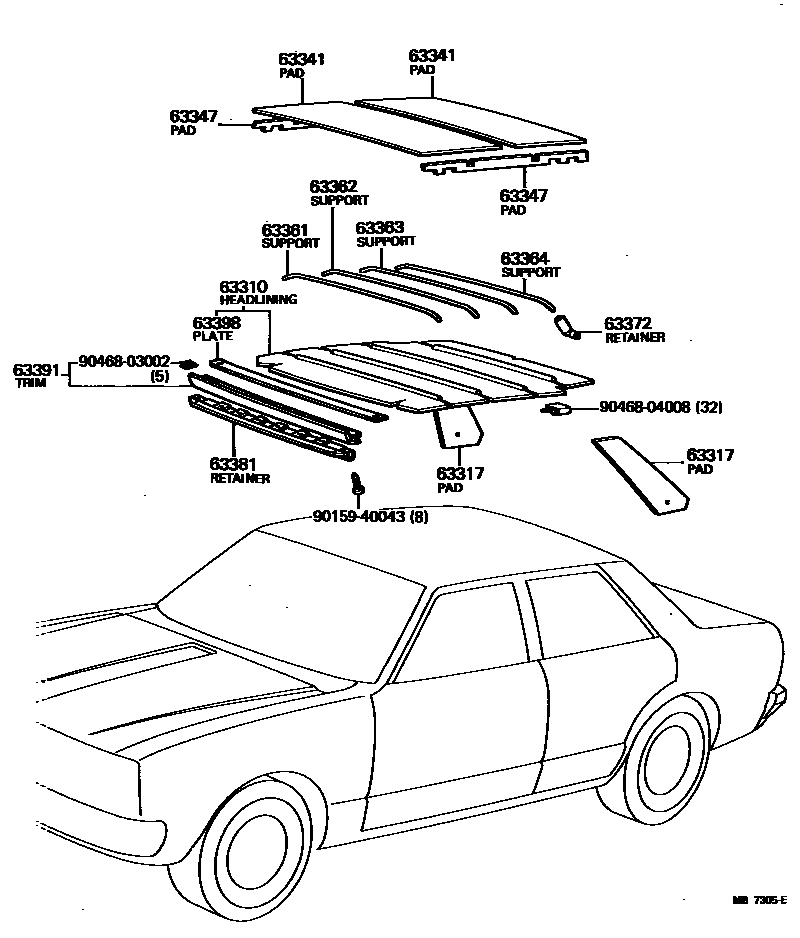

Parts diagram
63310HEADLINING ASSY, ROOF
main63310-14180-03i197708-197805
GRAY,GRAY,TRIM2#
sub63310-14181
main63310-14180-04i197708-197805
BLUE,BLUE,TRIM8#
sub63310-14181
main63310-14180-06i197708-197805
LIGHT BROWN,BROWN,TRIM4#
sub63310-14181
main63310-14181-03i197805-198008
GRAY,GRAY,TRIM2#
main63310-14181-04i197805-198107
BLUE,BLUE,TRIM8#
main63310-14181-06i197805-198107
LIGHT BROWN,BROWN,TRIM4#
main63310-14181-08i198008-198107
IVORY,IVORY,TRIM2#
main63310-14190-03i197708-198003
GRAY,GRAY,TRIM2#
sub63310-14191
main63310-14190-04i197708-198003
BLUE,BLUE,TRIM8#
sub63310-14191
main63310-14190-06i197708-198003
LIGHT BROWN,BROWN,TRIM4#
sub63310-14191
main63310-14191-03i198003-198008
GRAY,GRAY,TRIM2#
main63310-14191-04i198003-198107
BLUE,BLUE,TRIM8#
main63310-14191-06i198003-198107
LIGHT BROWN,BROWN,TRIM4#
main63310-14191-08i198008-198107
IVORY,IVORY,TRIM2#
main63310-15040-03i197708-197805
GRAY,GRAY,TRIM2#
sub63310-15050
main63310-15040-06i197708-197805
LIGHT BROWN,BROWN,TRIM4#
sub63310-15050
main63310-15050-03i197805-198008
GRAY,GRAY,TRIM2#
main63310-15050-06i197805-198107
LIGHT BROWN,BROWN,TRIM4#
main63310-15050-08i198008-198107
IVORY,IVORY,TRIM2#
63317PAD, ROOF HEADLINING REAR GARNISH
main62475-14040i197708-198107
main62475-14050i197708-198107
63341PAD, ROOF SILENCER, NO.1
main63341-14020i197708-198107
sub63341-14030
63347PAD, ROOF SIDE VENT SILENCER
main63347-14010i197708-198107
RH
main63348-14010i197708-198107
LH
63361SUPPORT, ROOF HEADLINING, NO.1
main63361-14030i197708-198107
BROWN
sub63363-14020
main63361-15010i197708-198107
BLACK
sub63362-15010
main63362-14030i197708-198107
RED
sub63363-14020
main63362-15010i197708-198107
GREEN
main63363-14020i197708-198107
YELLOW
main63363-15010i197708-198107
WHITE
sub63362-15010
main63364-14020i197708-198107
BLUE
63362SUPPORT, ROOF HEADLINING, NO.2
main63361-14030i197708-198107
BROWN
sub63363-14020
main63361-15010i197708-198107
BLACK
sub63362-15010
main63362-14030i197708-198107
RED
sub63363-14020
main63362-15010i197708-198107
GREEN
main63363-14020i197708-198107
YELLOW
main63363-15010i197708-198107
WHITE
sub63362-15010
main63364-14020i197708-198107
BLUE
63363SUPPORT, ROOF HEADLINING, NO.3
main63361-14030i197708-198107
BROWN
sub63363-14020
main63361-15010i197708-198107
BLACK
sub63362-15010
main63362-14030i197708-198107
RED
sub63363-14020
main63362-15010i197708-198107
GREEN
main63363-14020i197708-198107
YELLOW
main63363-15010i197708-198107
WHITE
sub63362-15010
main63364-14020i197708-198107
BLUE
63364SUPPORT, ROOF HEADLINING, NO.4
main63361-14030i197708-198107
BROWN
sub63363-14020
main63361-15010i197708-198107
BLACK
sub63362-15010
main63362-14030i197708-198107
RED
sub63363-14020
main63362-15010i197708-198107
GREEN
main63363-14020i197708-198107
YELLOW
main63363-15010i197708-198107
WHITE
sub63362-15010
main63364-14020i197708-198107
BLUE
63372RETAINER, HEADLINING SUPPORT
main63371-14030i197708-198107
sub63371-14040
63381RETAINER, HEADLINING, FRONT
main63381-14010i197708-198107
63391TRIM, ROOF HEADLINING, FRONT
main63391-14030-01i197708-197807
BLACK,BLACK,TRIM2#
sub63391-14031
main63391-14030-04i197708-197807
BLUE,BLUE,TRIM8#
sub63391-14031
main63391-14030-06i197708-197807
LIGHT BROWN,BROWN,TRIM4#
sub63391-14031
main63391-14031-01i197807-198107
BLACK,BLACK,TRIM2#
sub63391-14031
main63391-14031-04i197807-197908
BLUE,BLUE,TRIM8#
sub63391-14031
main63391-14031-06i197807-198107
LIGHT BROWN,BROWN,TRIM4#
sub63391-14031
main63391-14031-14i197908-198107
BLUE,BLUE,TRIM8#
sub63391-14031
63398PLATE, ROOF HEADLINING SUPPORT
main63398-14010i197708-198107
main63398-15010i197708-197805
sub63398-14010
9015940043
main90159-40043
9046803002
main90468-03002
9046804008
main90468-04008

15 parts on this diagram · 2 diagrams in section
