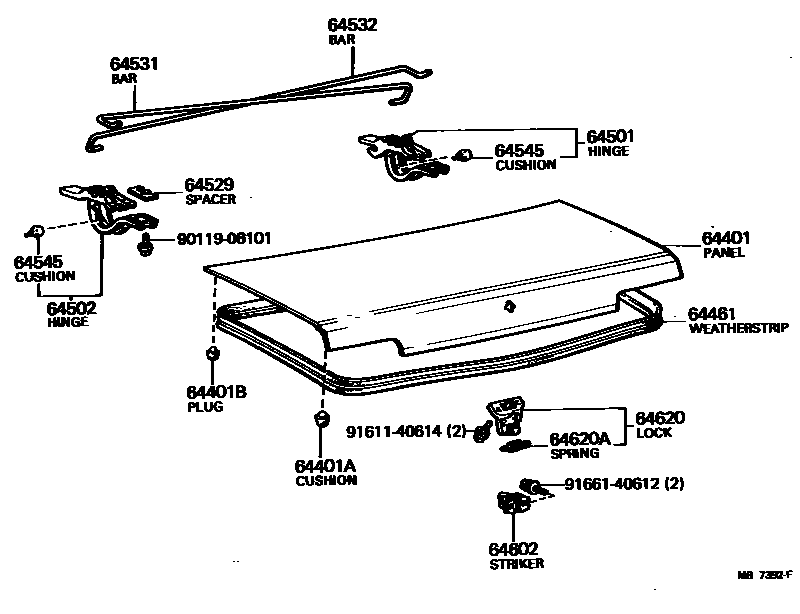

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-14220iTA40..SED197708-197908

sub64401-14901

main64401-14901iTA4#..SED197908-198107

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09126iTA4#..SED197708-198107

OD=9

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-07001iTA4#..SED198008-198107

OD=7

sub90541-07003

main90541-07022iTA4#..SED197708-198008

OD=7

sub90541-07001

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-14090iTA4#..SED197708-198006

sub64461-14091

main64461-14091iTA4#..SED198006-198107

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-14050iTA4#..SED197708-198107

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-14050iTA4#..SED197708-198107

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-22010iTA4#..SED197708-198107

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-14050iTA4#..SED197708-198107

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-14050iTA4#..SED197708-198107

64545CUSHION, LUGGAGE DOOR HINGE

main90541-09003iTA4#..SED197708-197909

main90541-09013iTA4#..SED197909-198107

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-22030iTA4#..SED197708-198107

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20040iTA4#..SED197908-198107

main64610-95800iTA40..SED197708-197804

sub64610-95801

main64610-95801iTA40..SED197804-197908

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08107iTA40..SED197708-197908

main90506-09001iTA4#..SED197908-198107

9011906101

main90119-06101

9161140614

main91611-40614

9166140612

main91661-40612

16 parts on this diagram · 1 diagram in section
