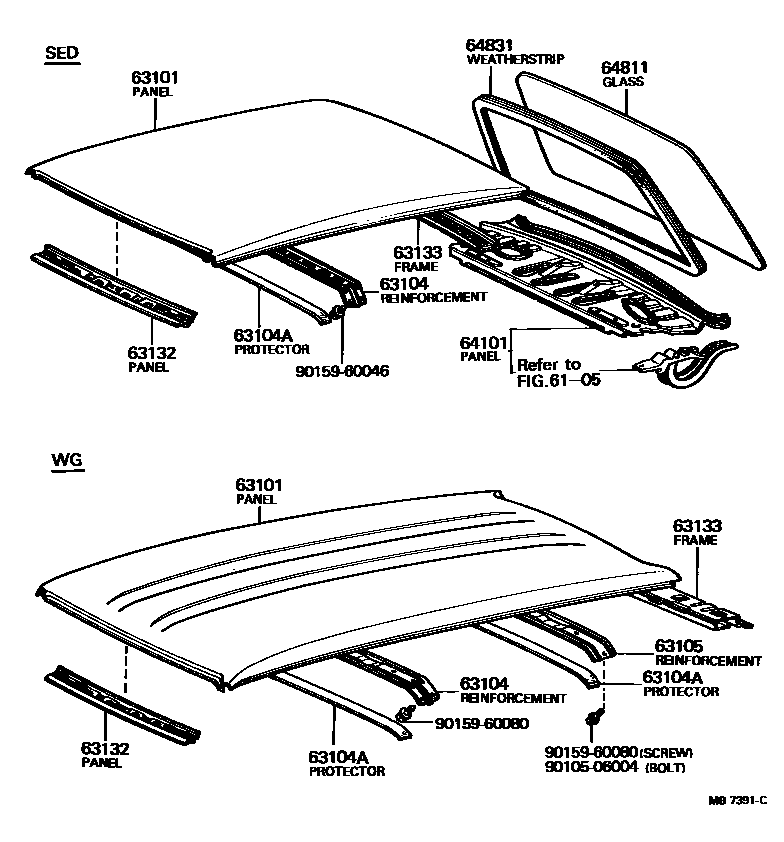

ROOF PANEL & BACK WINDOW GLASS

6105

63101PANEL SUB-ASSY, ROOF

main63111-14050iTA4#..SED197708-198107

main63111-15020iTA4#..WG197708-198107

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-14040iTA4#..SED197708-198107

main63103-15020iTA40..WG197708-197808

main63103-15030iTA4#..WG197808-198107

63104APROTECTOR, ROOF REINFORCEMENT

main63331-14010iTA40..LHD..EUG197708-198107

FR,WEST GERMANY SPEC

sub63331-30010

main63332-15010iTA40..LHD..WG..EUG197708-198107

RR,WEST GERMANY SPEC

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-15010iTA4#..WG197708-198107

63132PANEL, WINDSHIELD HEADER, INNER

main63102-14010iTA4#197708-198107

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-15010iTA4#..WG197708-198107

main63133-14050iTA4#..SED197708-198107

64101PANEL SUB-ASSY, UPPER BACK

main64101-14080iTA40..SED197708-198107

sub64101-14120

main64101-14120iTA47..SDN197908-198107

64811GLASS, BACK WINDOW

main64801-14130iTA40..SED197708-198107

*EHTT,T=4.0

main64801-14140iTA40..SED..STD197708-198107

*EHT,T=4.0

sub64801-14130

main64801-14150iTA4#..LHD..SED..EUR197708-198107

COLD SPEC,*EHTT,T=4.0

main64811-14230iTA40..SED..DLX197708-198107

*TT,T=4.0

sub64801-14130

main64811-14240iTA40..SED..STD197708-198107

*TEM,T=4.0

sub64801-14130

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-14010iTA40..SED197708-197908

main64812-14011iTA4#..SED197908-198107

9010506004

main90105-06004

9015960046

main90159-60046

9015960080

main90159-60080

13 parts on this diagram · 1 diagram in section
