MAT & CARPET

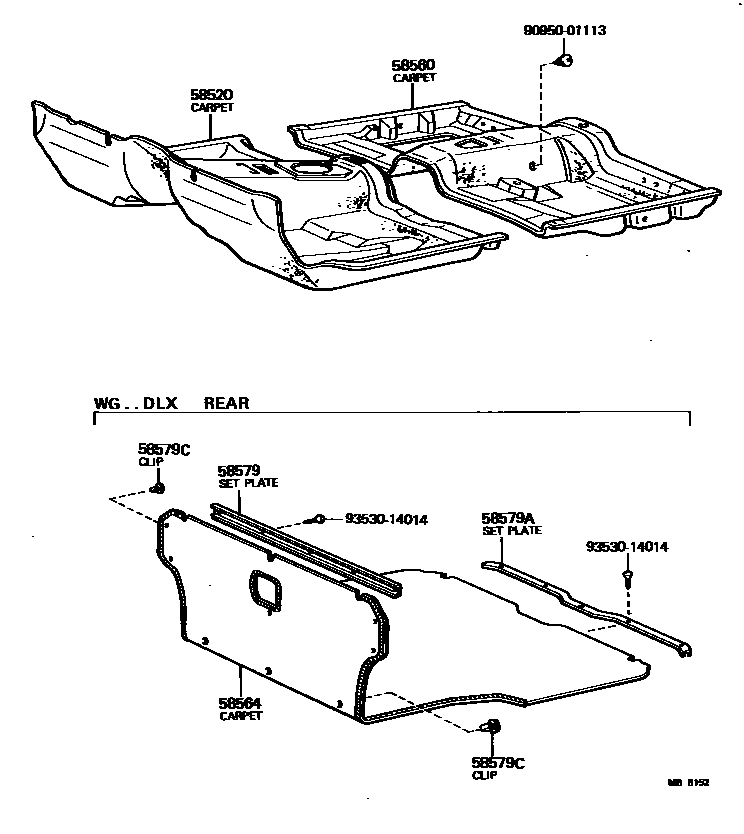

Parts diagram
58520CARPET ASSY, FRONT FLOOR
main58510-14390-01i197708-198107
W/CONSOLE,BLACK,BLACK,TRIM2#
main58510-14390-04i197708-197908
W/CONSOLE,BLUE,BLUE,TRIM8#
main58510-14390-06i197708-198107
W/CONSOLE,L-BROWN,BROWN,TRIM4#
main58510-14390-14i197908-198107
W/CONSOLE,BLUE,BLUE,TRIM8#
main58510-14400-01i197708-198107
W/CONSOLE,BLACK,BLACK,TRIM2#
main58510-14400-04i197708-197908
BLUE,BLUE,TRIM8#
main58510-14400-06i197708-198107
W/CONSOLE,L-BROWN,BROWN,TRIM4#
main58510-14400-14i197908-198107
W/CONSOLE,BLUE,BLUE,TRIM8#
main58510-14410-01i197708-198107
BLACK,BLACK,TRIM2#
main58510-14410-04i197708-197908
BLUE,BLUE,TRIM8#
main58510-14410-06i197708-198107
L-BROWN,BROWN,TRIM4#
main58510-14410-14i197908-198107
BLUE,BLUE,TRIM8#
main58510-14420-01i197708-198107
BLACK,BLACK,TRIM2#
main58510-14420-04i197708-197908
BLUE,BLUE,TRIM8#
main58510-14420-06i197708-198107
L-BROWN,BROWN,TRIM4#
main58510-14420-14i197908-198107
BLUE,BLUE,TRIM8#
main58510-14450-01i197708-198107
W/CONSOLE & *REH DUCT,BLACK,BLACK,TRIM2#
main58510-14450-04i197708-197908
W/CONSOLE & *REH DUCT,BLUE,BLUE,TRIM8#
main58510-14450-06i197708-198107
W/CONSOLE & *REH DUCT,L-BROWN,BROWN,TRIM4#
main58510-14450-14i197908-198107
W/CONSOLE & *REH DUCT,BLUE,BLUE,TRIM8#
main58510-14460-01i197708-198107
W/CONSOLE & *REH DUCT,BLACK,BLACK,TRIM2#
main58510-14460-04i197708-197908
W/CONSOLE & *REH DUCT,BLUE,BLUE,TRIM8#
main58510-14460-06i197708-198107
W/CONSOLE & *REH DUCT,L-BROWN,BROWN,TRIM4#
main58510-14460-14i197908-198107
W/CONSOLE & *REH DUCT,BLUE,BLUE,TRIM8#
main58510-14470-01i197708-197908
W/*REH DUCT,BLACK,BLACK,TRIM2#
main58510-14470-04i197708-197908
W/*REH DUCT,BLUE,BLUE,TRIM8#
main58510-14470-06i197708-197908
W/*REH DUCT,L-BROWN,BROWN,TRIM4#
main58510-14480-01i197708-197908
BLACK,BLACK,TRIM2#
main58510-14480-04i197708-197908
BLUE,BLUE,TRIM8#
main58510-14480-06i197708-197908
L-BROWN,BROWN,TRIM4#
main58510-14490-01i197708-197908
W/*REH DUCT,BLACK,BLACK,TRIM2#
main58510-14490-04i197708-197908
W/*REH DUCT,BLUE,BLUE,TRIM8#
main58510-14490-06i197708-197908
W/*REH DUCT,L-BROWN,BROWN,TRIM4#
main58510-14500-01i197708-197908
W/*REH DUCT,BLACK,BLACK,TRIM2#
main58510-14500-04i197708-197908
W/*REH DUCT,BLUE,BLUE,TRIM8#
main58510-14500-06i197708-197908
W/*REH DUCT,L-BROWN,BROWN,TRIM4#
main58510-14510-01i197708-197908
W/*REH DUCT,BLACK,BLACK,TRIM2#
main58510-14510-04i197708-197908
W/*REH DUCT,BLUE,BLUE,TRIM8#
main58510-14510-06i197708-197908
W/*REH DUCT,L-BROWN,BROWN,TRIM4#
main58510-14550-01i197908-198107
BLACK,BLACK,TRIM2#
main58510-14550-04i197908-198107
BLUE,BLUE,TRIM8#
main58510-14550-06i197908-198107
L-BROWN,BROWN,TRIM4#
main58510-14560-01i197908-198107
BLACK,BLACK,TRIM2#
main58510-14560-04i197908-197910
BLUE,BLUE,TRIM8#
main58510-14560-06i197908-198107
L-BROWN,BROWN,TRIM4#
main58510-14560-14i197910-198107
BLUE,BLUE,TRIM8#
main58510-14570-01i197908-198107
W/*REH DUCT,BALCK,BLACK,TRIM2#
main58510-14570-04i197908-197910
W/*REH DUCT,BLUE,BLUE,TRIM8#
main58510-14570-06i197908-198107
W/*REH DUCT,L-BROWN,BROWN,TRIM4#
main58510-14570-14i197910-198107
W/*REH DUCT,BLUE,BLUE,TRIM8#
58560CARPET ASSY, FLOOR, REAR
main58540-14110-01i197708-198107
BLACK,BLACK,TRIM2#
main58540-14110-04i197708-197908
BLUE,BLUE,TRIM8#
main58540-14110-06i197708-198107
L-BROWN,BROWN,TRIM4#
main58540-14110-14i197908-198107
BLUE,BLUE,TRIM8#
main58540-14130-01i197708-198107
BLACK,BLACK,TRIM2#
main58540-14130-04i197708-197908
BLUE,BLUE,TRIM8#
main58540-14130-06i197708-198107
L-BROWN,BROWN,TRIM4#
main58540-14130-14i197908-198107
BLUE,BLUE,TRIM8#
main58540-14180-01i197708-198107
BLACK,BLACK,TRIM2#
main58540-14180-04i197708-197908
BLUE,BLUE,TRIM8#
main58540-14180-06i197708-198107
L-BROWN,BROWN,TRIM4#
main58540-14180-14i197908-198107
BLUE,BLUE,TRIM8#
main58540-15040-01i197708-198107
BLACK,BLACK,TRIM2#
main58540-15040-06i197708-198107
L-BROWN,BROWN,TRIM4#
58564CARPET, REAR FLOOR
main58570-15020-01i197708-198107
BLACK,BLACK,TRIM2#
main58570-15020-06i197708-198107
L-BROWN,BROWN,TRIM4#
58579SET PLATE, REAR FLOOR CARPET, NO.1
main71882-13010i¥1,720197708-198107
58579ASET PLATE, REAR FLOOR CARPET, NO.2
main58573-15010i197708-198107
58579CCLIP, REAR FLOOR CARPET SET
main90467-06161-11i197708-198107
OD=14,BLACK,BLACK,TRIM2#
sub90467-06161¥200
main90467-06161-16i197708-198107
OD=14,L-BROWN,BROWN,TRIM4#
sub90467-06161¥200
main90467-07162-11i197708-198107
OD=26,BLACK,BLACK,TRIM2#
sub90467-07162¥260
main90467-07162-16i197708-198107
OD=26,L-BROWN,BROWN,TRIM4#
sub90467-07162¥260
9095001113
main90950-01113
9353014014
main93530-14014¥100

8 parts on this diagram · 1 diagram in section
