FLOOR MAT

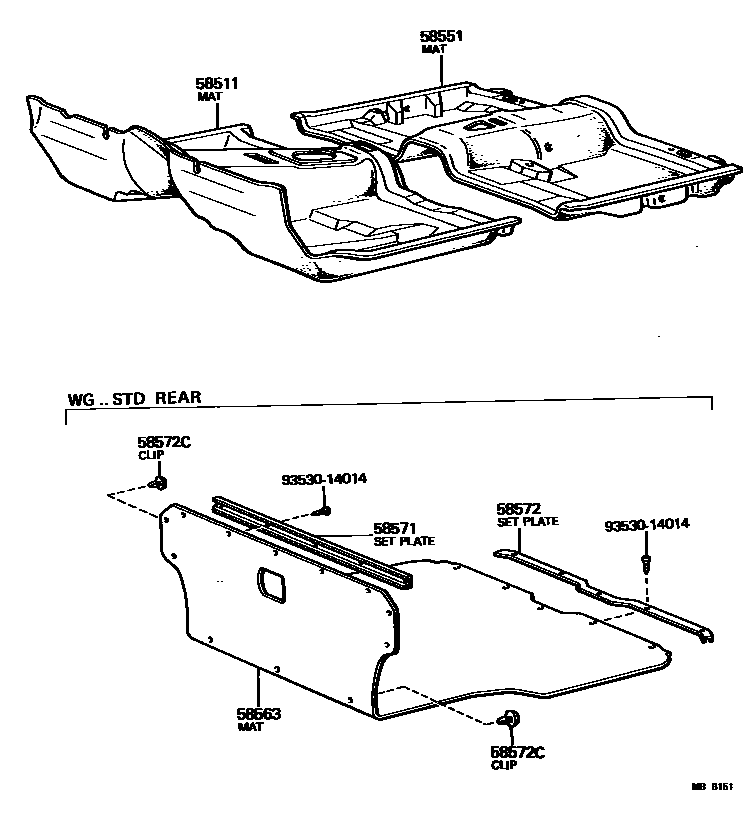

Parts diagram
58511MAT, FLOOR, FRONT
main58510-14330i197708-197908
main58510-14340i197708-197908
main58510-14350i197708-197908
W/CONSOLE
main58510-14360i197708-197908
W/CONSOLE
main58510-14580i197908-198107
main58510-14590i197908-198107
main58510-14600i197908-198107
W/CONSOLE
main58510-14610i197908-198107
W/CONSOLE
main58514-14310i197708-197908
58551MAT, FLOOR, REAR
main58514-14300i197708-197908
main58514-14310i197708-197908
main58514-14340i197908-198107
main58514-14350i197908-198107
main58540-15030i197708-197908
main58540-15031i197908-198107
58563MAT, REAR FLOOR
main58581-15020-01i197708-197908
BLACK,BLACK,TRIM2#
sub58581-15020
main58581-15020-05i197908-198107
BEIGE,BEIGE,TRIM4#
sub58581-15020
main58581-15020-06i197708-197908
LIGHT BROWN,BROWN,TRIM4#
sub58581-15020
main58581-15020-11i197908-198107
BLACK,BLACK,TRIM2#
sub58581-15020
58571SET PLATE, REAR FLOOR MAT, FRONT
main71882-13010i197708-198107
58572SET PLATE, REAR FLOOR MAT, REAR
main58573-15010i197708-198107
58572CCLIP, REAR FLOOR MAT SET
main90467-06161-11i197708-198107
OD=14,BLACK,BLACK,TRIM2#
sub90467-06161
main90467-06161-16i197708-198107
OD=14,LIGHT BROWN,BROWN,TRIM4#
sub90467-06161
main90467-07162-11i197708-198107
OD=26,BLACK,BLACK,TRIM2#
sub90467-07162
main90467-07162-16i197708-198107
OD=26,LIGHT BROWN,BROWN,TRIM4#
sub90467-07162
9353014010
main93530-14010
9353014014
main93530-14014

8 parts on this diagram · 1 diagram in section
