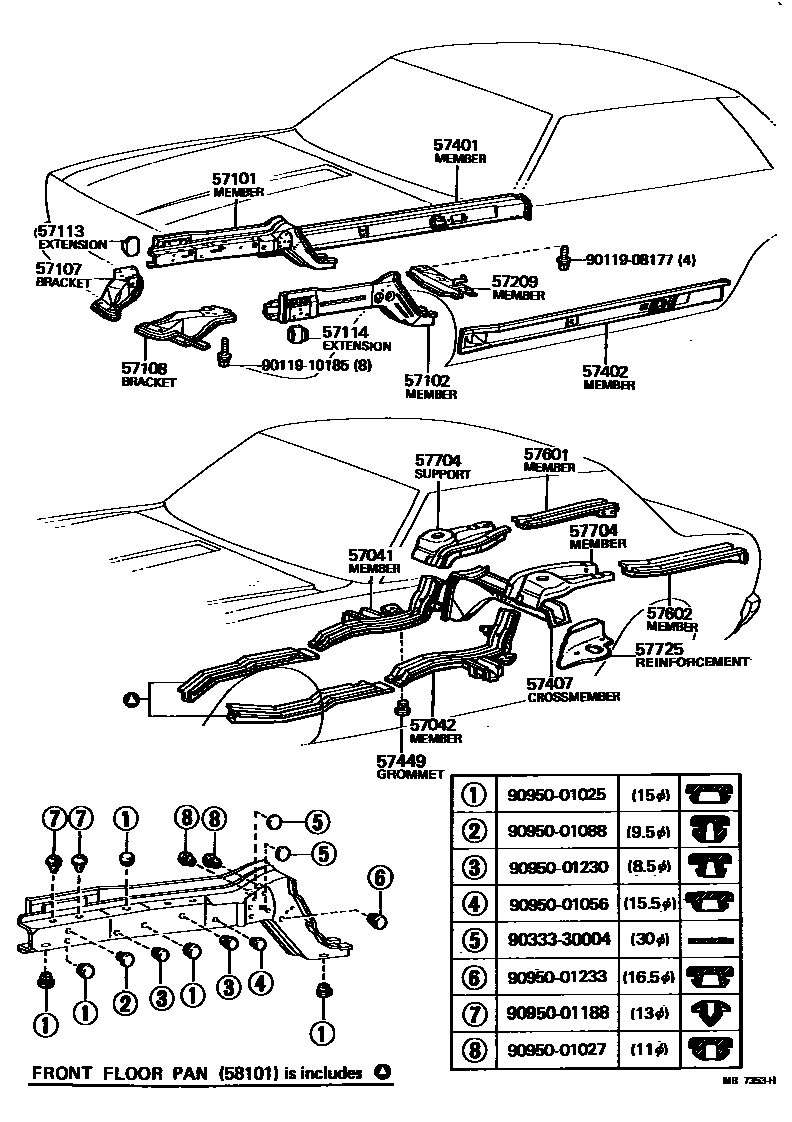

FLOOR SIDE MEMBER

0001 1 0002 1

57041MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH

main57041-14050iTA40..SED197708-197810

main57041-14110iTA4#..SED198006-198107

main57041-20020iTA4#..SED197810-198006

57042MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH

main57042-14040iTA40..SED197708-197810

main57042-14100iTA4#..SED198006-198107

main57042-20020iTA4#..SED197810-198006

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-14050iTA40197708-197908

sub57101-14100

main57101-14051iTA4#197908-198107

sub57101-14101

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-14040iTA40197708-197908

sub57102-14100

main57102-14101iTA4#197908-198107

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-14012iTA4#¥4,460197708-198107

sub57107-14040¥4,050

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-14012iTA4#¥4,460197708-198107

sub57108-14040¥4,050

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-14020iTA40197708-197804

sub57113-14050¥260

main57113-14050iTA40¥260197804-197908

main57113-14060iTA4#¥750197908-198107

57114EXTENSION, FRONT SIDE MEMBER, LH

main57113-14020iTA40197708-197804

sub57113-14050¥260

main57113-14050iTA40¥260197804-197908

main57113-14060iTA4#¥750197908-198107

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-14110iTA4#..3FC197708-198107

main57209-15010iTA40..MTM¥3,290197708-197911

sub57209-15011¥3,440

main57209-15011iTA4#..3FC¥3,440197911-198107

sub57209-20091

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-14090iTA4#197708-198107

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-14090iTA4#197708-198107

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57405-14020iTA40..SED¥15,600197708-197806

sub57405-14021

main57405-14021iTA40..SED197806-197901

sub57405-14040

main57405-14040iTA4#..SED197901-198107

57449GROMMET, CENTER FLOOR SIDE MEMBER

main57449-14010iTA4#..SED197708-198107

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-14020iTA40..SED197708-197908

main57601-14081iTA4#..SED¥7,600197908-198107

main57601-15020iTA40..WG¥46,400197708-197903

sub57601-15060

main57601-15030iTA40..WG..EUR¥45,700197808-197903

sub57601-15070

main57601-15060iTA40..WG..GEN197903-197908

main57601-15070iTA40..WG..EUR197903-197908

main57601-15080iTA4#..WG197908-198107

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-14020iTA40..SED197708-197908

main57602-14071iTA4#..SED¥7,600197908-198107

main57602-15020iTA40..WG¥46,400197708-197903

sub57602-15060

main57602-15030iTA40..WG..EUR¥45,700197808-197903

sub57602-15070

main57602-15060iTA40..WG..GEN197903-197908

main57602-15070iTA40..WG..EUR197903-197908

main57602-15080iTA4#..WG197908-198107

57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING

main57701-14010iTA4#..SED¥16,300197708-198107

RH

main57704-14010iTA4#..SED¥16,300197708-198107

LH

57725REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT

main57725-14010iTA4#..SED197901-198107

RH

main57726-14010iTA4#..SED197901-198107

LH

9011908177

main90119-08177¥140

9011910185

main90119-10185¥240

9033330004

main90333-30004¥60

9095001025

main90950-01025¥240

9095001027

main90950-01027¥160

9095001056

main90950-01056¥230

9095001088

main90950-01088¥110

9095001188

main90950-01188¥190

9095001230

main90950-01230¥190

9095001233

main90950-01233¥180

27 parts on this diagram · 2 diagrams in section
