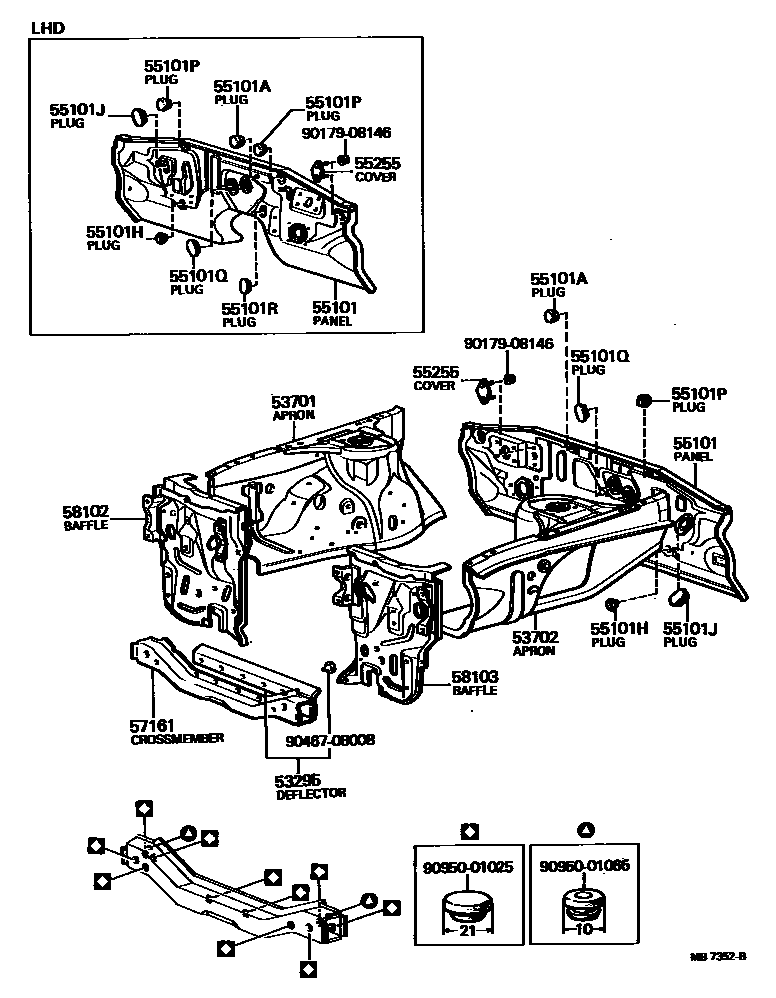

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53295DEFLECTOR, RADIATOR LOWER AIR

main53295-14021iTA40197708-198107

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-14100iTA4#197801-198107

sub53701-20350

main53701-14120iTA40197708-197801

sub53701-14100

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-14140iTA4#197708-198107

sub53702-14260

main53702-14240iTA4#..LHD..EUR197908-198107

W/HEAD LAMP CLEANER

sub53702-14280

55101PANEL SUB-ASSY, DASH

main55101-14140iTA40..RHD197708-198107

sub55101-14260

main55101-14190iTA4#..LHD197708-198107

55101APLUG, HOLE, NO.1(FOR DASH PANEL)

main90950-01133iTA4#..DLX,GL,STD197708-198107

W/O CHOKE,OD=13

55101HPLUG, HOLE, NO.2(FOR DASH PANEL)

main90950-01060iTA4#197708-198107

W/COOLER DRAIN,OD=25

sub90950-01866

55101JPLUG, HOLE, NO.3(FOR DASH PANEL)

main90950-01189iTA4#197708-198107

W/O COOLER,OD=34X74

55101PPLUG, HOLE, NO.4(FOR DASH PANEL)

main90950-01133iTA40..GEN197708-198107

W/WATER VALVE,OD=13

55101QPLUG, HOLE, NO.5(FOR DASH PANEL)

main90950-01189iTA40..GEN197708-198107

W/O HEATER,OD=34X74

55101RPLUG, HOLE, NO.6(FOR DASH PANEL)

main90950-01209iTA4#..LHD197708-198107

OD=29X47

55255COVER, CLUTCH MASTER CYLINDER HOLE

main55255-22010iTA4#..RHD..3FC197708-198107

main55255-22020iTA4#..LHD..3FC197708-198107

57161CROSSMEMBER, FRONT

main57161-14903iTA40197708-197908

sub57161-14904

sub57113-14060

main57161-14904iTA4#197908-198107

58102BAFFLE SUB-ASSY, RADIATOR SIDE, RH

main53202-14050iTA40197708-197908

sub53202-14090

main53202-14051iTA4#197908-198107

sub53202-14091

main53202-14091iTA40..4DS..(DLX,GL)..GEN198008-198107

W/URETHANE BUMPER

58103BAFFLE SUB-ASSY,RADIATOR SIDE, LH

main53203-14100iTA40197708-197908

main53203-14101iTA4#197908-198107

sub53203-14151

main53203-14151iTA40..4DS..(DLX,GL)..GEN198008-198107

W/URETHANE BUMPER

9017908146

main90179-08146

9046708008

main90467-08008

9095001025

main90950-01025

9095001065

main90950-01065

18 parts on this diagram · 2 diagrams in section
