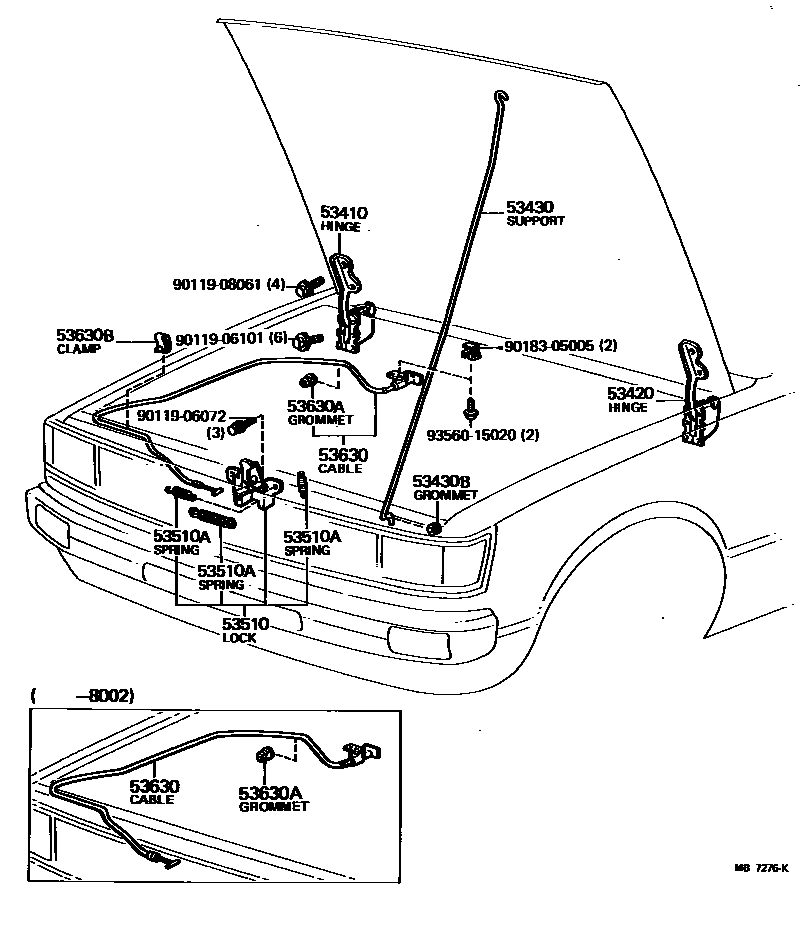

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-14040iTA4#197708-198107

53420HINGE ASSY, HOOD, LH

main53410-14040iTA4#197708-198107

53430SUPPORT ASSY, HOOD

main53451-14020iTA4#197708-198107

53430BGROMMET(FOR HOOD SUPPORT)

main90480-15002iTA4#197708-198107

53510LOCK ASSY, HOOD

main53510-14070iTA40..RHD197708-197908

main53510-14071iTA4#..RHD197908-198107

main53510-14080iTA40..LHD197708-197908

main53510-14081iTA4#..LHD197908-198107

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09007iTA4#197708-198107

WD=0.9

main90506-10487iTA40197708-197908

WD=1.0

main90506-20008iTA4#197708-198107

WD=2.0,CW=17,WD=2.3

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-14100iTA40..RHD197708-197908

main53630-14101iTA4#..RHD197908-198107

main53630-14110iTA40..LHD197806-197908

main53630-14110iTA40..LHD..EUG197708-197806

WEST GERMANY SPEC

main53630-14111iTA4#..LHD197908-198107

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main90480-15001iTA4#197708-198002

main90480-15194iTA4#198002-198107

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90463-10338iTA4#197708-198107

9011906072

main90119-06072

9011906101

main90119-06101

9011908061

main90119-08061

9018305005

main90183-05005

9356015020

main93560-15020

14 parts on this diagram · 1 diagram in section
