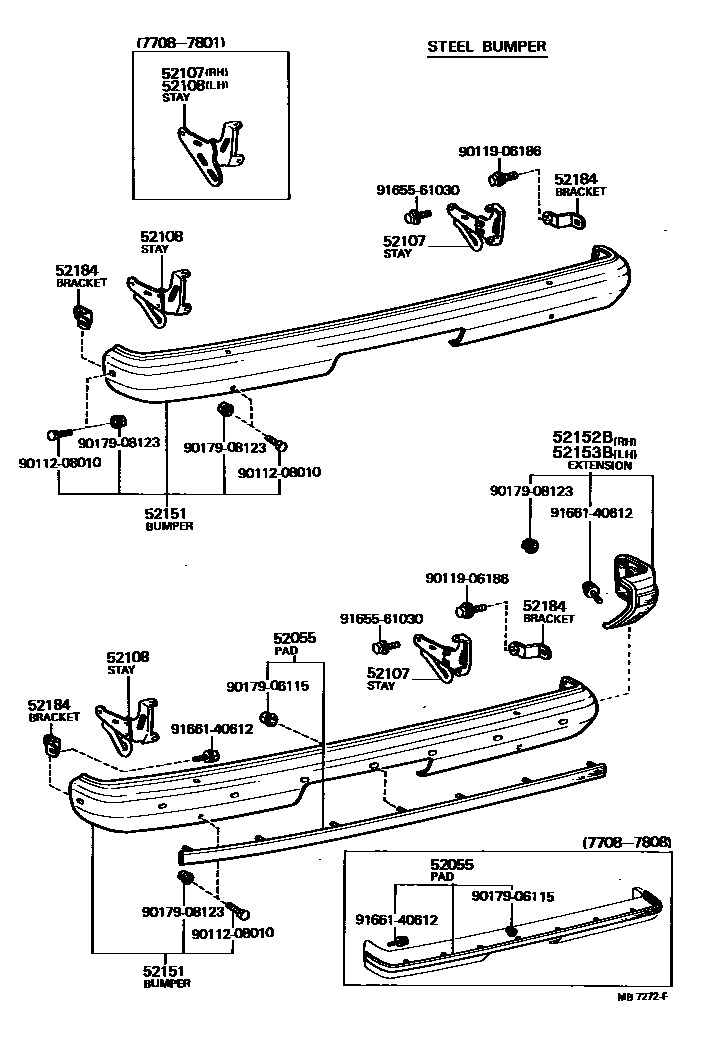

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1

52055PAD SUB-ASSY, REAR BUMPER

main52055-19065iTA40197708-197808

main52055-19066iTA40197808-197908

main52055-19067iTA4#197908-198107

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-14030iTA40..SED197708-197801

main52015-14031iTA40..SED197801-197908

main52015-14033iTA4#..SED197908-198107

main52015-15010iTA40..WG197708-197908

main52015-15020iTA4#..WG197908-198107

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-14030iTA40..SED197708-197801

main52016-14031iTA40..SED197801-197908

main52016-14033iTA4#..SED197908-198107

main52016-15010iTA40..WG197708-197908

main52016-15020iTA4#..WG197908-198107

52151BUMPER ASSY, REAR

main52151-19355iTA40..RHD..SED;TA40..LHD..SED..EUG;TA40..LHD..SED..GEN197708-197908

sub52151-19835

main52151-19356iTA40..SED..(DLX,STD)..GEN;TA40..LHD..SED..(DLX,STD)..EUG197908-198107

sub52151-19885

main52151-19365iTA40..RHD..SED;TA40..LHD..SED..EUG;TA40..LHD..SED..GEN197708-197808

W/BUMPER PAD

sub52151-80004

main52151-19366iTA40..RHD..SED;TA40..LHD..SED..EUG;TA40..LHD..SED..GEN197808-197908

W/BUMPER PAD

sub52151-19845

main52151-19367iTA4#..SED197908-198107

W/BUMPER PAD

sub52151-19895

main52151-19375iTA40..RHD..SED;TA40..LHD..SED..EUG;TA40..LHD..SED..GEN197708-197908

*LLP

sub52151-19855

main52151-19385iTA40..SED197708-197808

W/BUMPER PAD,*LLP

sub52151-19387

main52151-19386iTA40..SED197808-197908

W/BUMPER PAD,*LLP

sub52151-19865

main52151-19435iTA40..WG..GEN;TA40..WG..EUG197708-197908

sub52151-80007

main52151-19445iTA40..WG197708-197808

W/BUMPER PAD

sub52151-80008

main52151-19446iTA40..WG197808-197908

W/BUMPER PAD

sub52151-80009

main52151-19615iTA40..LHD..WG;TA40..RHD..WG..GEN197908-198107

sub52151-80005

main52151-19625iTA4#..WG197908-198107

W/BUMPER PAD

sub52151-80006

52152BEXTENSION, REAR BUMPER, RH

main52106-19185iTA4#..SED197908-198107

main52106-19195iTA4#..WG197908-198107

main52405-19075iTA40197808-197908

52153BEXTENSION, REAR BUMPER, LH

main52107-19215iTA4#..SED197908-198107

main52107-19225iTA4#..WG197908-198107

main52406-19065iTA40197808-197908

52184BRACKET, REAR BUMPER SIDE MOUNTING

main52185-14030iTA40..SED197708-197908

9011208010

main90112-08010

9011906186

main90119-06186

9017906115

main90179-06115

9017908123

main90179-08123

9165561030

main91655-61030

9166140612

main91661-40612

13 parts on this diagram · 5 diagrams in section
