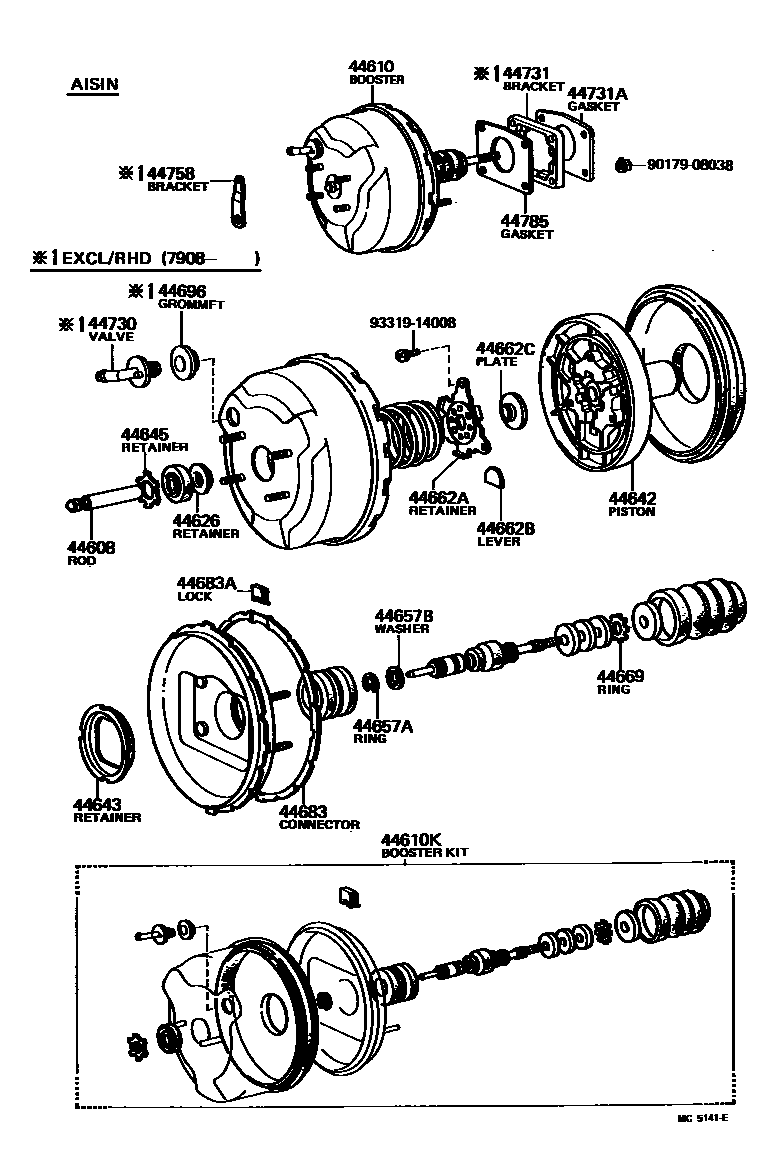

BRAKE BOOSTER & VACUUM TUBE

0001 1 0003 1 0004 1 0005 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-30050iTA4#197708-198107

AISIN

sub44606-35100

main44608-14040iTA40197708-198107

JKC

44610BOOSTER ASSY, BRAKE

main44610-14291iTA4#..LHD197708-198107

main44610-14430iTA4#..RHD197908-198107

main44610-22240iTA40..RHD197708-197908

44610KBOOSTER KIT, BRAKE

main04443-14170iTA4#..RHD197908-198107

main04443-14240iTA4#..LHD197708-198107

AISIN

main04443-14250iTA4#..LHD..EUG197708-198107

JKC

main04443-22170iTA40..RHD197708-197908

44626RETAINER, BOOSTER ROD CUP

main44626-60010iTA40..LHD197708-198107

AISIN

44642PISTON, BRAKE BOOSTER

main44642-14170iTA40..LHD197708-198107

AISIN

main44642-20140iTA40197708-198107

JKC

44643RETAINER, DIAPHRAGM

main44643-60010iTA40..LHD197708-198107

AISIN

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iTA40..LHD197708-198107

AISIN

main44645-22020iTA4#..LHD..EUG197708-198107

JKC

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iTA40..LHD197708-198107

AISIN

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iTA40..LHD197708-198107

AISIN

44662ARETAINER, REACTION, NO.2

main44662-20100iTA40..LHD197708-198107

AISIN

44662BLEVER, REACTION

main44661-60010iTA40..LHD197708-198107

AISIN

sub44661-35100

44662CPLATE, REACTION, NO.1

main44653-20150iTA40..LHD197708-198107

AISIN

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iTA40..LHD197708-198107

AISIN

44683CONNECTOR, BOOSTER BODY

main44682-20150iTA40..LHD197708-198107

AISIN

44683ALOCK, CONNECTOR

main44683-20100iTA40..LHD197708-198107

AISIN

44696GROMMET, CHECK VALVE

main90480-24439iTA4#..LHD197708-198107

AISIN

main90480-24517iTA4#..LHD..EUG197708-198107

JKC

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20010iTA4#..RHD197908-198107

main44730-20060iTA4#..LHD197708-198107

AISIN

main44730-22090iTA4#..LHD..EUG197708-198107

JKC

main44730-30010iTA40..RHD197708-197908

JKC

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-14030iTA40..LHD197708-197908

sub44731-20090

main44731-20090iTA4#..LHD197908-198107

44731AGASKET, BRAKE BOOSTER BRACKET

main44785-20030iTA4#..LHD197812-198107

main44785-22010iTA40..LHD197708-197801

sub44785-30020

main44785-30020iTA40..LHD197801-197812

44758BRACKET, VACUUM CHECK VALVE

main44758-22030iTA4#..LHD197708-198107

44785GASKET, BRAKE BOOSTER

main44785-20030iTA4#197812-198107

main44785-22010iTA40197708-197801

sub44785-30020

main44785-30020iTA40197801-197812

9017908038

main90179-08038

9331914008

main93319-14008

23 parts on this diagram · 4 diagrams in section
