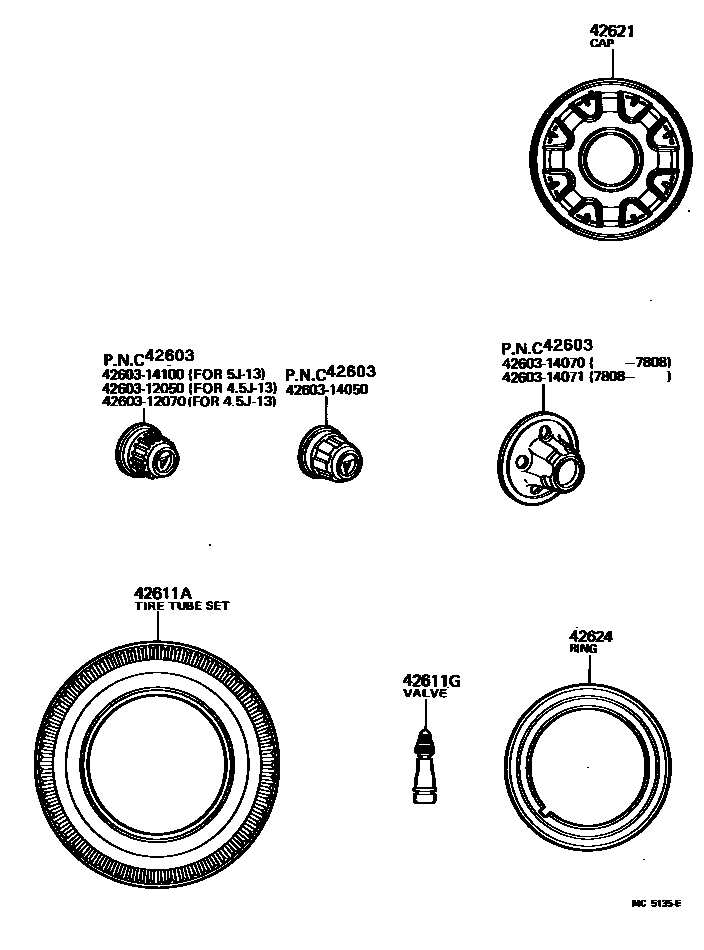

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050×4iTA40..SED..(DLX,STD)197708-197809

4.5J-13

main42603-12070×4iTA40..SED..(DLX,STD)197809-198107

4.5J-13

main42603-14050×4iTA40..EUR197708-197903

AUSTRIA SPEC

sub42603-22100

main42603-14070×4iTA40..GL197708-197808

main42603-14071×4iTA40..LHD..MTM..(GL,ST)..GEN197908-198107

main42603-14100×4iTA4#..SED..(DLX,STD)..EUR197708-198107

5J-13

42611ATIRE TUBE SET OR TUBELESS TIRE

main42652-14140×4iTA4#197708-198107

165SR13,STEELRADIAL

main42652-14290×4iTA40197903-198107

165SR13,YOKOHAMA,T/L,HOLLAND

main42652-22080×4iTA40197708-197908

6.45-13-4,T/L,WSW

main42652-22090×4iTA40197708-198107

6.45-13-4,BLACK,T/L

main42652-22240×4iTA40197708-197908

175SR14,T/L,AUSTRIA SPEC

main98021-64133×4iTA40197708-198107

6.45-13-6,BLACK,W/T

main98511-64133×4iTA40197708-198107

6.45-13-6,BLACK,T/L

main98513-64133×4iTA40197708-197908

6.45-13-6,T/L,WSW

main98921-64132×4iTA40197708-198107

6.45-13-4,W/T

main98938-65130×4iTA40197708-198107

165SR13,W/T

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iTA4#197708-198107

42621CAP, WHEEL

main42621-14140×4iTA40..WG197708-197710

main42621-14141×4iTA40..WG197710-197908

42624RING, WHEEL CAP

main42624-14023×4iTA40197808-198008

sub42624-14024

4260312050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050

4260312070ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12070

4260314050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14050

4260314070ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14070

4260314071ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14071

4260314100ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14100

11 parts on this diagram · 2 diagrams in section
