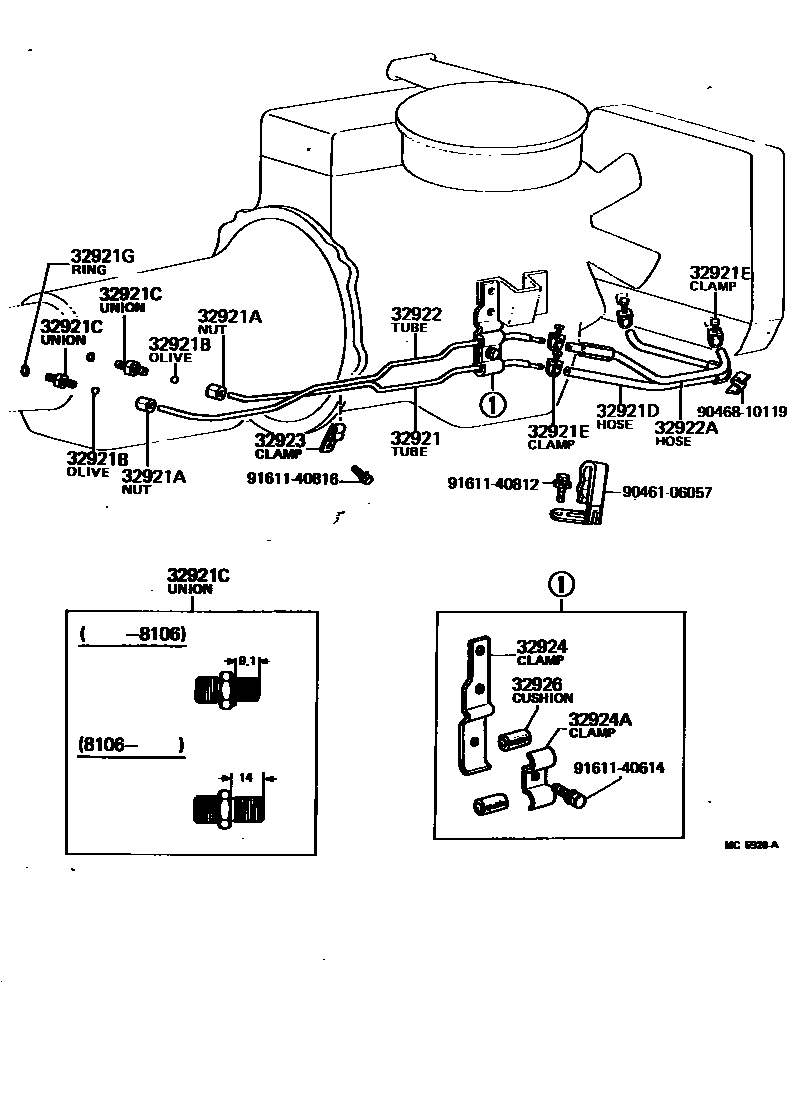

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-12030iTA4#..3FC197708-198011

main32921-20140iTA4#..3FC198011-198107

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-13041iTA4#..3FC197708-198107

32921BOLIVE(FOR OIL COOLER TUBE)

main96395-71400iTA4#..3FC197708-198107

32921CUNION(FOR OIL COOLER TUBE)

main90404-13003iTA4#..3FC198106-198107

main90404-13265iTA4#..3FC197708-198106

32921DHOSE(FOR OIL COOLER INLET)

main32941-14012iTA40..3FC197708-197809

L=790

sub32941-14013

main32941-14013iTA4#..3FC197809-198107

L=790

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-01075iTA40..3FC197708-197803

sub90460-14085

main90460-14085iTA4#..3FC197803-198107

sub90460-20004

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iTA4#..3FC197708-198107

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-12030iTA4#..3FC197708-198011

main32922-20140iTA4#..3FC198011-198107

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-14012iTA4#..3FC197708-198107

L=590

sub32942-14013

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90461-08039iTA4#..3FC197708-198107

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-14010iTA4#..3FC197708-198107

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90462-12085iTA4#..3FC197708-198107

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iTA4#..3FC197708-198107

L=25,ID=8

9046106057

main90461-06057

9046810119

main90468-10119

9161140614

main91611-40614

9161140812

main91611-40812

9161140816

main91611-40816

18 parts on this diagram · 1 diagram in section
