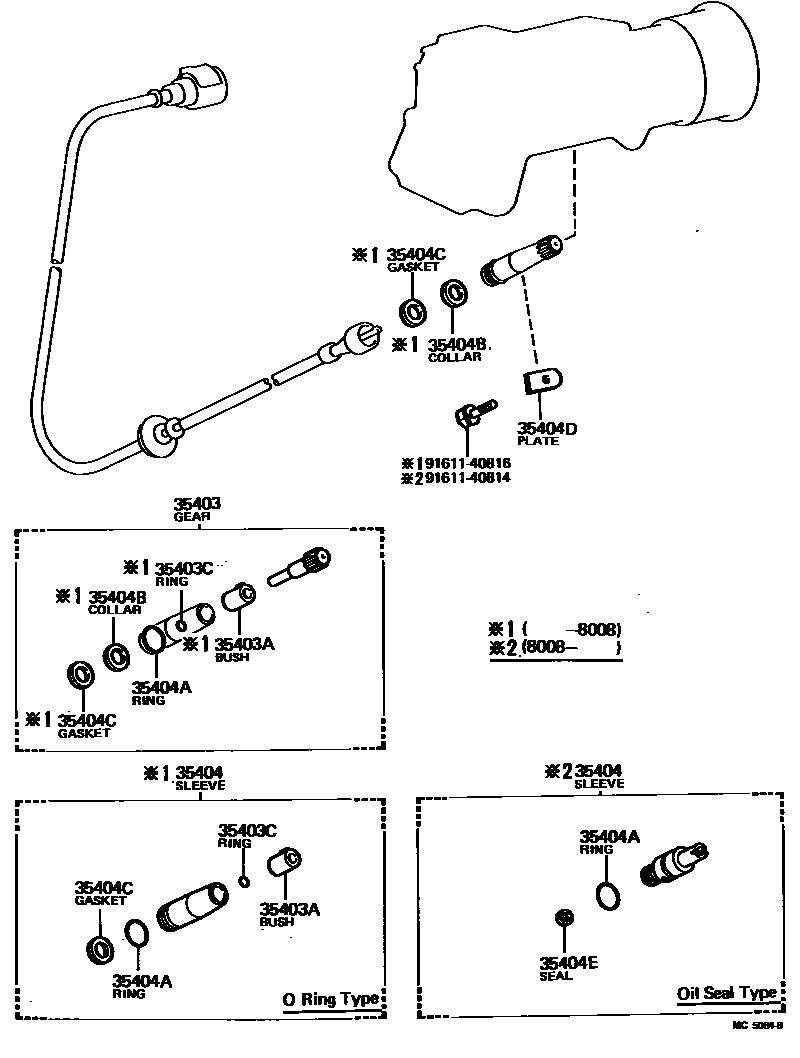

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29065iTA47..3FC197908-198107

N=20

main33403-39036iTA40..LHD..SED..3FC..DLX..EUG197708-197903

N=17

main33482-29025iTA40..WG..3FC..EUG197708-198107

N=22

main33482-39015iTA40..3FC197708-198107

N=21

35403ABUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90386-09078iTA4#..3FC197708-198008

35403CRING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)

main90301-09017iTA4#..3FC197708-198008

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iTA4#..3FC198008-198107

main33404-39016iTA4#..3FC197708-198008

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iTA4#..3FC197708-198107

35404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (ATM)

main90201-07069iTA4#..3FC197708-198008

35404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)

main90303-06017iTA4#..3FC197708-198008

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30010iTA4#..3FC197708-198008

main33485-30020iTA4#..3FC198008-198107

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iTA4#..3FC198008-198107

9161140814

main91611-40814

9161140816

main91611-40816

11 parts on this diagram · 1 diagram in section
