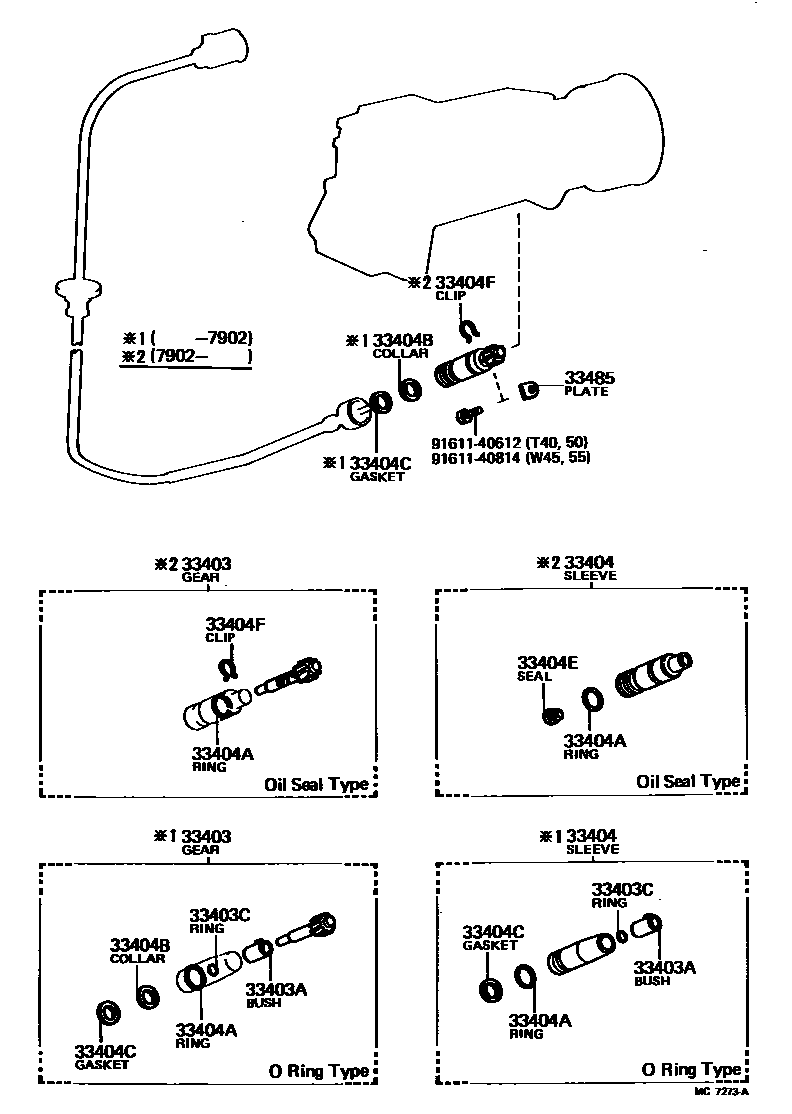

SPEEDOMETER DRIVEN GEAR (MTM)
33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
N=21
N=21,DIFF R=4.100
N=20
N=20,MARK 20:6,N=20
N=21,DIFF R=4.100
N=21
N=19,MARK 19:6,N=19
N=32,MARK 32:10,N=32
N=33,MARK 33:10,N=33
33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)
33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)
33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
OIL SEAL TYPE
O RING TYPE
33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)
33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)
33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
9161140612
main91611-40612
9161140814
main91611-40814
12 parts on this diagram · 1 diagram in section
