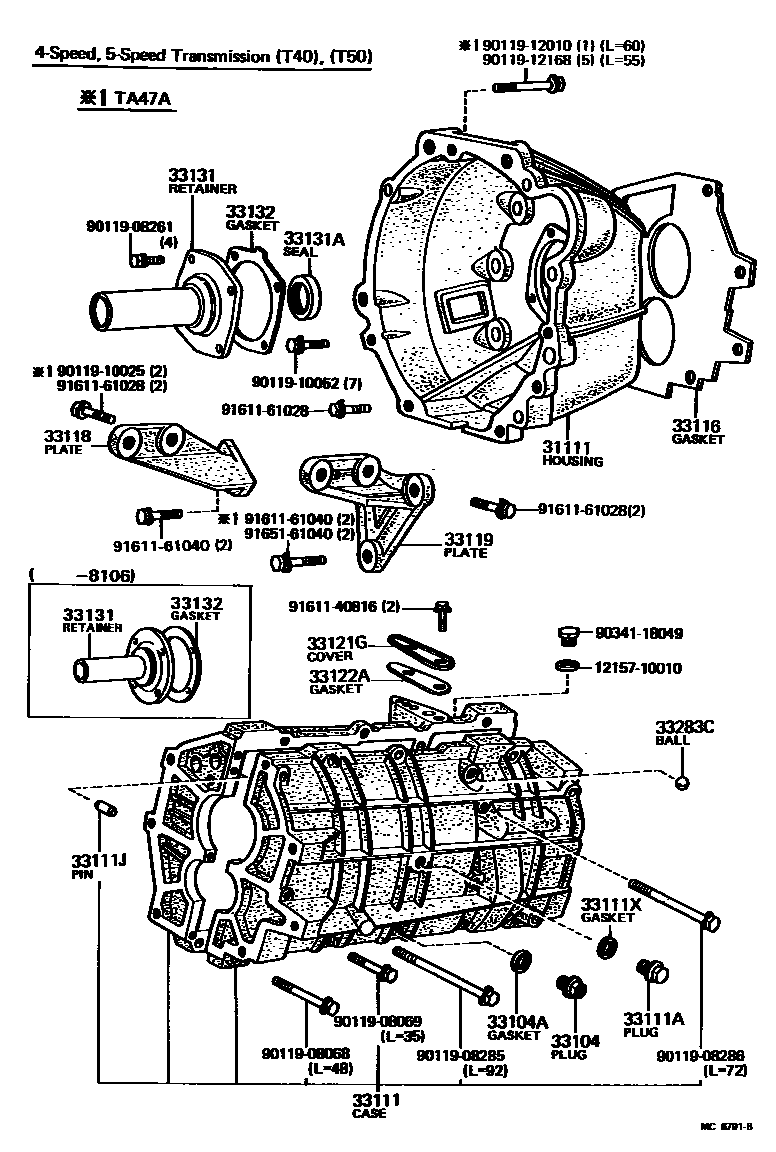

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0003 1

31111HOUSING, CLUTCH

main31111-14040iTA40..MTM197708-198008

main31111-14050iTA40..4F..SDN197801-198008

main31111-14070iTA40..MTM198106-198107

main31111-20160iTA47..MTM..EUG198008-198107

main31111-20180iTA40..MTM198008-198106

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iTA47..MTM..EUG198008-198107

main90341-18081iTA40..MTM197708-198107

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iTA4#..MTM197708-198107

33111CASE, MANUAL TRANSMISSION

main33101-14030iTA40..MTM197708-198106

sub33101-14020

sub90341-18006

sub90430-18008

main33101-14040iTA47..MTM..SDN198106-198107

main33101-22010iTA47..MTM..EUG198008-198107

sub33101-22020

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iTA4#..MTM197708-198107

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08030iTA40..MTM197708-198107

L=16,OD=8

sub90250-08046

main90250-12002iTA47..MTM..EUG198008-198107

L=16,OD=12,L=16,D=12

main90250-12146iTA47..MTM..EUG198008-198107

L=17,OD=12,L=17,D=12

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iTA4#..MTM197708-198107

33116GASKET, MANUAL TRANSMISSION CASE

main33116-14010iTA40..MTM197708-198106

main33116-14020iTA40..MTM198106-198107

33118PLATE, STIFFENER, RH(MTM)

main33118-12020iTA40..MTM197708-197908

main33118-14010iTA4#..MTM197908-198107

33119PLATE, STIFFENER, LH(MTM)

main33119-14040iTA4#..MTM197708-198107

33121GCOVER, MANUAL TRANSMISSION CASE

main33121-14010iTA40..MTM197708-198107

33122AGASKET, MANUAL TRANSMISSION CASE COVER

main33122-14010iTA40..MTM197708-198107

33131RETAINER, BEARING, FRONT(MTM)

main33131-14010iTA40..MTM197708-198106

main33131-14020iTA40..MTM198106-198107

main33131-22020iTA47..MTM..EUG198008-198107

sub33131-22021

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-25003iTA40..MTM197803-198107

main90311-25141iTA40..MTM197708-197803

sub90311-25003

main90311-30115iTA47..MTM..EUG198008-198107

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-14010iTA40..MTM197708-198106

main33132-14020iTA40..MTM198106-198107

main33132-22010iTA47..MTM..EUG198008-198107

33283CBALL, REVERSE RESTRICT

main90360-10003iTA47..MTM..SDN197708-198107

1215710010GASKET, DRAIN PLUG(FOR OIL STRAINER COVER)

main12157-10010

9011908068

main90119-08068

9011908069

main90119-08069

9011908261

main90119-08261

9011908285

main90119-08285

9011908286

main90119-08286

9011910025

main90119-10025

9011910052

main90119-10052

9011912010

main90119-12010

9011912168

main90119-12168

9034118049

main90341-18049

9161140816

main91611-40816

9161161028

main91611-61028

9161161040

main91611-61040

9165161040

main91651-61040

31 parts on this diagram · 2 diagrams in section
