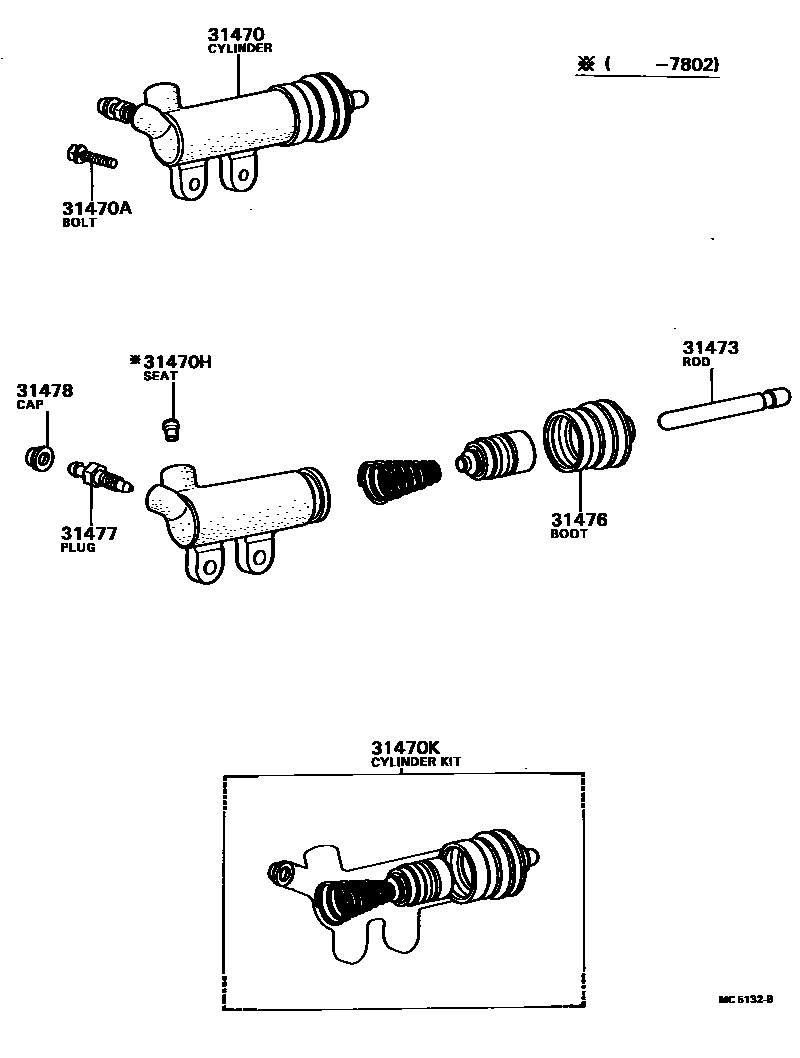

CLUTCH RELEASE CYLINDER

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14020iTA47..MTM..EUG197708-198101

sub31470-14021

main31470-14021iTA47..5F..EUG198101-198107

sub31470-20190

main31470-20150iTA47..MTM..SDN198008-198101

sub31470-20151

main31470-20151iTA40..MTM198101-198107

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825iTA4#..MTM197708-198107

*8-1.25PX25-25

sub91611-B0825

31470HSEAT, UNION(FOR CLUTCH RELEASE CYLINDER)

main90410-03015iTA40..MTM197708-197802

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-22020iTA4#..MTM198101-198107

sub04313-12030

main04313-30100iTA4#..MTM197708-198101

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14010iTA4#..MTM197708-198101

main31473-20030iTA47..MTM..SDN198008-198101

main31473-20031iTA40..MTM198101-198107

main31473-22010iTA47..5F..EUG198101-198107

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iTA4#..MTM198101-198107

main31476-30040iTA4#..MTM197708-198101

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iTA4#..MTM197708-198107

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iTA4#..MTM197708-198107

8 parts on this diagram · 1 diagram in section
