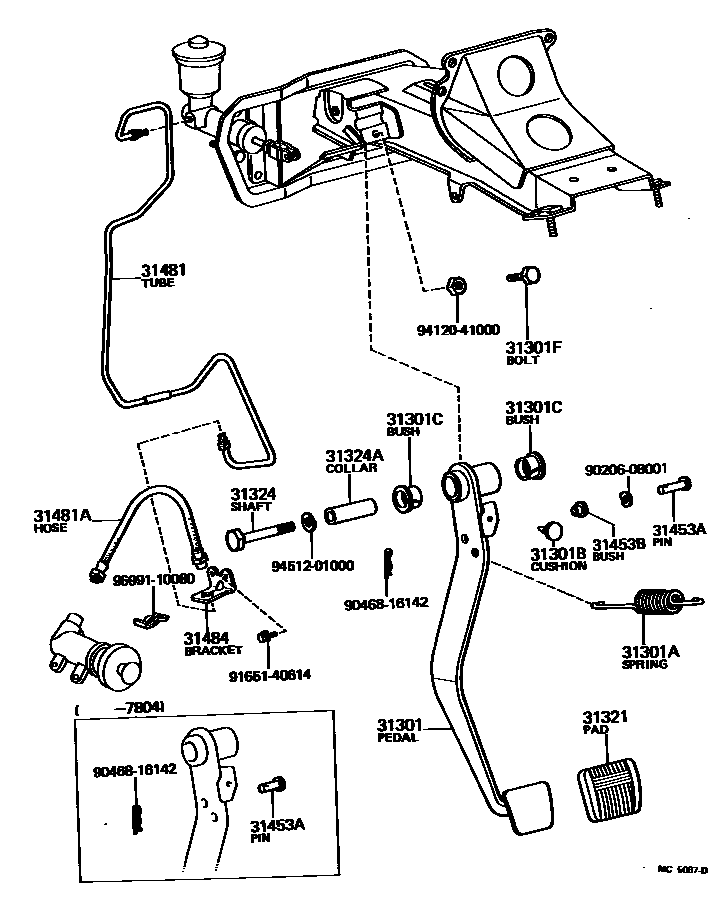

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-14011iTA40..RHD..MTM197708-197804

main31301-14012iTA40..RHD..MTM197804-197908

main31301-14013iTA4#..RHD..MTM197908-198107

main31301-14023iTA40..LHD..MTM197708-197804

main31301-14024iTA4#..LHD..MTM197804-198011

main31301-14025iTA4#..LHD..MTM198011-198107

31301ASPRING(FOR CLUTCH PEDAL)

main90506-14002iTA4#..MTM197708-198107

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iTA4#..MTM197708-198107

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iTA40..MTM197708-197804

main90386-13192iTA4#..MTM197804-198107

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iTA4#..MTM197708-198107

31321PAD, CLUTCH PEDAL

main31321-14010iTA4#..MTM197708-198107

31324SHAFT, CLUTCH PEDAL

main90101-10039iTA4#..MTM197708-198107

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iTA4#..MTM197708-198107

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08001iTA40..MTM197708-197804

main90240-08006iTA4#..MTM197804-198008

L=23.5

main90240-08041iTA4#..MTM198008-198107

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iTA4#..MTM197804-198107

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-14023iTA4#..LHD..MTM197708-198107

main31481-14050iTA4#..RHD..MTM197708-198107

31481AHOSE, CLUTCH, NO.1

main96940-31244iTA40..MTM197708-197902

sub96940-32404

main96940-32404iTA4#..MTM197902-198107

sub96940-32406

31484BRACKET, FLEXIBLE HOSE(FOR CLUTCH)

main31484-14050iTA4#..MTM197708-198107

9020608001

main90206-08001

9046816142

main90468-16142

9165140614

main91651-40614

9412041000

main94120-41000

9451201000

main94512-01000

9699110080

main96991-10080

19 parts on this diagram · 2 diagrams in section
