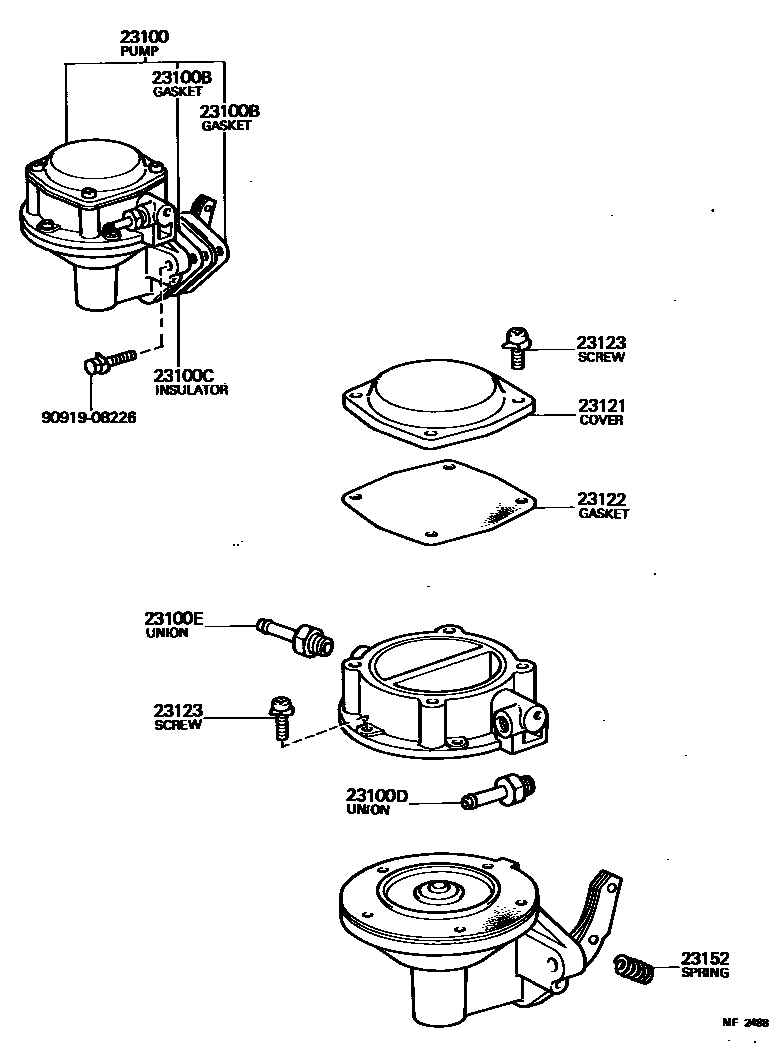

FUEL PUMP & PIPE

0001 1 0002 1

23100PUMP ASSY, FUEL

main23100-29108i2T,2TB..TA40197708-197908

main23100-29215i2TC..TA40197801-197908

main23100-29295i3TC..TA47197908-198107

sub23100-29296

main23100-29305i2T#,3T..TA4#197908-198107

sub23100-29306

23100BGASKET, FUEL PUMP

main90923-05005i2T#,3T#..TA4#197708-198107

sub90923-05019

23100CINSULATOR, FUEL PUMP

main90923-06001i2T#,3T#..TA4#197708-198107

sub90923-06009

23100DUNION, NIPPLE(FOR FUEL OUTLET)

main23116-34030i2T,2TB..TA40197708-197908

main90404-51244i2TC..TA40197801-197908

23100EUNION, NIPPLE(FOR FUEL INLET)

main90404-51244i2T#..TA40197708-197908

23121COVER, FUEL PUMP

main23121-26100i2TC..TA40197801-197908

main23121-34020i2T,2TB..TA40197708-197908

23122GASKET, FUEL PUMP COVER

main23122-26100i2TC..TA40197801-197908

main23122-34020i2T,2TB..TA40197708-197908

23123SCREW, COVER SET, NO.1

main93319-15014i2T#..TA40197708-197908

23152SPRING, ROCKER ARM

main23152-30020i2T,2TB..TA40197708-197908

9091908226

main90919-08226

10 parts on this diagram · 2 diagrams in section
