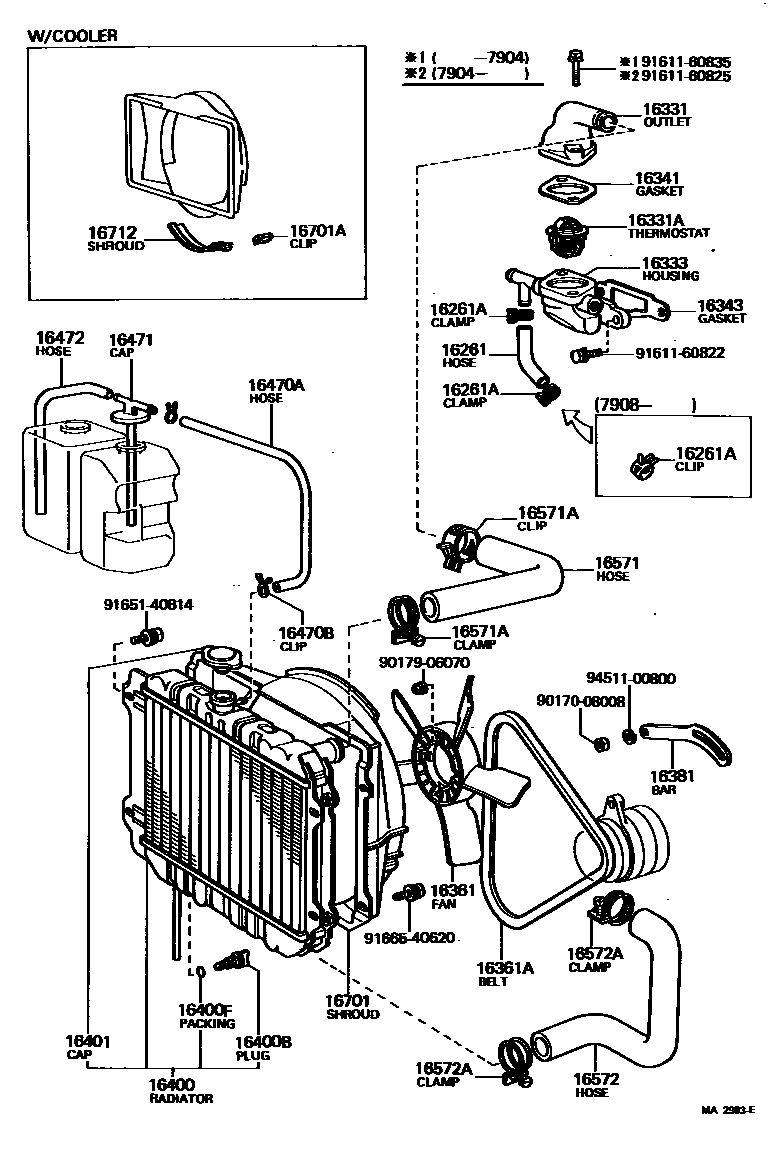

RADIATOR & WATER OUTLET

0001 1 0002 1

16261HOSE, WATER BY-PASS

main16261-25020i2T#,3T#..TA4#197708-198107

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-20004i2T#,3T#..TA4#197908-198010

sub90467-20005

main90467-20005i2T#,3T#..TA4#198010-198107

sub96134-41900

main96111-10220i2T#..TA40197708-197908

sub96112-10220

16331OUTLET, WATER

main16331-26030i2T#..TA40197708-197904

sub16331-26031

sub91611-60825

sub91611-60830

main16331-26031i2T#,3T#..TA4#197904-198107

16331ATHERMOSTAT

main90916-03036i2T#,3T#..TA4#197708-198107

*WAX 88-100,FUJI-THOMSON

sub90916-03040

main90916-03040i2T#,3T#..TA4#197708-198107

*WAX 88-100,KUZEH

sub90916-03078

16333HOUSING, WATER OUTLET

main16303-25010i2T,2TC,3T..TA4#197708-198107

main16303-26030i2TB..TA40197708-198107

main16303-26041i3TC..TA47197908-198004

sub16303-26042

main16303-26072i3TC..TA47198004-198107

sub16303-26042

16341GASKET, WATER OUTLET

main16341-38010i2T#,3T#..TA4#197810-198107

sub16341-38012

main16341-49010i2T#..TA40197708-197810

sub16341-38010

16343GASKET, WATER OUTLET HOUSING

main16343-22010i2T#,3T..TA4#197708-198107

sub16343-22011

main16343-26010i3TC..TA47197908-198107

sub16343-26011

16361FAN

main16361-26040i2T#,3T#..TA4#197708-198107

5 BLADES

16361ABELT, V(FOR FAN & ALTERNATOR)

main99321-00885i2T#,3T..TA4#197802-198107

L=885

main99331-00885i2TC..TA40197801-197908

L=885

main99331-10885i3TC..TA47197908-198107

L=885

main99521-10889i2T,2TB..TA40197708-197802

L=889

sub99321-50885

16381BAR, FAN BELT ADJUSTING

main16381-25010i2T#,3T#..TA4#197708-198107

16400RADIATOR ASSY

main16400-26160i2T#,3T#..TA4#..MTM197708-198107

sub16400-26310

main16400-26170i2T,2TC,3T#..TA4#..3FC197708-198107

main16400-26310i2T..TA40..LHD..MTM..GEN198011-198012

MIDDLE EAST SPEC

main16400-28031i2T..TA40..LHD..MTM..GEN198012-198107

MIDDLE EAST SPEC

sub16400-28051

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i2T#,3T#..TA4#197708-198107

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96710-01007i2T#,3T#..TA4#197708-198107

sub96711-19007

16401CAP SUB-ASSY, RADIATOR

main16401-36010i2T#..TA40197708-197901

sub16401-36011

main16401-36011i2T#,3T#..TA4#197901-198107

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12897i2T#,3T#..TA4#197708-198107

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2T#,3T#..TA4#197708-198107

16471CAP SUB-ASSY, RESERVE TANK

main85037-14010i2T#..TA40197708-197811

main85339-14010i2T#,3T#..TA4#197811-198107

16472HOSE, BREATHER

main85338-20010i2T#,3T#..TA4#197811-198107

16571HOSE, RADIATOR, INLET

main90916-01143i2T#,3T#..TA4#197708-198107

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i2T#,3T#..TA4#197708-198107

WATER OUTLET SIDE

sub90467-37003

main96111-10430i2T#,3T#..TA4#197708-198107

RADIATOR SIDE

16572HOSE, RADIATOR, OUTLET

main16571-26030i2T#,3T#..TA4#197708-198107

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036i2T#,3T#..TA4#197708-198012

RADIATOR OUTLET SIDE

main90460-49062i2T#,3T#..TA4#197708-198107

WATER PUMP INLET SIDE

sub96111-10490

main96111-10460i2T#,3T#..TA4#198012-198107

RADIATOR OUTLET SIDE

16701SHROUD SUB-ASSY, FAN

main16711-27020i2T..TA40..LHD..MTM..GEN198012-198107

MIDDLE EAST SPEC

main16711-28020i2T#,3T#..TA4#197708-198107

16701ACLIP(FOR FAN SHROUD)

main90468-06006i2T#,3T..TA4#197708-198107

W/COOLER

16712SHROUD, FAN, NO.2

main16712-28010i2T#..TA40197708-197806

W/COOLER

sub16712-28011

sub90468-06006

main16712-28011i2T#,3T..TA4#197806-198107

W/COOLER

9017008008

main90170-08008

9017906070

main90179-06070

9161160822

main91611-60822

9161160825

main91611-60825

9161160835

main91611-60835

9165140814

main91651-40814

9166540620

main91665-40620

9451100800

main94511-00800

33 parts on this diagram · 2 diagrams in section
