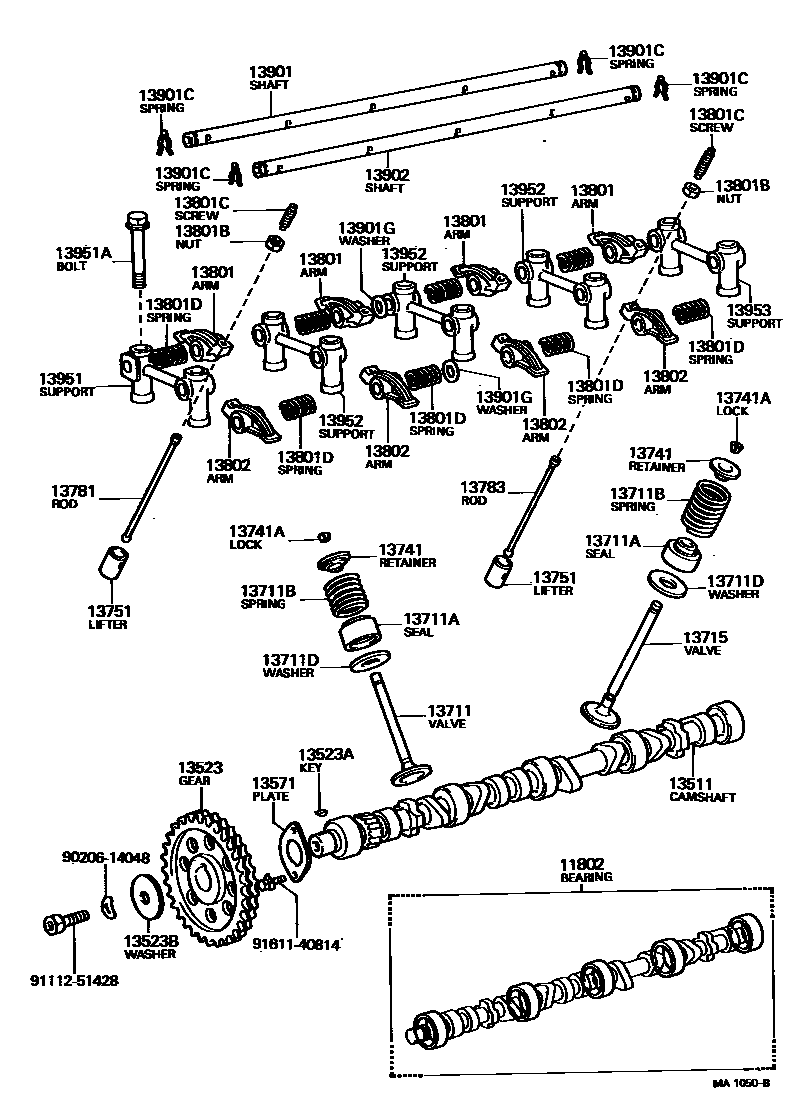

CAMSHAFT & VALVE
11802BEARING SET, CAMSHAFT
STD
U/S 0.125
U/S 0.250
13511CAMSHAFT
sub13511-25900
13523GEAR OR SPROCKET, CAMSHAFT TIMING
N=36
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523BWASHER, PLATE(FOR TIMING GEAR)
13571PLATE, CAMSHAFT THRUST
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13781ROD, VALVE PUSH
sub13781-25021
13783ROD, VALVE PUSH, NO.2
sub13783-25021
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801CSCREW, VALVE ADJUSTING
sub90913-05020
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
sub90501-14064
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901CSPRING, RETAINER(FOR VALVE ROCKER SHAFT)
13901GWASHER, ROCKER SHAFT
13902SHAFT SUB-ASSY, VALVE ROCKER, NO.2
13951SUPPORT, VALVE ROCKER, NO.1
13951ABOLT(FOR ROCKER SUPPORT SET)
13952SUPPORT, VALVE ROCKER, NO.2
13953SUPPORT, VALVE ROCKER, NO.3
9020614048
main90206-14048
9111251428
main91112-51428
9161140814
main91611-40814
32 parts on this diagram · 1 diagram in section
