MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-25040i2T,2TC..TA40197708-197809

main12311-25050i2T,2TC,3TC..TA4#197809-198001

main12311-25051i2T,3T#..TA4#198001-198107

main12311-26050i2TB..TA40197708-197809

main12311-26051i2TB..TA40197809-198001

main12311-26052i2TB..TA40198001-198107

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-25020i2T#..TA40197708-197809

main12312-25031i3T..TA47198008-198107

main12312-25040i2T#,3TC..TA4#197809-198001

main12312-25041i2T#,3TC..TA4#198001-198107

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-26040×2i2T#..TA40197809-197904

main12361-26041×2i2T#,3T#..TA4#197904-198107

main12361-28020×2i2T#..TA40197708-197804

main12361-28040×2i2T#..TA40197804-197809

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-33010i3TC..TA47..MTM197908-198107

main12371-34020i2T,2TC..TA40..3FC197708-197808

main12371-34030i3T..TA47..MTM198008-198107

12381STABILIZER, ENGINE MOUNTING

main12381-25010×2i2T#..TA40197708-197809

main12381-26011×2i2T#,3T#..TA4#197809-198107

12385ABSORBER, ENGINE MOUNTING, NO.1

main12308-28010i3T..TA47198008-198107

12385ARETAINER, SHOCK ABSORBER CUSHION

main90948-02003i3T..TA47198008-198107

12385CCUSHION, SHOCK ABSORBER

main90948-01010i3T..TA47198008-198107

12511BRACKET, ALTERNATOR, NO.1

main12511-25010i2T#,3T#..TA4#197708-198107

9011908208

main90119-08208

9017912010

main90179-12010

9020113524

main90201-13524

9161140812

main91611-40812

9161141020

main91611-41020

9161161025

main91611-61025

9165140818

main91651-40818

9165141018

main91651-41018

9411541200

main94115-41200

9418110800

main94181-10800

9451101200

main94511-01200

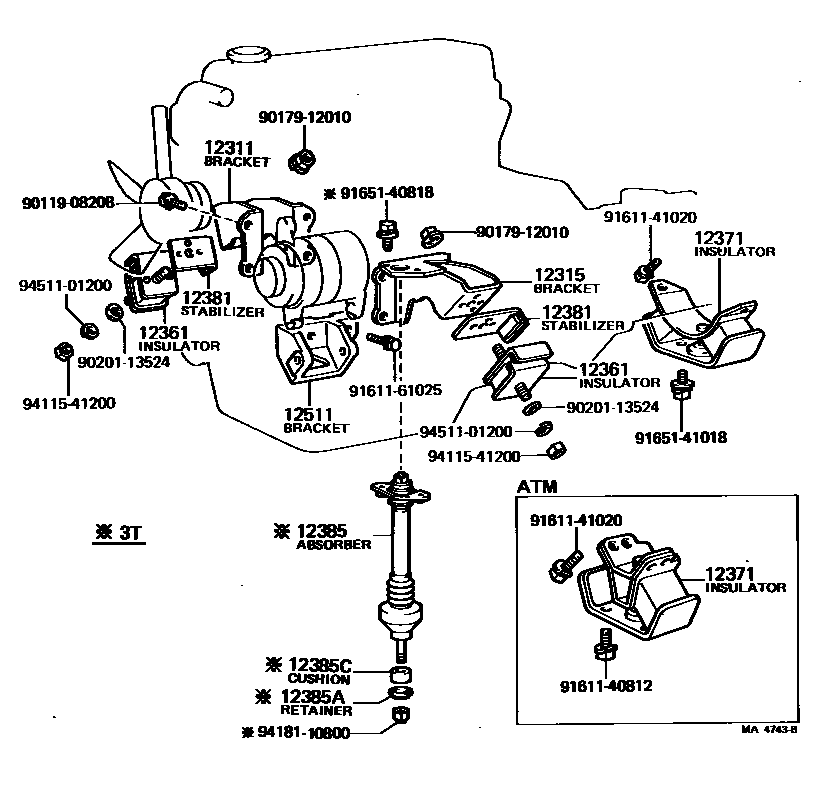

20 parts on this diagram · 1 diagram in section
