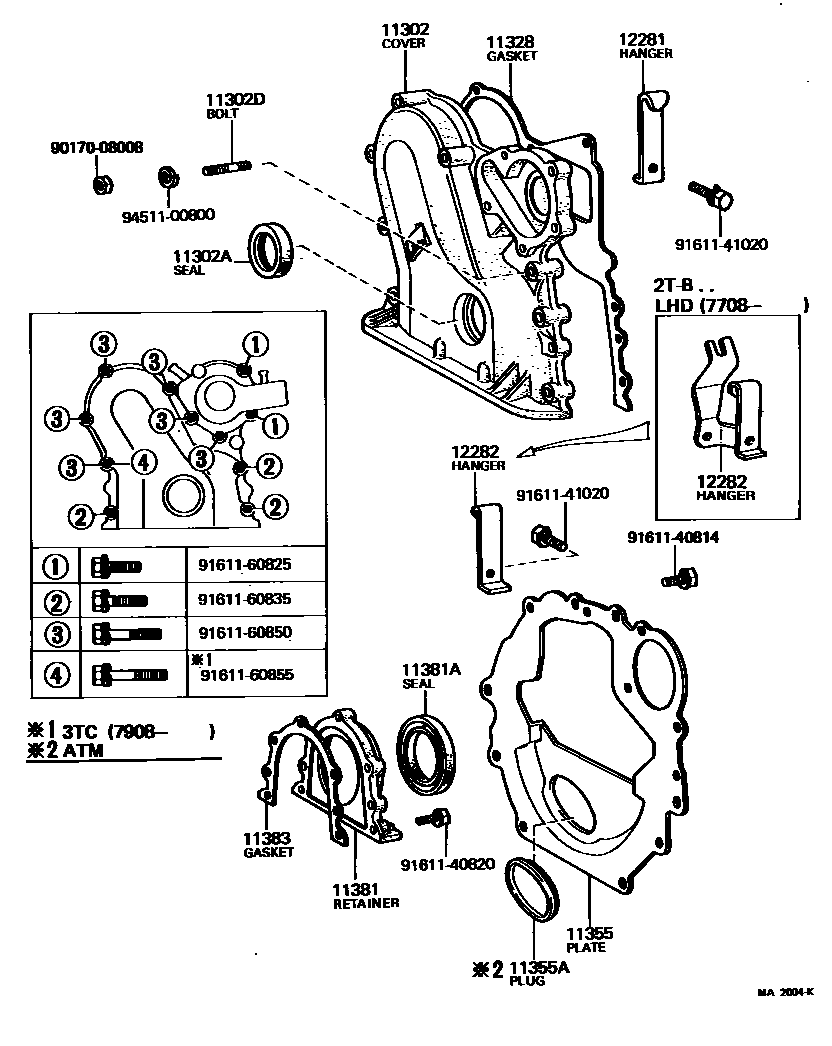

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-28010i2T#,3T#..TA4#197708-198107

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38002i2T#..TA40197708-197710

HTC3 38.5 58 11

sub90311-38013

main90311-38013i2T#,3T#..TA4#197710-198107

HTC 38.5 58 11

11302DBOLT, STUD(FOR TIMING GEAR COVER)

main90116-08057i2T#,3T#..TA4#197708-198107

L=28,S=13&13

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-25010i2T#..TA40197708-197904

sub11328-25011

main11328-25011i2T#,3T#..TA4#197904-198107

sub11328-25012

11355PLATE, REAR END

main11355-25011i2T,2TB..TA40..MTM197708-198008

sub11355-25012

main11355-25012i2T#,3T#..TA4#..MTM198008-198107

main11355-25022i2T..TA40..3FC197708-198008

sub11355-25023

main11355-25023i2T,3T#..TA4#..3FC198008-198107

main11355-26020i2TC,3TC..TA4#..4F197801-198008

main11355-26030i2TC,3TC..TA4#..3FC197801-198008

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01160i2T,2TC,3T#..TA4#..3FC197708-198107

11381RETAINER, ENGINE REAR OIL SEAL

main11381-25010i2T#,3T#..TA4#197708-198107

11381ASEAL, ENGINE REAR OIL

main90311-75113i2T#,3T#..TA4#197708-198107

HTC 75 100 13

sub90311-75004

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i2T#,3T#..TA4#197708-198107

12281HANGER, ENGINE, NO.1

main12281-26010i2T#,3T#..TA4#197708-198107

12282HANGER, ENGINE, NO.2

main12281-26010i2T,2TC,3T#..TA4#197708-198107

main12281-26020i2TB..TA40..LHD197708-198107

9017008008

main90170-08008

9161140814

main91611-40814

9161140820

main91611-40820

9161141020

main91611-41020

9161160825

main91611-60825

9161160835

main91611-60835

9161160850

main91611-60850

9161160855

main91611-60855

9451100800

main94511-00800

20 parts on this diagram · 1 diagram in section
