STANDARD TOOL

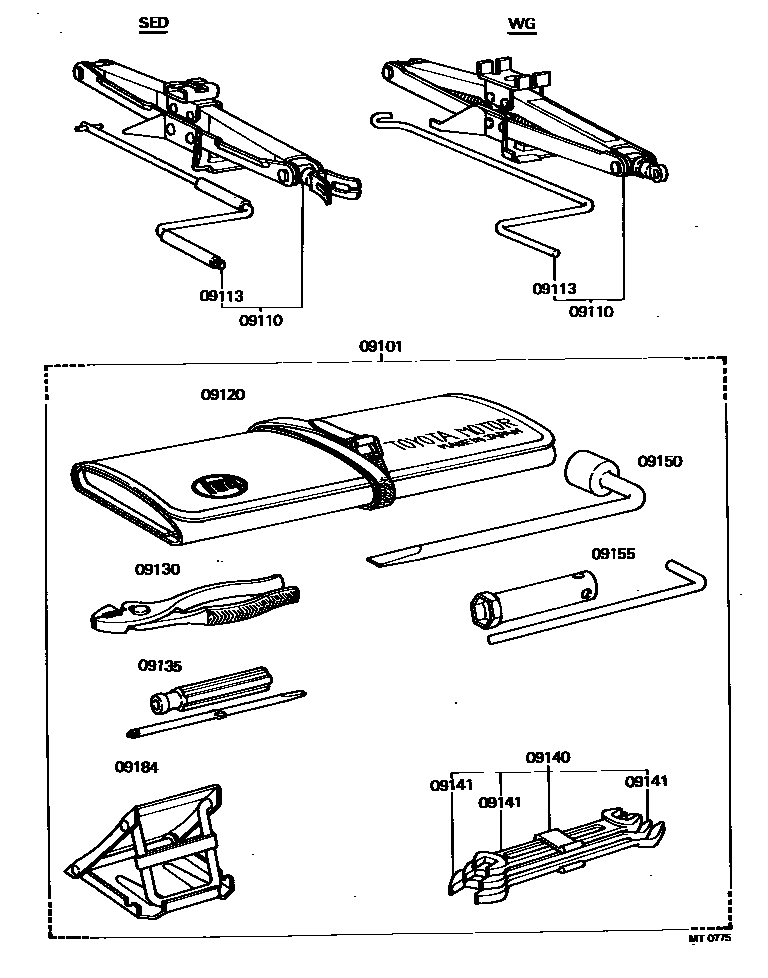

Parts diagram
09101TOOL SET, STANDARD W/O JACK
main09101-12041i197708-197908
sub09101-14110
main09101-14110i197908-198107
sub09101-21022
09110JACK ASSY
main09110-14012i197708-197908
sub09110-14013
main09110-14013i197908-198107
sub09111-14030
sub09113-14010
main09110-15010i197708-198107
sub09111-15010
09113HANDLE, JACK
main09113-14010i197708-198107
main09113-15010i197708-197810
sub09113-15011
main09113-15011i197810-198107
sub09113-12010
09120BAG, TOOL
main09120-12011i197708-198107
09130PLIERS
main09130-00010i197708-198107
sub09130-00012
09135DRIVER, SCREW
main09135-00010i197708-198107
sub99915-10700
09140SPANNER SET
main09140-12011i197708-198107
09141SPANNER
main09141-00032i197708-198107
10X12
sub99914-11012
main09141-12011i197708-198107
8X10
sub99914-10810
main09141-12020i197708-198107
14X17
sub99914-11417
09150WRENCH, HUB NUT BOX
main09150-00010i197708-197908
main09150-35020i197908-198107
sub09150-40010
09155WRENCH, SPARK PLUG
main09155-26010i197908-198107
main09155-51010i197708-197908
sub09155-26010
09184STOPPER, WHEEL
main09184-00010i197708-198107

11 parts on this diagram · 1 diagram in section
