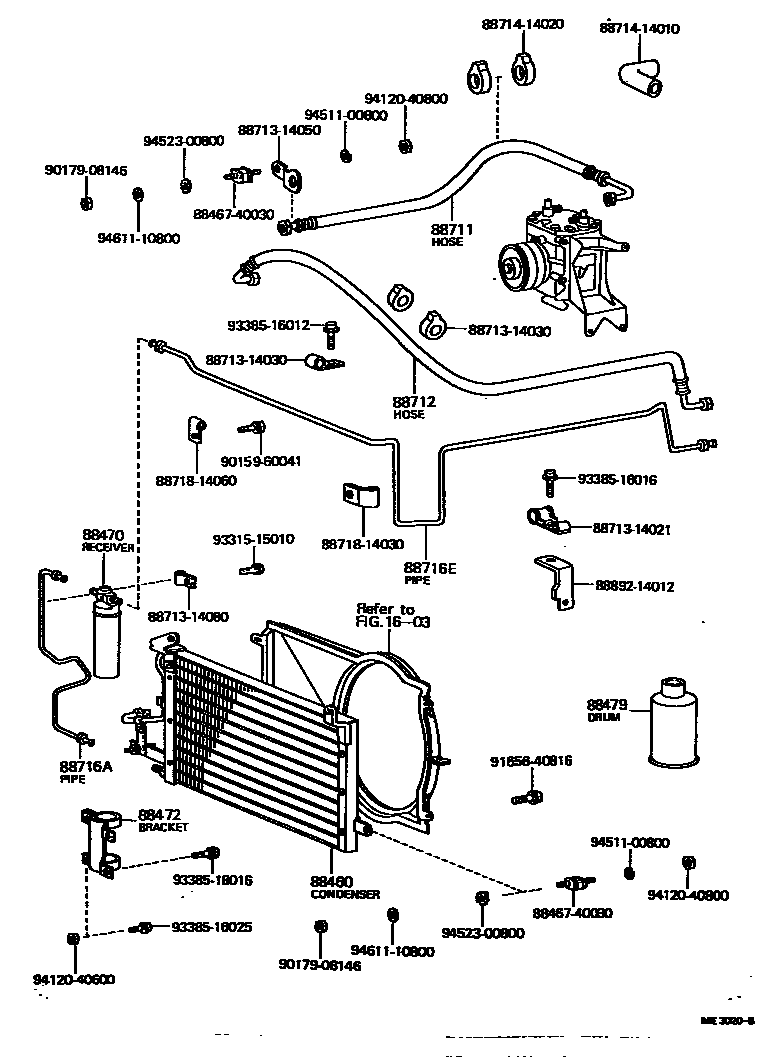

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

1603

88460CONDENSER ASSY, COOLER

main88460-14010iTA1#197012-197207

main88460-14021iTA1#197208-197401

main88460-14050iTA1#197401-197509

main88460-14070iTA14197510-197707

88470RECEIVER & DRYER ASSY, COOLER

main88470-10010iTA1#¥8,900197012-197707

sub88470-12021¥8,800

88472BRACKET, RECEIVER TANK, NO.1

main88472-14010iTA1#..RHD197012-197109

main88472-14011iTA1#..RHD197109-197207

main88472-14012iTA1#197208-197509

main88472-14020iTA1#..LHD197012-197207

main88472-14080iTA14197510-197707

main88892-14010iTA1#..RHD197012-197207

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main88434-30010iTA1#197012-197707

sub90986-02001

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-14010iTA1#197012-197509

sub88711-14011

main88711-14100iTA14¥19,600197510-197707

sub88711-14170

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-14010iTA1#..RHD197012-197509

main88712-14020iTA1#..LHD197012-197106

main88712-14021iTA1#..LHD¥19,600197106-197207

sub88712-60010

main88712-14150iTA14..LHD197510-197707

sub88712-14260

main88712-14210iTA14..RHD197510-197707

sub88712-14250

main88712-60010iTA1#..LHD197208-197509

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-14010iTA1#..RHD¥4,720197012-197207

sub88716-14011

main88716-14011iTA1#197208-197412

sub88716-14012

main88716-14012iTA1#197412-197509

main88716-14030iTA1#..LHD197012-197207

main88716-14260iTA14197510-197707

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-14020iTA1#..RHD¥13,000197012-197207

sub88716-14021

main88716-14021iTA12..RHD197208-197509

sub88716-14022

main88716-14040iTA1#..LHD197012-197207

main88716-14100iTA1#..LHD197208-197412

sub88716-14101

main88716-14101iTA1#..LHD197412-197509

main88716-14310iTA14197510-197707

8846740030CUSHION, COOLER CONDENSER, NO.1

main88467-40030

8871314021HOSE, COOLER REFRIGERANT SUCTION, NO.2

main88713-14021

8871314030HOSE, COOLER REFRIGERANT SUCTION, NO.2

main88713-14030

8871314050HOSE, COOLER REFRIGERANT SUCTION, NO.2

main88713-14050

8871314080HOSE, COOLER REFRIGERANT SUCTION, NO.2

main88713-14080

8871414010HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-14010

8871414020HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-14020

8871814030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14030

8871814060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14060

8889214012BRACKET, COOLER EVAPORATOR MOUNTING

main88892-14012

9015960041

main90159-60041¥190

9017908146

main90179-08146¥180

9165640816

main91656-40816¥140

9331515010

main93315-15010¥70

9338516012

main93385-16012¥70

9338516016

main93385-16016¥80

9338516025

main93385-16025¥90

9338518016

main93385-18016¥160

9412040600

main94120-40600¥170

9412040800

main94120-40800¥90

9451100800

main94511-00800¥100

9452300800

main94523-00800¥180

9461110800

main94611-10800¥80

32 parts on this diagram · 2 diagrams in section
