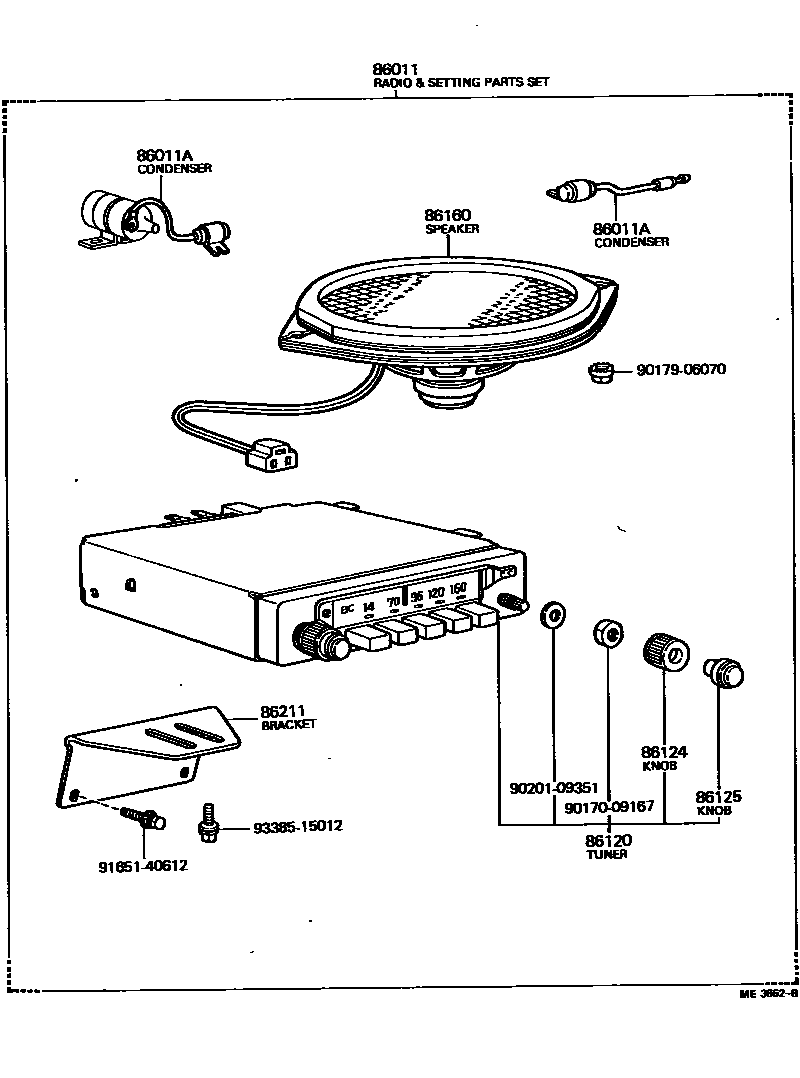

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011RADIO & SETTING PARTS SET

main86011-14010iTA1#197012-197207

AM,5-BUTTON

main86011-14011iTA1#197208-197509

AM,5-BUTTON

main86011-14030iTA1#197012-197207

AM/FM,5-BUTTON

main86011-14031iTA1#197208-197509

AM/FM,5-BUTTON

main86011-14080iTA14197510-197707

AM,5-BUTTON

main86011-14100iTA14197510-197604

AM/FM,5-BUTTON

sub86011-14101

main86011-14101iTA14197604-197707

AM/FM,5-BUTTON

86011ACONDENSER, RADIO SETTING

main90980-04007iTA1#197012-197509

;U; CONNECTOR

main90980-04011iTA1#197012-197707

PLUG CONNECTOR

86120RECEIVER ASSY, RADIO

main86120-20090iTA1#197012-197509

AM,5-BUTTON

main86120-20110iTA1#197012-197509

AM/FM,5-BUTTON

main86120-20130iTA14197510-197707

AM,5-BUTTON

main86120-20150iTA14197510-197604

AM/FM,5-BUTTON

sub86120-20151

main86120-20151iTA14197604-197707

AM/FM,5-BUTTON

86124KNOB, RADIO RECEIVER CONTROL

main86124-14020iTA1#197408-197509

main86124-14030iTA1#197408-197509

FM SELECT SW.

main86124-20020iTA1#197012-197408

sub86124-14020

main86124-20030iTA1#197012-197408

FM SELECT SW.

sub86124-14030

main86124-20040iTA14197510-197707

86125KNOB, RADIO RECEIVER SWITCH

main86125-20020iTA1#197012-197509

main86125-20040iTA14197510-197707

86160SPEAKER ASSY, FRONT NO.1

main86160-14010iTA1#197012-197509

FOR RADIO

sub86160-14070

main86160-14070iTA14197510-197707

sub86160-95010

86211BRACKET, RADIO, NO.1

main86211-14010iTA14197510-197707

main86215-14010iTA1#197012-197207

main86215-14011iTA1#197208-197509

9017009167

main90170-09167

9017906070

main90179-06070

9020109351

main90201-09351

9165140612

main91651-40612

9338515012

main93385-15012

12 parts on this diagram · 2 diagrams in section
