METER

0001 1 0002 1 0003 1 0004 1

3304

3505

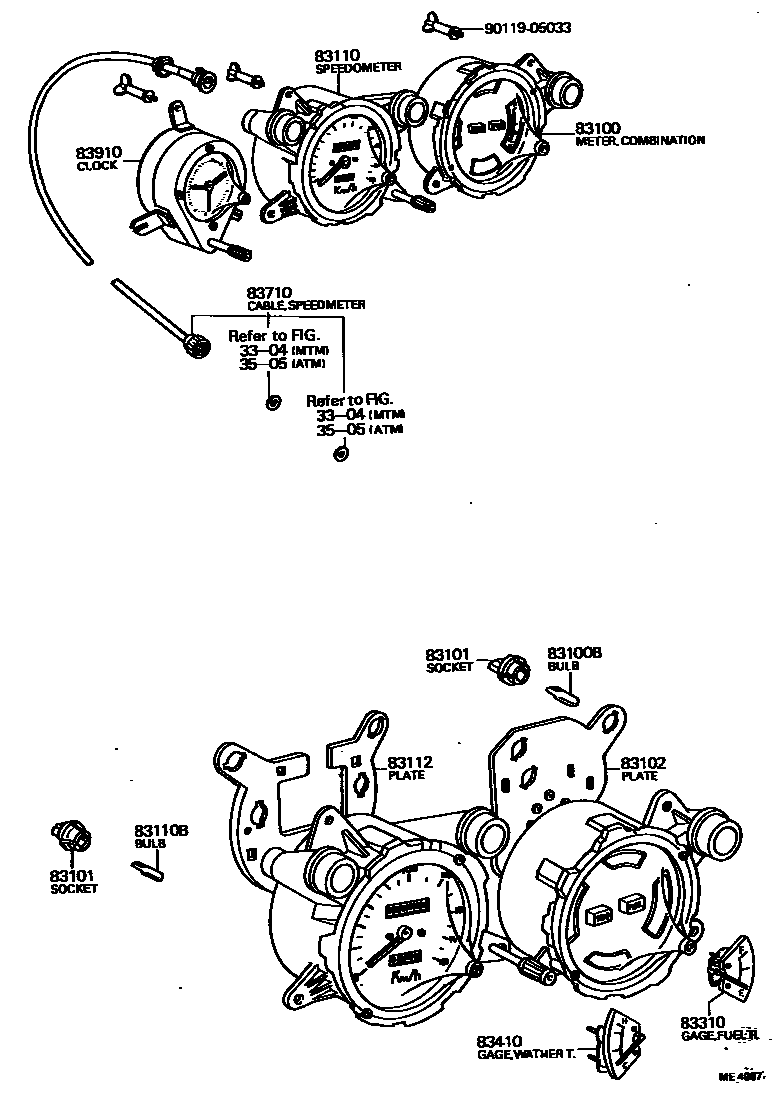

83100METER ASSY, COMBINATION

main83100-14010iTA1#..RHD197012-197207

main83100-14020iTA1#..LHD197012-197207

main83100-14330iTA14..RHD..(DLX,STD)197510-197707

KM.L/CLOCK

main83100-14340iTA14..RHD..ST197510-197707

KM.L/CLOCK

main83100-14350iTA14..LHD..(DLX,STD)197510-197707

KM.L/CLOCK

main83100-14360iTA14..LHD..ST197510-197707

KM.L/CLOCK

main83100-14370iTA14..RHD..(DLX,STD)197510-197707

MILE,L/CLOCK

main83100-14380iTA14..RHD..ST197510-197707

MILE,L/CLOCK

main83100-14390iTA14..LHD..(DLX,STD)197510-197707

MILE,L/CLOCK

main83100-14400iTA14..LHD..ST197510-197707

MILE,L/CLOCK

main83100-14410iTA14..RHD..(DLX,STD)197510-197707

KM.W/CLOCK

main83100-14420iTA14..RHD..ST197510-197707

KM.W/CLOCK

main83100-14430iTA14..LHD..(DLX,STD)197510-197707

KM.W/CLOCK

main83100-14440iTA14..LHD..ST197510-197707

KM.W/CLOCK

main83100-14450iTA14..RHD..(DLX,STD)197510-197707

MILE,W/CLOCK

main83100-14460iTA14..RHD..ST197510-197707

MILE,W/CLOCK

main83100-14470iTA14..LHD..(DLX,STD)197510-197707

MILE,W/CLOCK

main83100-14480iTA14..LHD..ST197510-197707

MILE,W/CLOCK

83100BBULB, COMBINATION METER, NO.1

main99132-12034×4iTA1#197012-197207

12V 3.4W,12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-10010×13iTA1#197303-197707

sub83101-14030

main83101-12010×12iTA1#197012-197303

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83102-14080iTA1#..RHD197012-197207

main83102-14090iTA1#..LHD197012-197207

main83247-14030iTA14..RHD..(DLX,STD)197510-197707

sub83247-14020

main83247-14040iTA14..LHD..(DLX,STD)197510-197707

main83247-14070iTA14..RHD..ST197510-197707

sub83247-14060

main83247-14080iTA14..LHD..ST197510-197707

83110SPEEDOMETER ASSY

main83110-14060iTA1#197012-197109

KM.

main83110-14061iTA1#197208-197303

KM.

main83110-14062iTA1#197303-197509

KM.

main83110-14070iTA1#197012-197207

MILE

main83110-14071iTA1#197208-197303

MILE

sub83110-14081

main83110-14072iTA1#197303-197509

MILE

sub83110-14082

main83110-14090iTA1#..RHD197109-197207

KM.

sub83110-14100

main83241-14020iTA14..DLX,STD197510-197707

KM.

main83241-14040iTA14..DLX,STD197510-197707

MILE

main83241-14070iTA14..ST197510-197707

KM.

main83241-14080iTA14..ST197510-197707

MILE

83110BBULB, SPEEDOMETER

main99132-12034×5iTA1#197012-197509

12V 3.4W

83112PLATE SUB-ASSY, SPEEDOMETER CIRCUIT

main83102-14070iTA1#197012-197303

main83102-14071iTA1#197303-197509

83310GAGE ASSY, FUEL RECEIVER

main83243-14010iTA14197510-197707

main83310-14030iTA1#197012-197207

main83310-14060iTA12..RHD197208-197509

main83310-14070iTA1#..LHD197208-197509

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-14010iTA14197510-197707

sub83244-14011

main83410-14050iTA1#197012-197207

main83410-14080iTA12..RHD197208-197509

DC.

main83410-14090iTA1#..LHD197208-197509

DC.

main83410-14100iTA12..RHD197208-197509

DF.

main83410-14110iTA1#..LHD197208-197509

DF.

83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1

main83710-19105iTA1#..LHD..MTM197012-197308

L=1700

main83710-19115iTA1#..DLX,STD197012-197308

L=1550

main83710-19125iTA12..RHD..3FC197012-197308

L=1650

main83710-19135iTA12..RHD..3FC197308-197509

L=1600

main83710-19245iTA14..RHD..3FC197510-197707

L=1400

sub83710-19395

main83710-19255iTA14..RHD..MTM197510-197707

L=1450

sub83710-19375

main83710-19265iTA14..LHD..MTM197510-197707

L=1800

sub83710-19405

main83710-19275iTA14..LHD..3FC197510-197707

L=1750

sub83710-19425

83910CLOCK ASSY

main83910-14020iTA12..3FC;TA10..LHD..2D197012-197207

main83910-14021iTA12..RHD197208-197509

main83910-14022iTA14..DLX,STD197510-197707

sub83910-19075

main83910-14040iTA12..ST197208-197509

FOR CONSOL

main83910-14041iTA14..ST197510-197707

main83910-14050iTA1#..LHD..(DLX,STD)197208-197509

9011905033

main90119-05033

14 parts on this diagram · 4 diagrams in section
