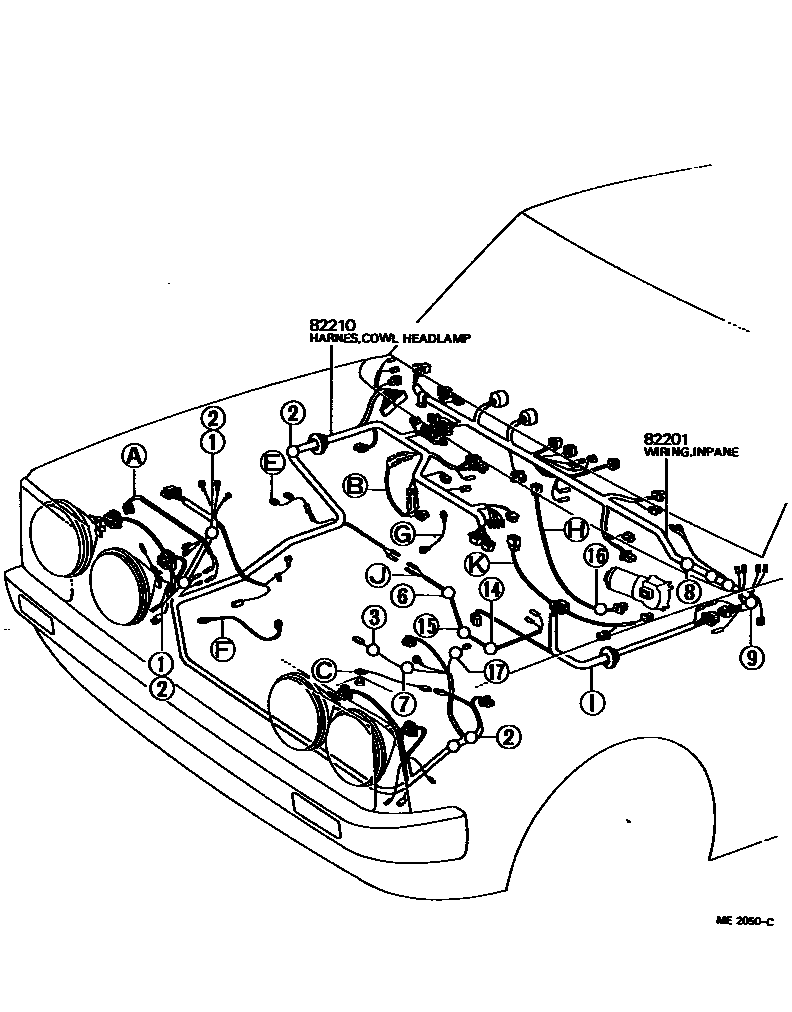

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

82201WIRING SUB-ASSY, INSTRUMENT PANEL

main82201-14110iTA1#..RHD..STD197012-197207

main82201-14111iTA12..RHD..STD197208-197401

main82201-14112iTA12..RHD..STD197401-197509

main82201-14120iTA12..RHD..DLX197012-197207

main82201-14121iTA12..RHD..DLX¥14,400197208-197401

sub82201-14111

main82201-14122iTA12..RHD..DLX¥21,600197401-197509

sub82201-14112

main82201-14140iTA1#..LHD..STD197012-197207

main82201-14141iTA12..LHD..STD197208-197401

main82201-14142iTA12..LHD..STD197401-197509

main82201-14150iTA12..LHD..DLX197012-197207

main82201-14151iTA1#..LHD..(DLX,ST)197208-197401

sub82201-14141

main82201-14152iTA1#..LHD..(DLX,ST)¥22,100197401-197509

sub82201-14142

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82210-14100iTA1#..RHD197012-197207

main82210-14101iTA12..RHD197208-197401

main82210-14102iTA12..RHD197401-197509

main82210-14110iTA1#..LHD197012-197207

main82210-14111iTA1#..LHD197208-197401

main82210-14112iTA1#..LHD197401-197501

main82210-14113iTA1#..LHD197501-197509

main82210-14350iTA14197510-197707

2 parts on this diagram · 9 diagrams in section
