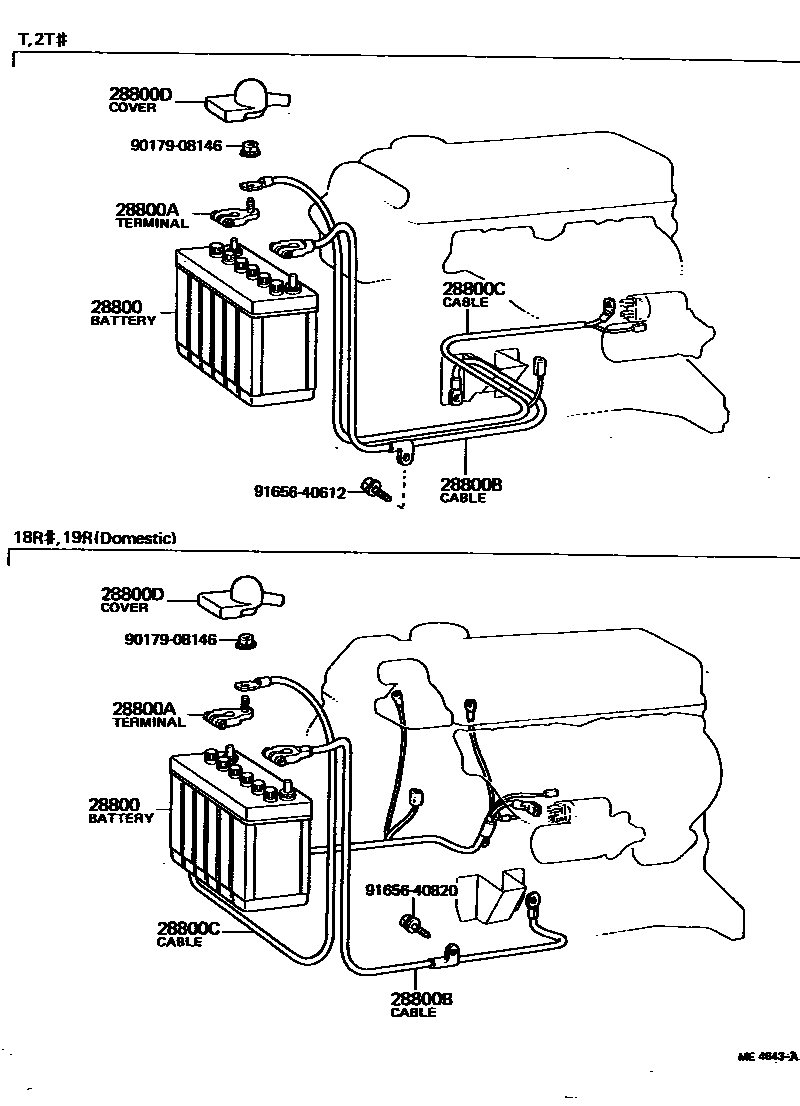

BATTERY & BATTERY CABLE

28800BATTERY

main28800-26040i2T#..TA14197702-197707

34B19L,GS,NS40ZAL

sub28800-26050

main28800-30100iT,2T#..TA1#197012-197702

GS,NS40ZL

sub28800-26040

main28800-30110iT,2T#..TA1#197012-197702

KOBE,NS40ZL

sub28800-26040

main28800-30131iT,2T#..TA1#197012-197707

55D26R,GS,N50ZL

sub28800-73010

main28800-31021iT,2T#..TA1#197012-197707

32C24L,KOBE,N40L

sub28800-31010

main28800-31031iT,2T#..TA1#197012-197707

32C24L,GS,N40L

sub28800-31021

main28800-41010iT,2T#..TA1#197208-197707

55D26L,KOBE,N50ZL

sub28800-30131

main28800-50010i2T..TA12..RHD197208-197401

46B24L,GS,NS60L

main28800-51010i2T..TA12..RHD197208-197401

46B24L,KOBE,NS60L

28800ATERMINAL, BATTERY POSITIVE

main90982-05004iT,2T#..TA1#197012-197707

FOR NS40ZL,NS60L

sub90982-05028

main90982-05005i2T#..TA12,14197012-197707

FOR N40L,N50ZL

sub90982-05030

28800BCABLE, BATTERY TO GROUND

main90982-02069iT,2T#..TA1#197012-197509

FOR NS40ZL,NS60L

main90982-02070iT,2T#..TA1#197012-197509

FOR N40L,N50ZL

main90982-02117i2T#..TA14197510-197707

FOR N40ZL

main90982-02118i2T#..TA14197510-197707

FOR N40L,N50ZL

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-14010iT,2T#..TA1#197012-197509

main82021-14040i2T#..TA14197510-197707

main82021-14060i2T#..TA14..RHD197608-197707

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12020iT,2T#..TA1#197401-197608

FOR NS40ZL,NS60L

sub82821-12030

main82821-12030iT,2T#..TA1#197401-197707

FOR N40L,N50ZL

sub82821-30080

9017908146

main90179-08146

9165640612

main91656-40612

9165640820

main91656-40820

8 parts on this diagram · 1 diagram in section
