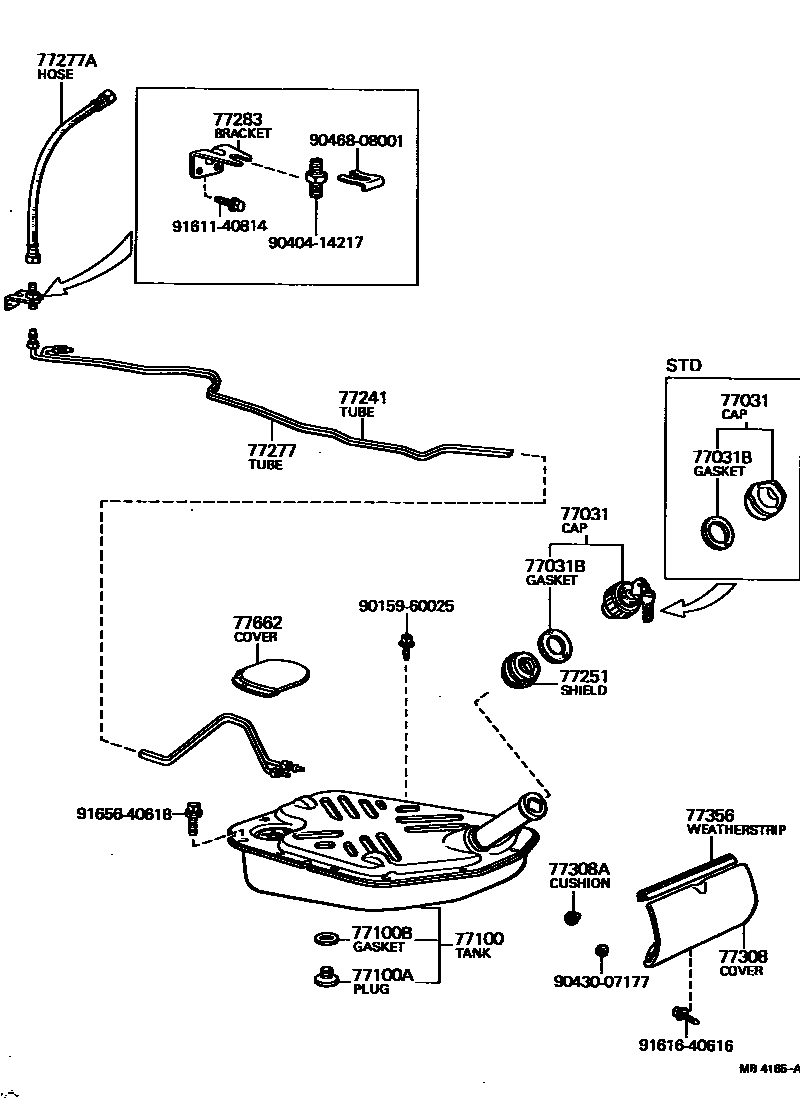

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

77031CAP ASSY, FUEL TANK

main69058-12030iTA14197510-197707

W/KEY

main77031-12061iTA1#197208-197402

W/KEY

sub77031-12062

main77031-12062iTA1#197402-197509

W/KEY

sub69058-14021

main77031-14010iTA1#197012-197207

W/KEY

main77310-12052iTA12,14..STD197208-197707

L/KEY

sub77310-12080

main77310-14010iTA1#..STD197012-197207

L/KEY

77031BGASKET (FOR FUEL TANK CAP)

main77316-12030iTA1#197208-197402

FOR W/KEY

sub77316-12031

main77316-12031iTA1#197402-197607

FOR W/KEY

main77316-12040iTA12,14..STD197208-197607

FOR L/KEY

main77316-12050iTA14197607-197707

FOR W/KEY

main77316-12060iTA14..STD197607-197707

FOR L/KEY

main77316-20010iTA1#..STD197012-197207

FOR L/KEY

main77316-40011iTA1#197012-197207

FOR W/KEY

sub77316-12020

77100TANK ASSY, FUEL

main77001-14010iTA1#197012-197207

main77001-14090iTA1#197208-197401

main77001-14091iTA1#197401-197402

sub77001-14092

main77001-14092iTA1#197402-197509

main77001-14093iTA14197510-197707

main77001-14210iTA14..LHD197606-197707

POLYETHYLENE

77100APLUG(FOR FUEL TANK)

main90105-12018iTA1#197208-197707

main90341-24036iTA1#197012-197207

77100BGASKET(FOR FUEL TANK)

main90430-12038iTA1#197208-197306

main90430-12245iTA1#197306-197707

main90430-24047iTA1#197012-197207

77241TUBE, FUEL MAIN, NO.1

main77251-14010iTA1#197012-197207

main77251-14011iTA1#197208-197401

main77251-14012iTA1#197401-197509

main77251-14050iTA14197510-197707

77251SHIELD, FUEL TANK, INLET, NO.1

main77251-10010iTA1#197012-197207

main77291-12010iTA1#197208-197707

77277TUBE, FUEL RETURN, NO.1

main77255-14070iTA14197510-197707

main77257-14010iTA1#197012-197207

main77257-14011iTA1#197208-197401

main77257-14012iTA1#197401-197509

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main90923-01109iTA1#197012-197202

L=430

main95323-07044iTA1#197202-197207

L=440

main95331-06036iTA14197510-197706

*H,L=360

main95331-06040iTA1#197401-197509

*H,L=400

sub95332-06040

main95331-08044iTA1#..DLX,STD197208-197401

*H,L=440

sub95332-08044

main95331-08048iTA1#..DLX,STD197208-197210

*H,L=480

sub95332-08048

main95332-06036iTA14197706-197707

L=400(*H,L=360)

sub95332-06040

77283BRACKET, FUEL TUBE

main77283-14010iTA1#197012-197207

77308COVER SUB-ASSY, FUEL INLET BOX

main77308-14010iTA1#..STD197012-197207

main77308-14020iTA12..DLX197012-197207

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-06076iTA1#197012-197207

sub90541-06056

77356WEATHERSTRIP, FUEL TANK FILLER PIPE LID, UPPER

main77371-14010iTA1#197012-197207

77662COVER, FUEL TANK GAGE

main77662-14010iTA1#197012-197207

9015960025

main90159-60025

9040414217

main90404-14217

9043007177

main90430-07177

9046808001

main90468-08001

9161140814

main91611-40814

9161640616

main91616-40616

9165640618

main91656-40618

21 parts on this diagram · 6 diagrams in section
