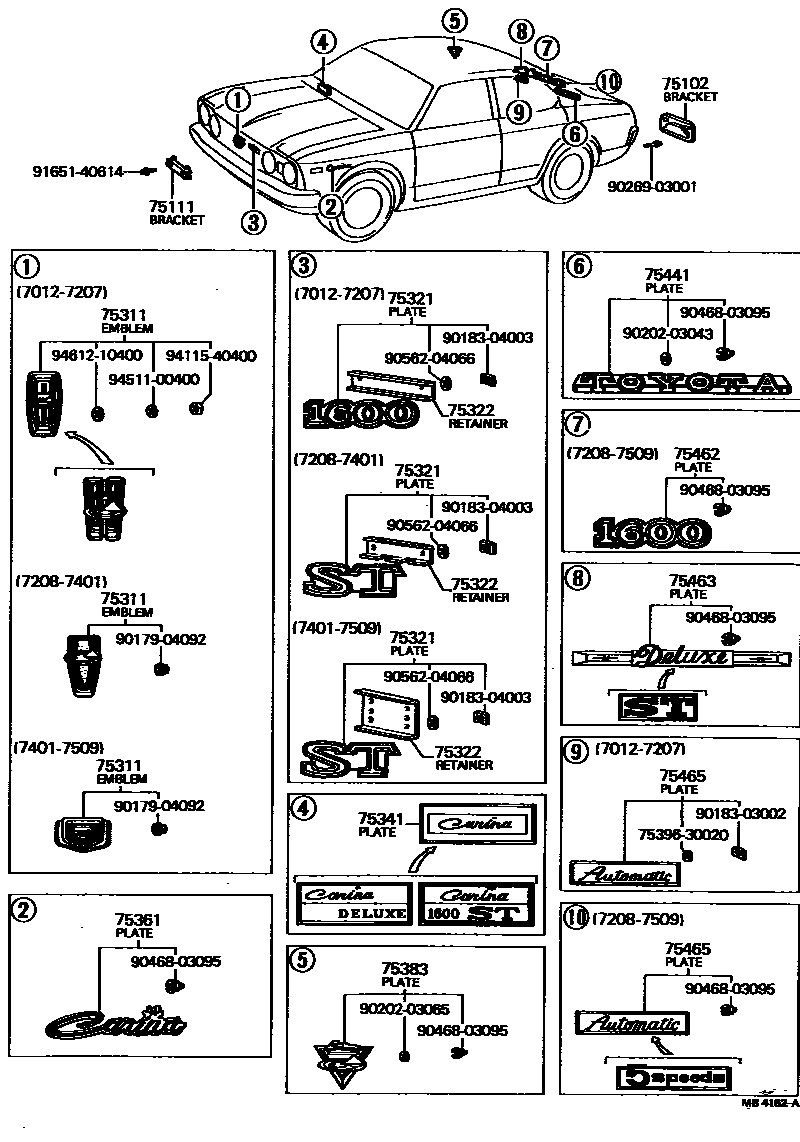

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-14020iTA1#¥1,000197012-197707

75111BRACKET, FRONT LICENSE PLATE

main75101-14010iTA1#197012-197707

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-19075iTA1#..STD197012-197207

main75311-19076iTA1#197208-197401

main75311-19077iTA1#197401-197509

main75311-19078iTA14197510-197707

main75311-19085iTA12..DLX197012-197207

75321PLATE, RADIATOR GRILLE OR FRONT PANEL NAME

main75321-19085iTA12¥1,210197012-197207

1600

sub75321-14010

main75321-19086iTA12..ST197208-197401

ST

main75321-19087iTA12..ST197401-197509

ST

75322RETAINER, RADIATOR GRILLE NAME PLATE

main75325-14010iTA12197012-197207

main75325-14011iTA12..ST197208-197401

main75325-14120iTA12..ST197401-197509

75341PLATE, INSTRUMENT PANEL NAME, NO.1

main55461-14010iTA1#..STD197012-197509

CARINA

main55461-14020iTA1#..DLX¥390197012-197407

CARINA DELUXE

sub55461-14010

main55461-14050iTA12..ST¥390197208-197407

CARINA 1600 ST

sub55461-14010

75361PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK)

main75361-14901iTA1#¥1,940197012-197707

CARINA

75383PLATE, QUARTER PANEL OR SIDE PANEL NAME (GRADE MARK)

main75381-14901iTA12..DLX197012-197707

DELUXE

main75381-14903iTA14..ST197510-197707

ST

75441PLATE, REAR NAME, NO.1

main75431-30131iTA14¥2,200197510-197707

TOYOTA

main75461-14901iTA1#197012-197207

TOYOTA

main75461-14902iTA1#197208-197509

TOYOTA

75462PLATE, REAR NAME, NO.3 (DISPLACEMENT)

main75441-20906iTA12..ST¥1,900197208-197509

1600

sub75441-20060

75463PLATE, REAR NAME, NO.4 (GRADE MARK)

main75442-14901iTA1#..DLX197012-197509

DELUXE

main75442-14902iTA14..DLX197510-197707

DELUXE

main75442-14904iTA12,14..ST197208-197707

ST

75465PLATE, REAR NAME, NO.5 (MECHANISM)

main75442-14120iTA14..ST197510-197707

5 SPEED

main75442-20030iTA12..ST197208-197509

5 SPEEDS

main75465-20903iTA12..3FC¥1,720197208-197509

AUTOMATIC

sub75442-12680

main75466-29015iTA12..3FC197012-197207

AUTOMATIC

7539630020CLIP, OUTSIDE MOULDING, NO.2

main75396-30020

9017904092

main90179-04092¥300

9018303002

main90183-03002¥140

9018304003

main90183-04003¥210

9020203043

main90202-03043

9020203065

main90202-03065¥210

9026903001

main90269-03001¥170

9046803095

main90468-03095¥190

9056204066

main90562-04066¥220

9165140614

main91651-40614¥160

9411540400

main94115-40400¥240

9451100400

main94511-00400¥200

9461210400

main94612-10400¥170

25 parts on this diagram · 2 diagrams in section
