REAR SEAT & SEAT TRACK

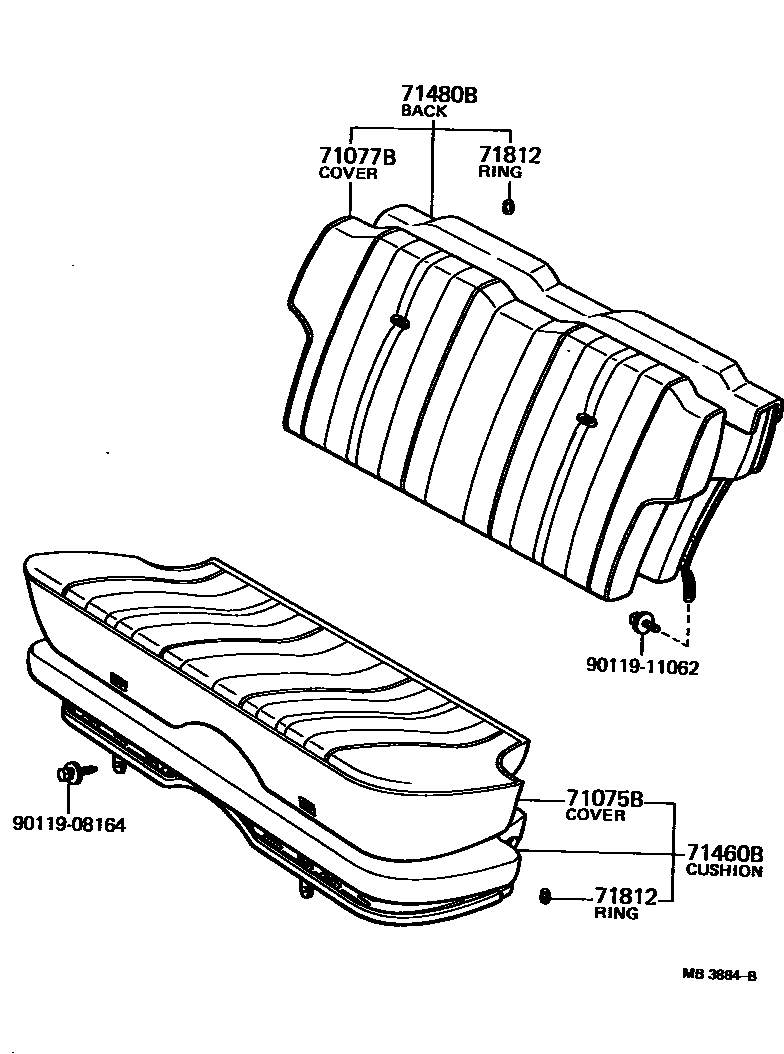

Parts diagram
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-14010-01i197012-197207
VL.BLACK,BLACK,TRIM2#
main71075-14011-01i197208-197401
VL.BLACK,BLACK,TRIM2#
main71075-14011-04i197208-197401
VL.BLUE M.,BLUE,TRIM8#
main71075-14011-06i197208-197401
VL.OLIVE- BROWN,BROWN,TRIM4#
main71075-14012-01i197401-197707
VL.BLACK,BLACK,TRIM2#
main71075-14012-06i197401-197707
VL.BROWN,BROWN,TRIM4#
main71075-14012-08i197401-197707
VL.IVORY,IVORY,TRIM0#
main71075-14020-01i197012-197207
FB.BLACK,BLACK,TRIM2#
main71075-14020-04i197012-197207
FB.BLUE,BLUE,TRIM8#
main71075-14020-06i197012-197207
FB.BROWN,BROWN,TRIM4#
main71075-14020-09i197012-197207
FB.GOLD,YELLOW
main71075-14021-01i197208-197401
FB.BLACK,BLACK,TRIM2#
main71075-14021-04i197208-197401
FB.BLUE M.,BLUE,TRIM8#
main71075-14021-06i197208-197401
FB.OLIVE- BROWN,BROWN,TRIM4#
main71075-14022-01i197401-197409
FB.BLACK,BLACK,TRIM2#
sub71075-14500
main71075-14022-06i197401-197409
FB.BROWN,BROWN,TRIM4#
sub71075-14500
main71075-14022-08i197401-197409
FB.IVORY,IVORY,TRIM0#
sub71075-14500
main71075-14040-01i197012-197207
PF.BLACK,BLACK,TRIM2#
main71075-14040-04i197012-197207
PF.BLUE,BLUE,TRIM8#
main71075-14040-06i197012-197207
PF.BROWN,BROWN,TRIM4#
main71075-14040-08i197012-197207
PF.IVORY,IVORY,TRIM0#
main71075-14040-09i197012-197207
PF.GOLD,YELLOW
main71075-14041-01i197208-197401
PF.BLACK,BLACK,TRIM2#
main71075-14041-04i197208-197401
PF.BLUE M.,BLUE,TRIM8#
main71075-14041-06i197208-197401
PF.OLIVE- BROWN,BROWN,TRIM4#
main71075-14050-01i197012-197207
VL.BLACK,BLACK,TRIM2#
main71075-14051-01i197208-197401
VL.BLACK,BLACK,TRIM2#
main71075-14051-04i197208-197401
VL.BLUE M.,BLUE,TRIM8#
main71075-14051-06i197208-197401
VL.OLIVE- BROWN,BROWN,TRIM4#
main71075-14052-01i197401-197707
VL.BLACK,BLACK,TRIM2#
main71075-14052-06i197401-197707
VL.BROWN,BROWN,TRIM4#
main71075-14052-08i197401-197707
VL.IVORY,IVORY,TRIM0#
main71075-14060-01i197012-197207
FB.BLACK,BLACK,TRIM2#
main71075-14060-04i197012-197207
FB.BLUE,BLUE,TRIM8#
main71075-14060-06i197012-197207
FB.BROWN,BROWN,TRIM4#
main71075-14060-09i197012-197207
FB.GOLD,YELLOW
main71075-14061-01i197208-197401
FB.BLACK,BLACK,TRIM2#
main71075-14061-04i197208-197401
FB.BLUE M.,BLUE,TRIM8#
main71075-14061-06i197208-197401
FB.OLIVE- BROWN,BROWN,TRIM4#
main71075-14062-01i197401-197409
FB.BLACK,BLACK,TRIM2#
sub71075-14510
main71075-14062-06i197401-197409
FB.BROWN,BROWN,TRIM4#
sub71075-14510
main71075-14062-08i197401-197409
FB.IVORY,IVORY,TRIM0#
sub71075-14510
main71075-14080-01i197012-197207
PF.BLACK,BLACK,TRIM2#
main71075-14080-04i197012-197207
PF.BLUE,BLUE,TRIM8#
main71075-14080-06i197012-197207
PF.BROWN,BROWN,TRIM4#
main71075-14080-08i197012-197207
PF.IVORY,IVORY,TRIM0#
main71075-14080-09i197012-197207
PF.GOLD,YELLOW
main71075-14081-01i197208-197401
PF.BLACK,BLACK,TRIM2#
main71075-14081-04i197208-197401
PF.BLUE M.,BLUE,TRIM8#
main71075-14081-06i197208-197401
PF.OLIVE- BROWN,BROWN,TRIM4#
main71075-14390-01i197401-197707
PF.BLACK,BLACK,TRIM2#
main71075-14390-06i197401-197707
PF.BROWN,BROWN,TRIM4#
main71075-14390-08i197401-197707
PF.IVORY,IVORY,TRIM0#
main71075-14400-01i197401-197707
PF.BLACK,BLACK,TRIM2#
main71075-14400-06i197401-197707
PF.BROWN,BROWN,TRIM4#
main71075-14400-08i197401-197707
PF.IVORY,IVORY,TRIM0#
main71075-14430-01i197409-197707
FB.BLACK,BLACK,TRIM2#
main71075-14430-05i197409-197707
FB.BEIGE,BEIGE
main71075-14430-06i197409-197707
FB.BROWN,BROWN,TRIM4#
main71075-14440-01i197409-197707
FB.BLACK,BLACK,TRIM2#
main71075-14440-05i197409-197707
FB.BEIGE,BEIGE
main71075-14440-06i197409-197707
FB.BROWN,BROWN,TRIM4#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-14010-01i197012-197207
VL.BLACK,BLACK,TRIM2#
main71077-14011-01i197208-197401
VL.BLACK,BLACK,TRIM2#
main71077-14011-04i197208-197401
VL.BLUE M.,BLUE,TRIM8#
main71077-14011-06i197208-197401
VL.OLIVE- BROWN,BROWN,TRIM4#
main71077-14012-01i197401-197707
VL.BLACK,BLACK,TRIM2#
main71077-14012-06i197401-197707
VL.BROWN,BROWN,TRIM4#
main71077-14012-08i197401-197707
VL.IVORY,IVORY,TRIM0#
main71077-14020-01i197012-197207
FB.BLACK,BLACK,TRIM2#
main71077-14020-04i197012-197207
FB.BLUE,BLUE,TRIM8#
main71077-14020-06i197012-197207
FB.BROWN,BROWN,TRIM4#
main71077-14020-09i197012-197207
FB.GOLD,YELLOW
main71077-14021-01i197208-197401
FB.BLACK,BLACK,TRIM2#
main71077-14021-04i197208-197401
FB.BLUE M.,BLUE,TRIM8#
main71077-14021-06i197208-197401
FB.OLIVE- BROWN,BROWN,TRIM4#
main71077-14022-01i197401-197409
FB.BLACK,BLACK,TRIM2#
sub71077-14350
main71077-14022-06i197401-197409
FB.BROWN,BROWN,TRIM4#
sub71077-14350
main71077-14022-08i197401-197409
FB.IVORY,IVORY,TRIM0#
sub71077-14350
main71077-14040-01i197012-197207
PF.BLACK,BLACK,TRIM2#
main71077-14040-04i197012-197207
PF.BLUE,BLUE,TRIM8#
main71077-14040-06i197012-197207
PF.BROWN,BROWN,TRIM4#
main71077-14040-08i197012-197207
PF.IVORY,IVORY,TRIM0#
main71077-14040-09i197012-197207
PF.GOLD,YELLOW
main71077-14041-01i197208-197401
PF.BLACK,BLACK,TRIM2#
main71077-14041-04i197208-197401
PF.BLUE M.,BLUE,TRIM8#
main71077-14041-06i197208-197401
PF.OLIVE- BROWN,BROWN,TRIM4#
main71077-14250-01i197401-197707
PF.BLACK,BLACK,TRIM2#
main71077-14250-06i197401-197707
PF.BROWN,BROWN,TRIM4#
main71077-14250-08i197401-197707
PF.IVORY,IVORY,TRIM0#
main71077-14290-01i197409-197707
FB.BLACK,BLACK,TRIM2#
main71077-14290-05i197409-197707
FB.BEIGE,BEIGE
main71077-14290-06i197409-197707
FB.BROWN,BROWN,TRIM4#
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
main71460-14010-01i197012-197207
VL.BLACK,BLACK,TRIM2#
sub71460-14230
main71460-14011-01i197208-197401
VL.BLACK,BLACK,TRIM2#
main71460-14011-04i197208-197401
VL.BLUE M.,BLUE,TRIM8#
main71460-14011-06i197208-197401
VL.OLIVE- BROWN,BROWN,TRIM4#
main71460-14012-01i197401-197707
VL.BLACK,BLACK,TRIM2#
main71460-14012-06i197401-197707
VL.BROWN,BROWN,TRIM4#
main71460-14012-08i197401-197707
VL.IVORY,IVORY,TRIM0#
main71460-14020-01i197012-197207
FB.BLACK,BLACK,TRIM2#
sub71460-14240
main71460-14020-04i197012-197207
FB.BLUE,BLUE,TRIM8#
sub71460-14240
main71460-14020-06i197012-197207
FB.BROWN,BROWN,TRIM4#
sub71460-14240
main71460-14020-09i197012-197207
FB.GOLD,YELLOW
sub71460-14240
main71460-14021-01i197208-197401
FB.BLACK,BLACK,TRIM2#
main71460-14021-04i197208-197401
FB.BLUE M.,BLUE,TRIM8#
main71460-14021-06i197208-197401
FB.OLIVE- BROWN,BROWN,TRIM4#
main71460-14022-01i197401-197409
FB.BLACK,BLACK,TRIM2#
sub71460-14480
main71460-14022-06i197401-197409
FB.BORWN,BROWN
sub71460-14480
main71460-14022-08i197401-197409
FB.IVORY,IVORY,TRIM0#
sub71460-14480
main71460-14040-01i197012-197207
PF.BLACK,BLACK,TRIM2#
sub71460-14260
main71460-14040-04i197012-197207
PF.BLUE,BLUE,TRIM8#
sub71460-14260
main71460-14040-06i197012-197207
PF.BROWN,BROWN,TRIM4#
sub71460-14260
main71460-14040-08i197012-197207
PF.IVORY,IVORY,TRIM0#
sub71460-14260
main71460-14040-09i197012-197207
PF.GOLD,YELLOW
sub71460-14260
main71460-14041-01i197208-197401
PF.BLACK,BLACK,TRIM2#
main71460-14041-04i197208-197401
PF.BLUE M.,BLUE,TRIM8#
main71460-14041-06i197208-197401
PF.OLIVE- BROWN,BROWN,TRIM4#
main71460-14050-01i197012-197207
VL.BLACK,TRIM2#
sub71460-14270
main71460-14051-01i197208-197401
VL.BLACK,BLACK,TRIM2#
main71460-14051-04i197208-197401
VL.BLUE M.,BLUE,TRIM8#
main71460-14051-06i197208-197401
VL.OLIVE- BROWN,BROWN,TRIM4#
main71460-14052-01i197401-197707
VL.BLACK,BLACK,TRIM2#
main71460-14052-06i197401-197707
VL.BROWN,BROWN,TRIM4#
main71460-14052-08i197401-197707
VL.IVORY,IVORY,TRIM0#
main71460-14060-01i197012-197207
FB.BLACK,BLACK,TRIM2#
sub71460-14280
main71460-14060-04i197012-197207
FB.BLUE,BLUE,TRIM8#
sub71460-14280
main71460-14060-06i197012-197207
FB.BROWN,BROWN,TRIM4#
sub71460-14280
main71460-14060-09i197012-197207
FB.GOLD,YELLOW
sub71460-14280
main71460-14061-01i197208-197401
FB.BLACK,BLACK,TRIM2#
main71460-14061-04i197208-197401
FB.BLUE M.,BLUE,TRIM8#
main71460-14061-06i197208-197401
FB.OLIVE- BROWN,BROWN,TRIM4#
main71460-14062-01i197401-197409
FB.BLACK,BLACK,TRIM2#
sub71460-14490
main71460-14062-06i197401-197409
FB.BROWN,BROWN,TRIM4#
sub71460-14490
main71460-14062-08i197401-197409
FB.IVORY,IVORY,TRIM0#
sub71460-14490
main71460-14080-01i197012-197207
PF.BLACK,TRIM2#
sub71460-14300
main71460-14080-04i197012-197207
PF.BLUE,TRIM8#
sub71460-14300
main71460-14080-06i197012-197207
PF.BROWN,TRIM4#
sub71460-14300
main71460-14080-08i197012-197207
PF.IVORY,TRIM0#
sub71460-14300
main71460-14080-09i197012-197207
PF.GOLD
sub71460-14300
main71460-14081-01i197208-197401
PF.BLACK,BLACK,TRIM2#
main71460-14081-04i197208-197401
PF.BLUE M.,BLUE,TRIM8#
main71460-14081-06i197208-197401
PF.OLIVE- BROWN,BROWN,TRIM4#
main71460-14390-01i197401-197707
PF.BLACK,BLACK,TRIM2#
main71460-14390-06i197401-197707
PF.BROWN,BROWN,TRIM4#
main71460-14390-08i197401-197707
PF.IVORY,IVORY,TRIM0#
main71460-14400-01i197401-197707
PF.BLACK,BLACK,TRIM2#
main71460-14400-06i197401-197707
PF.BROWN,BROWN,TRIM4#
main71460-14400-08i197401-197707
PF.IVORY,IVORY,TRIM0#
main71460-14430-01i197409-197707
FB.BLACK,BLACK,TRIM2#
main71460-14430-05i197409-197707
FB.BEIGE,BEIGE
main71460-14430-06i197510-197707
FB.BROWN,BROWN,TRIM4#
main71460-14430-06i197409-197509
FB.BORWN,BROWN,TRIM4#
main71460-14440-01i197409-197707
FB.BLACK,BLACK,TRIM2#
main71460-14440-05i197409-197707
FB.BEIGE,BEIGE
main71460-14440-06i197409-197707
FB.BROWN,BROWN,TRIM4#
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
main71480-14010-01i197012-197207
VL.BLACK,BLACK,TRIM2#
main71480-14011-01i197208-197401
VL.BLACK,BLACK,TRIM2#
main71480-14011-04i197208-197401
VL.BLUE M.,BLUE,TRIM8#
main71480-14011-06i197208-197401
VL.OLIVE- BROWN,BROWN,TRIM4#
main71480-14012-01i197401-197707
VL.BLACK,BLACK,TRIM2#
main71480-14012-06i197401-197707
VL.BROWN,BROWN,TRIM4#
main71480-14012-08i197401-197707
VL.IVORY,IVORY,TRIM0#
main71480-14020-01i197012-197207
FB.BLACK,BLACK,TRIM2#
main71480-14020-04i197012-197207
FB.BLUE,BLUE,TRIM8#
main71480-14020-06i197012-197207
FB.BROWN,BROWN,TRIM4#
main71480-14020-09i197012-197207
FB.GOLD,YELLOW
main71480-14021-01i197208-197401
FB.BLACK,BLACK,TRIM2#
main71480-14021-04i197208-197401
FB.BLUE M.,BLUE,TRIM8#
main71480-14021-06i197208-197401
FB.OLIVE- BROWN,BROWN,TRIM4#
main71480-14022-01i197401-197409
FB.BLACK,BLACK,TRIM2#
sub71480-14340
main71480-14022-06i197401-197409
FB.BROWN,BROWN,TRIM4#
sub71480-14340
main71480-14022-08i197401-197409
FB.IVORY,IVORY,TRIM0#
sub71480-14340
main71480-14040-01i197012-197207
PF.BLACK,BLACK,TRIM2#
main71480-14040-04i197012-197207
PF.BLUE,BLUE,TRIM8#
main71480-14040-06i197012-197207
PF.BROWN,BROWN,TRIM4#
main71480-14040-08i197012-197207
PF.IVORY,IVORY,TRIM0#
main71480-14040-09i197012-197207
PF.GOLD,YELLOW
main71480-14041-01i197208-197401
PF.BLACK,BLACK,TRIM2#
main71480-14041-04i197208-197401
PF.BLUE M.,BLUE,TRIM8#
main71480-14041-06i197208-197401
PF.OLIVE- BROWN,BROWN,TRIM4#
main71480-14250-01i197401-197707
PF.BLACK,BLACK,TRIM2#
main71480-14250-06i197401-197707
PF.BROWN,BROWN,TRIM4#
main71480-14250-08i197401-197707
PF.IVORY,IVORY,TRIM0#
main71480-14280-01i197409-197707
FB.BLACK,BLACK,TRIM2#
main71480-14280-05i197409-197707
FB.BEIGE,BEIGE
main71480-14280-06i197409-197707
FB.BROWN,BROWN,TRIM4#
71812CLIP (FOR FRONT SEAT CUSHION COVER)
main90468-18071i¥160197012-197707
sub90468-18008¥80
9011908164
main90119-08164¥160
9011911062
main90119-11062

7 parts on this diagram · 1 diagram in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
