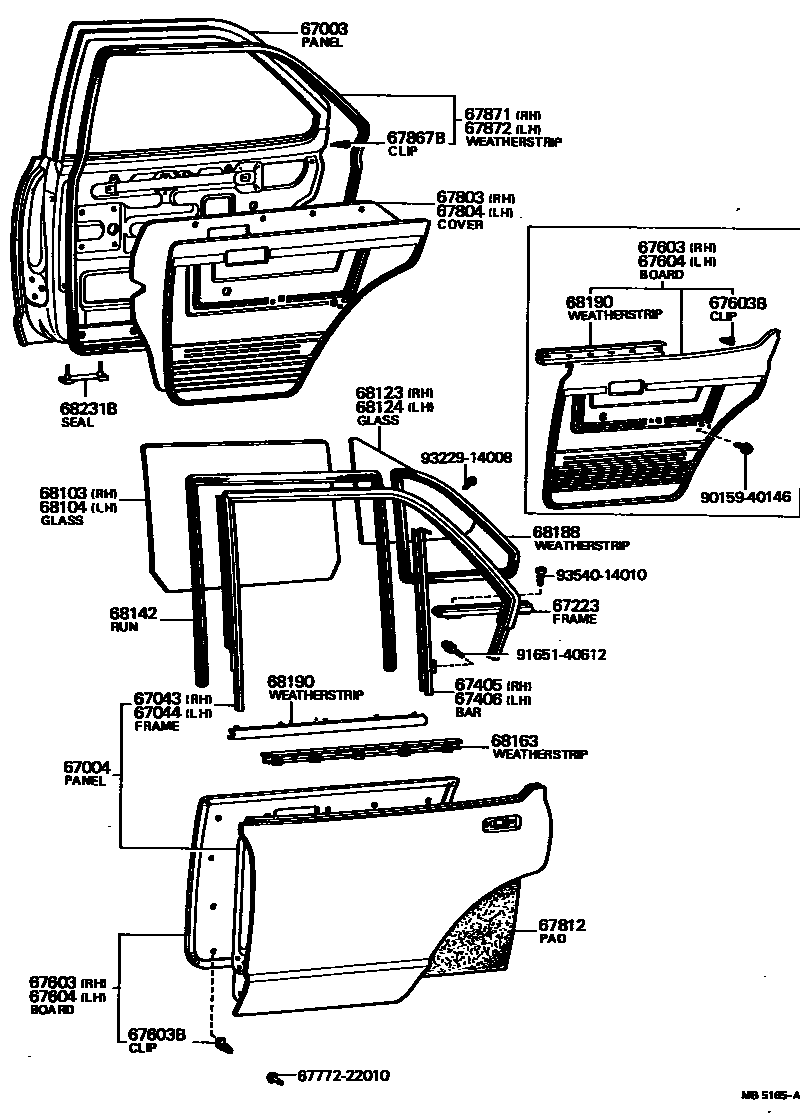

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67043FRAME SUB-ASSY, REAR DOOR WINDOW, RH
67044FRAME SUB-ASSY, REAR DOOR WINDOW, LH
67223FRAME, REAR DOOR QUARTER WINDOW, LOWER
67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
GOLD,YELLOW
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
GOLD,YELLOW
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
OLIVE- BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
GOLD,YELLOW
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
GOLD,YELLOW
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
OLIVE- BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
67603BCLIP(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
GOLD,YELLOW
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
GOLD,YELLOW
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
OLIVE- BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
GOLD,YELLOW
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
GOLD,YELLOW
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
OLIVE- BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
67812PAD, REAR DOOR SILENCER
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
TN.TP. T=4.0
68104GLASS SUB-ASSY, REAR DOOR, LH
TP.T=4.0
TN.TP. T=4.0
68123GLASS, REAR DOOR WINDOW, RH
TN.TP. T=4.0
68124GLASS, REAR DOOR WINDOW, LH
TN.TP. T=4.0
68142RUN, REAR DOOR GLASS
68163WEATHERSTRIP, REAR DOOR GLASS, OUTER
sub68163-14010
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
RH.
LH.
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
RH.
68231BSEAL, REAR DOOR DRAIN HOLE DUST
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
9015940146
main90159-40146
9165140612
9322914008
9354014010
30 parts on this diagram · 1 diagram in section
