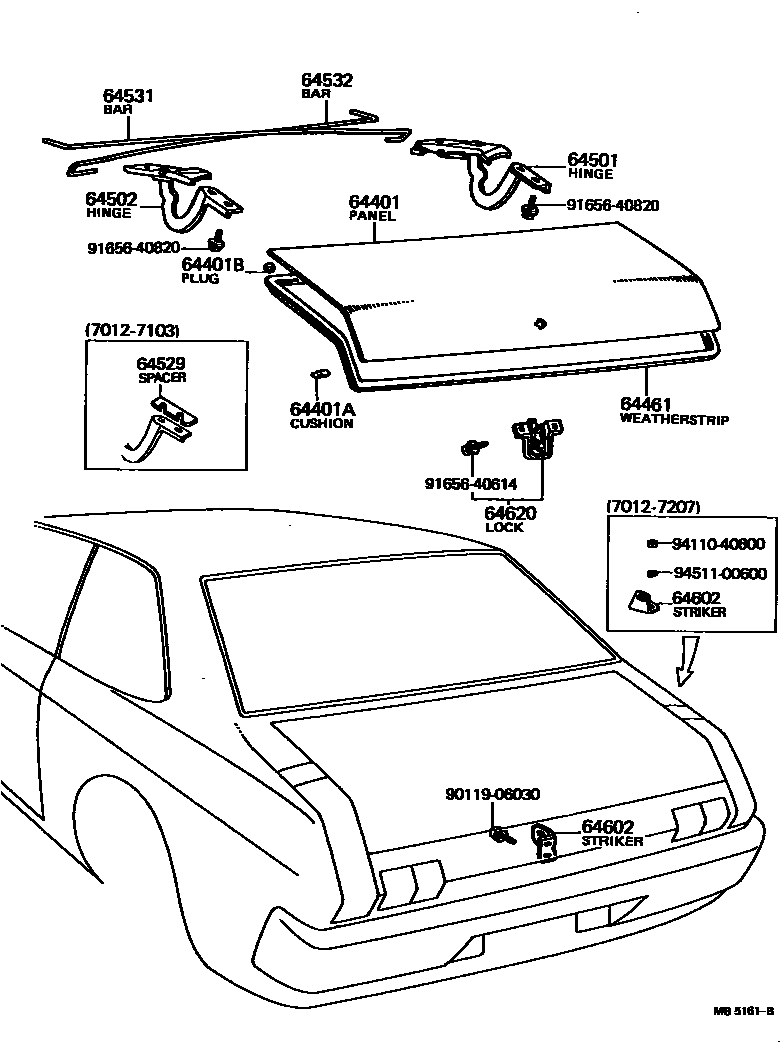

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
OD=5
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE
T=1.0
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR
9011906030
main90119-06030
9165640614
main91656-40614
9165640820
main91656-40820
9411040600
main94110-40600
9451100600
main94511-00600
16 parts on this diagram · 1 diagram in section
