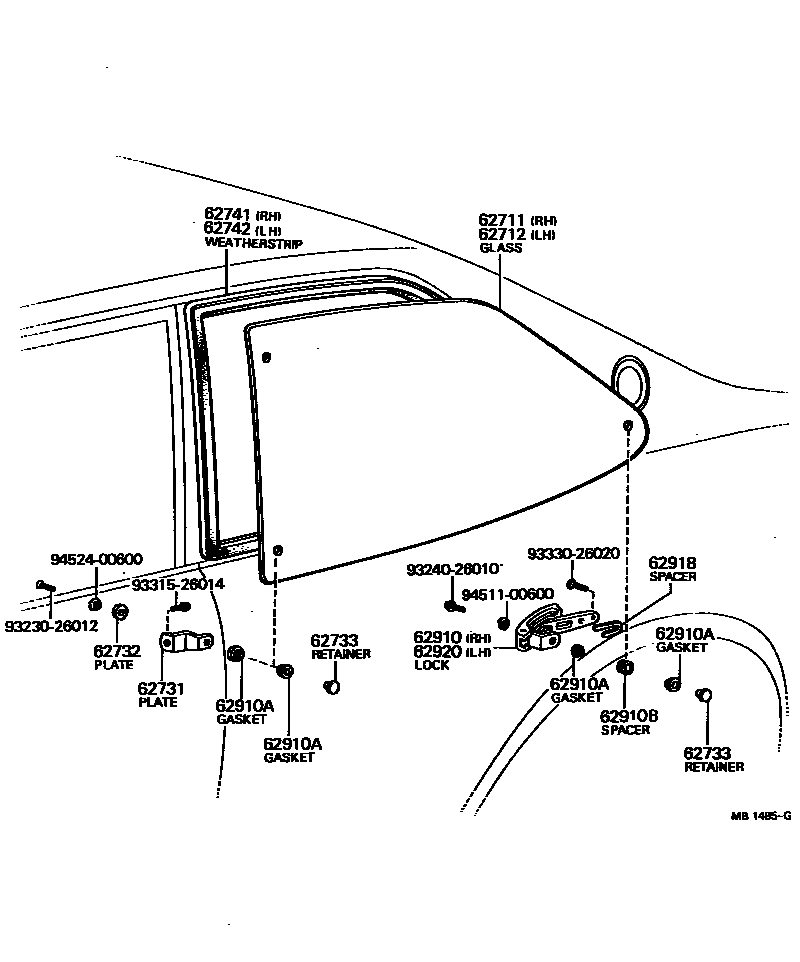

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-14010iTA14..STD..2D197012-197707

TP.T=4.0

sub62711-14020

main62711-14020iTA1#..2D197012-197707

TN.TP. T=4.0

62712GLASS, QUARTER WINDOW, LH

main62712-14010iTA14..STD..2D197012-197707

TP.T=4.0

sub62712-14020

main62712-14020iTA1#..2D197012-197707

TN.TP. T=4.0

62731PLATE, QUARTER OR SIDE WINDOW HINGE

main62731-14010iTA1#..2D197012-197301

main62731-14010iTA12,14..2D197301-197707

LOWER

main62736-14010iTA12,14..2D197301-197707

UPPER

62732PLATE, QUARTER OR SIDE WINDOW HINGE FINISH

main62732-12010iTA1#..2D197012-197707

62733RETAINER, QUARTER OR SIDE WINDOW HINGE

main62733-12010iTA1#..2D197012-197707

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-14010iTA1#..2D197012-197707

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-14010iTA1#..2D197012-197707

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62910-14010iTA1#..2D197012-197707

62910AGASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)

main62734-12010iTA1#..2D197012-197707

62910BSPACER, QUARTER WINDOW LOCK SET

main90560-08210iTA1#..2D197012-197707

62918SPACER, QUARTER WINDOW LOCK SUPPORT

main62918-14010iTA1#..2D197012-197707

62920LOCK ASSY, QUARTER WINDOW, LH

main62910-14010iTA1#..2D197012-197707

9323026012

main93230-26012

9324026010

main93240-26010

9331526014

main93315-26014

9333026020

main93330-26020

9451100600

main94511-00600

9452400600

main94524-00600

18 parts on this diagram · 1 diagram in section
