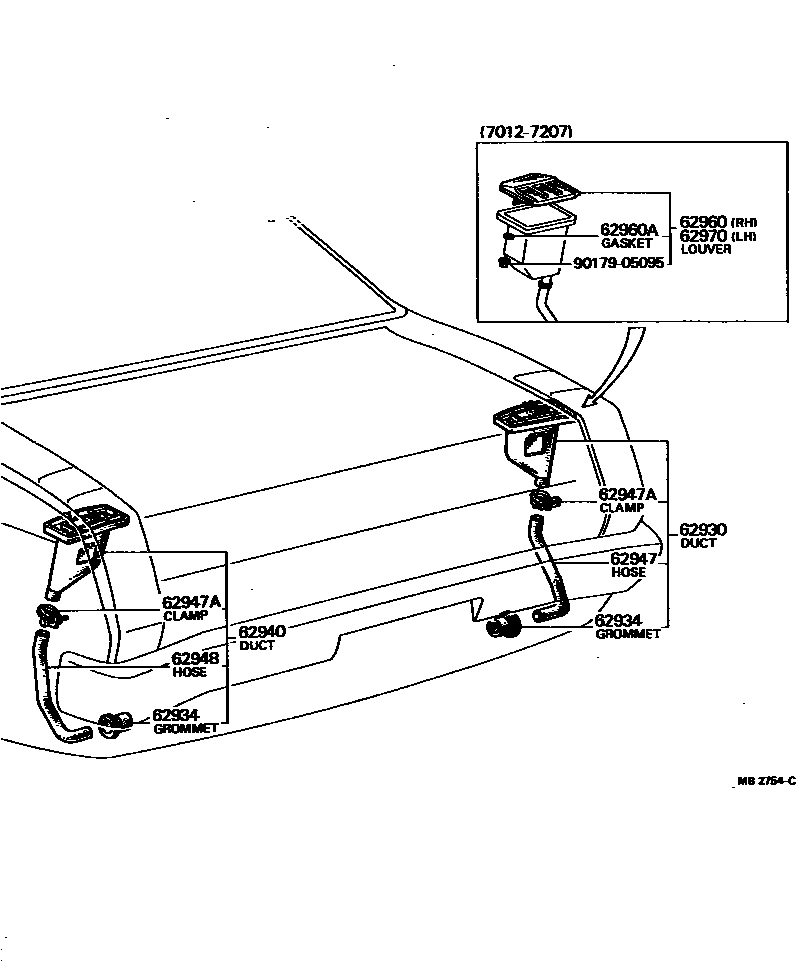

ROOF SIDE VENTILATOR

62930DUCT ASSY, ROOF SIDE VENT, RH

main62930-14010iTA1#197012-197207

main62930-14011iTA1#197208-197707

62934GROMMET, ROOF SIDE VENT HOSE

main62938-14010iTA1#197012-197707

62940DUCT ASSY, ROOF SIDE VENT, LH

main62940-14010iTA1#197012-197207

main62940-14011iTA1#197208-197707

62947HOSE, ROOF SIDE VENT, RH

main62947-14010iTA1#197012-197207

main62947-14011iTA1#197208-197707

62947ACLAMP, ROOF SIDE VENT HOSE

main90460-29059iTA1#197012-197102

sub96112-10300

main96112-10280iTA1#197102-197506

62948HOSE,ROOF SIDE VENT, LH

main62948-14010iTA1#197012-197207

main62948-14011iTA1#197208-197707

62960LOUVER ASSY, ROOF SIDE VENT, RH

main62951-19085iTA1#197012-197207

sub62951-14901

62960AGASKET(FOR ROOF SIDE VENT LOUVER)

main90562-04078iTA1#197012-197207

62970LOUVER ASSY, ROOF SIDE VENT, LH

main62952-19075iTA1#197012-197207

sub62952-14901

9017905095

main90179-05095

10 parts on this diagram · 1 diagram in section
