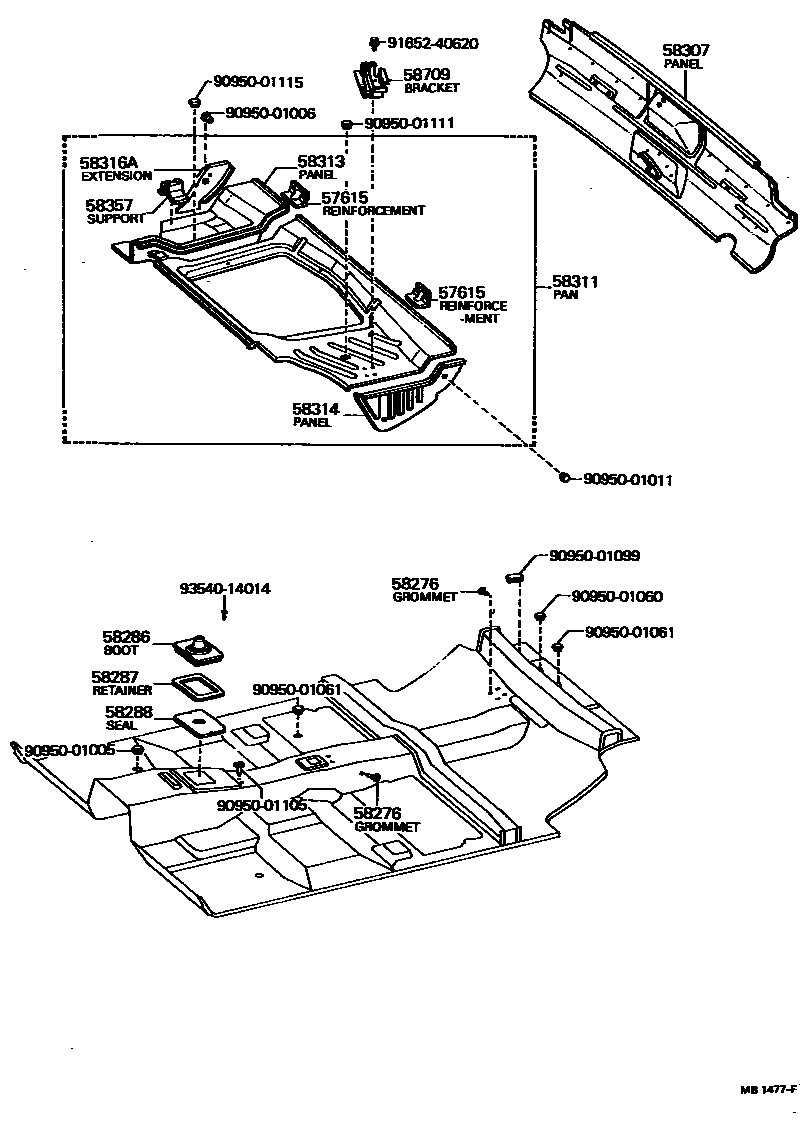

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

57615REINFORCEMENT, REAR BUMPER STAY SUPPORT

main57615-14010iTA1#197012-197207

RH.

main57615-14011iTA1#197208-197707

RH.

main57616-14010iTA1#197012-197207

LH.

main57616-14011iTA1#197208-197707

LH.

58276GROMMET, SAFETY BAND ANCHORAGE NUT

main90950-01126×6iTA1#197012-197707

OD=12

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-14010iTA14..MTM197510-197707

main58286-14010iTA1#..MTM197012-197509

58287RETAINER, SHIFT LEVER BOOT

main58287-14010iTA1#..MTM197012-197509

58288SEAL, SHIFT LEVER BOOT

main58288-14010iTA1#..MTM197012-197509

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-14010iTA1#197012-197207

main58307-14011iTA1#197208-197509

main58307-14900iTA14197510-197707

58311PAN, REAR FLOOR

main58301-14010iTA1#197012-197207

main58301-14011iTA1#197208-197509

sub57688-14011

main58301-14012iTA14197510-197602

main58301-14911iTA14197602-197707

sub51096-14010

sub51967-14011

sub57601-14040

sub57602-14040

sub58352-14030

sub91611-61020

58313PANEL, REAR FLOOR SIDE, RH

main58313-14010iTA1#197012-197207

main58313-14011iTA1#197208-197707

58314PANEL, REAR FLOOR SIDE, LH

main58314-14010iTA1#197012-197207

main58314-14011iTA1#197208-197707

58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH

main58316-14010iTA1#197012-197207

main58316-14011iTA1#197208-197707

58357SUPPORT, SPARE WHEEL

main58357-14010iTA1#197012-197207

58709BRACKET SUB-ASSY, JACK CLAMP

main58709-14010iTA1#197012-197207

main58794-14011iTA1#197208-197707

9095001005

main90950-01005

9095001006

main90950-01006

9095001011

main90950-01011

9095001060

main90950-01060

9095001061

main90950-01061

9095001099

main90950-01099

9095001105

main90950-01105

9095001111

main90950-01111

9095001115

main90950-01115

9165240620

main91652-40620

9354014014

main93540-14014

23 parts on this diagram · 4 diagrams in section
