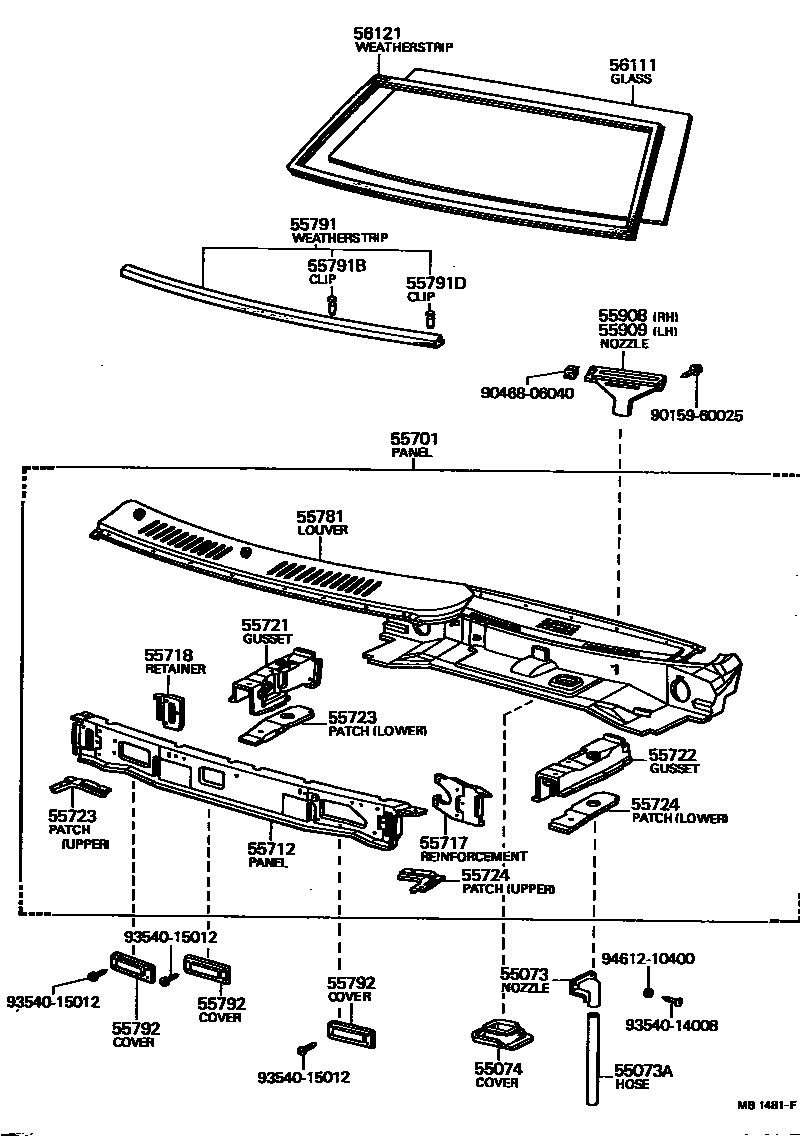

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-14010iTA1#197012-197509

main55073-14020iTA14197510-197602

55073AHOSE(FOR EXTRACT NOZZLE)

main90445-33003iTA1#¥650197309-197509

main90446-33231iTA1#197012-197309

55074COVER SUB-ASSY, COWL INNER HEATER AIR

main55074-22010iTA1#197012-197509

L/HEATER

55701PANEL SUB-ASSY, COWL

main55700-14010iTA1#..RHD197012-197509

main55700-14011iTA14..RHD197510-197707

main55700-14020iTA1#..LHD197012-197509

main55700-14021iTA14..LHD197510-197707

55712PANEL, COWL TOP OUTSIDE, FRONT

main55712-20020iTA1#..RHD197012-197509

main55712-20030iTA1#..LHD¥5,400197012-197509

sub55712-20904

55717REINFORCEMENT, COWL TOP OUTSIDE

main55717-20010iTA1#..RHD197012-197509

main55717-20020iTA1#..LHD197012-197509

55718RETAINER, HOOD HINGE

main55715-20020iTA1#..RHD197012-197509

main55715-20030iTA1#..LHD197012-197509

55721GUSSET, COWL TOP PANEL, RH

main55715-14010iTA1#197012-197509

55722GUSSET, COWL TOP PANEL, LH

main55716-14010iTA1#197012-197509

55723PATCH, COWL TOP OUTER CORNER, RH

main55721-14010iTA1#197012-197509

LOWER

main55723-14010iTA1#197012-197509

UPPER

55724PATCH, COWL TOP OUTER CORNER, LH

main55722-14010iTA1#197012-197509

LOWER

main55724-14010iTA1#197012-197509

UPPER

55781LOUVER, COWL VENTILATOR

main55711-14030iTA14..RHD197510-197707

main55711-14040iTA14..LHD197510-197707

main55711-20040iTA1#..RHD197012-197509

main55711-20050iTA1#..LHD197012-197509

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-14020iTA14197510-197707

main53383-14902iTA1#197202-197509

main53383-20902iTA1#197012-197202

55791BCLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)

main90467-07050iTA1#¥170197012-197610

sub90467-08008¥170

main90467-08008iTA14¥170197610-197707

55791DCLIP, HOOD TO COWL TOP WEATHERSTRIP, OUTER

main90467-07050iTA1#¥170197506-197509

sub90467-08008¥170

main90467-08111iTA1#197202-197506

55792COVER, WIPER MOTOR SERVICE HOLE

main55071-20010iTA1#197012-197707

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55091-14010iTA1#197404-197509

main55908-14010iTA1#¥2,910197012-197404

sub55091-14010

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55092-14010iTA1#197404-197509

main55909-14010iTA1#¥2,980197012-197404

sub55092-14010

56111GLASS, WINDSHIELD

main56111-14051iTA1#¥72,800197401-197707

TN.LM. T=5.7

main56111-20110iTA14..STD¥33,400197012-197707

ZN.TP. T=5.0

sub56111-20120¥36,400

main56111-20120iTA1#¥36,400197012-197707

TN.ZN.TP. T=5.0

sub56111-14051¥72,800

main56111-20130iTA1#¥63,900197012-197401

TN.LM. T=6.6

sub56111-20131

main56111-20140iTA1#..ST,STD¥61,700197012-197401

LM.T=6.6

sub56111-20141¥69,300

main56111-20141iTA12..ST,STD¥69,300197401-197707

LM.T=5.7

sub56111-14051¥72,800

56121WEATHERSTRIP, WINDSHIELD

main56121-14070iTA1#¥6,400197012-197707

9015960025

main90159-60025¥200

9046806040

main90468-06040¥120

9354014008

main93540-14008¥90

9354015012

main93540-15012¥70

9461210400

main94612-10400¥170

25 parts on this diagram · 2 diagrams in section
