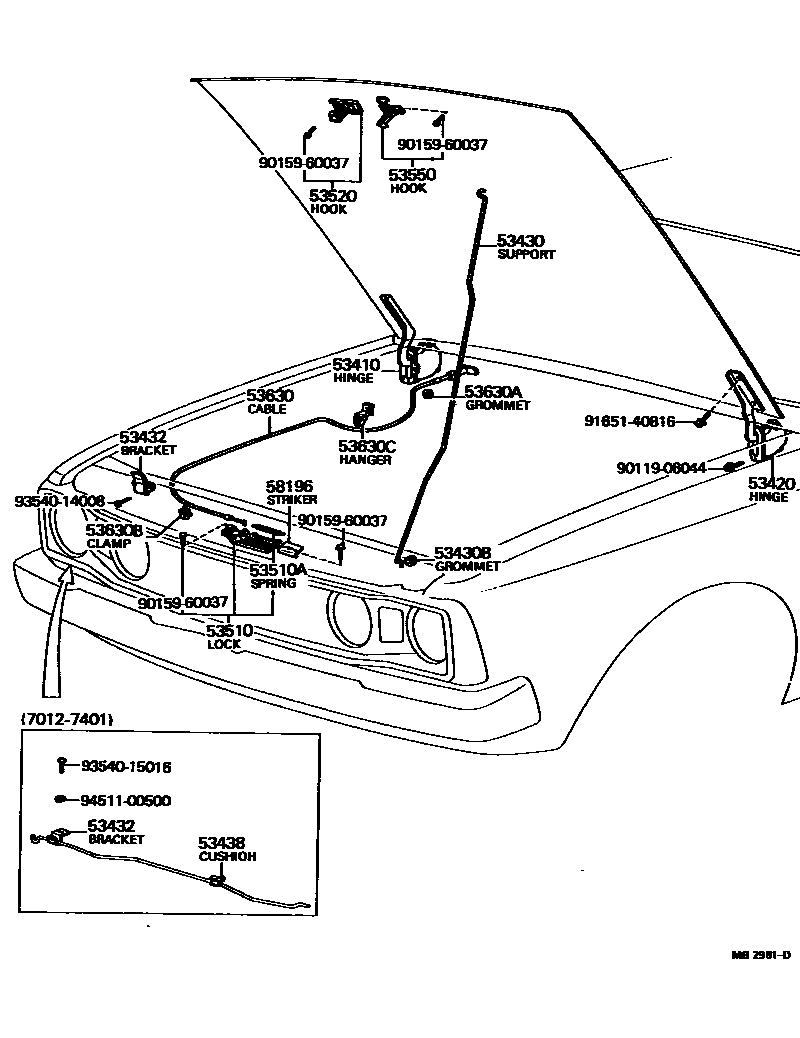

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-14030iTA14197510-197707

main53410-20030iTA1#197012-197509

53420HINGE ASSY, HOOD, LH

main53410-14030iTA14197510-197707

main53420-20030iTA1#197012-197509

53430SUPPORT ASSY, HOOD

main53431-14010iTA1#197012-197401

main53431-14011iTA1#197401-197509

main53451-14010iTA14197510-197707

53430BGROMMET(FOR HOOD SUPPORT)

main90480-15296iTA1#197012-197707

53432BRACKET, HOOD SUPPORT CLAMP

main53439-14011iTA1#197012-197401

main53439-20011iTA1#197401-197509

53438CUSHION, HOOD SUPPORT

main53438-14010iTA1#197012-197401

53510LOCK ASSY, HOOD

main53510-14030iTA12..RHD197403-197509

main53510-14040iTA1#..LHD197403-197509

main53510-14050iTA14..RHD197510-197707

main53510-14060iTA14..LHD197510-197707

main53510-29056iTA1#..RHD197012-197403

main53510-29065iTA1#..LHD197012-197207

sub53510-29066

main53510-29066iTA1#..LHD197208-197403

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-10486iTA14197510-197707

L=35

main90506-10487iTA14197510-197707

L=43

main90506-12262iTA1#197012-197509

53520HOOK ASSY, HOOD LOCK

main53520-29015iTA1#197012-197509

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-19045iTA1#197012-197509

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-14012iTA1#197403-197509

main53630-14020iTA1#197012-197304

sub53630-14021

main53630-14021iTA1#197304-197403

main53630-14070iTA14197510-197707

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main90480-15194iTA1#197012-197707

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90463-10335iTA1#197012-197707

53630CHANGER, HOOD LOCK CONTROL CABLE

main53617-14011iTA12..RHD197305-197509

main90461-05885iTA12..RHD197208-197305

sub53617-14010

58196STRIKER, HOOD LOCK SAFETY LATCH

main58196-20010iTA1#197012-197509

9011906044

main90119-06044

9015960037

main90159-60037

9165140816

main91651-40816

9354014008

main93540-14008

9354015016

main93540-15016

9451100500

main94511-00500

21 parts on this diagram · 2 diagrams in section
