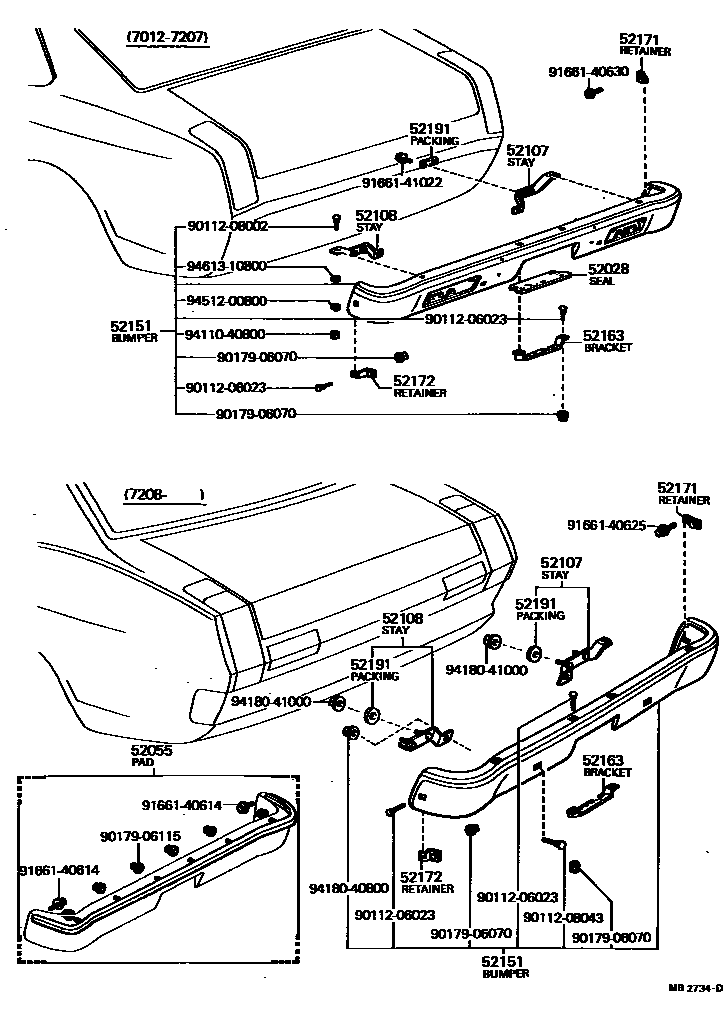

REAR BUMPER & BUMPER STAY

52028SEAL SUB-ASSY, REAR BUMPER, CENTER

main52028-14010iTA1#197104-197207

52055PAD SUB-ASSY, REAR BUMPER

main52055-19025iTA14197510-197707

52107STAY SUB-ASSY, REAR BUMPER, RH

main52181-14010iTA1#197012-197207

main52181-14902iTA1#197208-197707

52108STAY SUB-ASSY, REAR BUMPER, LH

main52182-14010iTA1#197012-197207

main52182-14902iTA1#197208-197707

52151BUMPER ASSY, REAR

main52151-19135iTA1#197012-197207

sub52151-14010

main52151-19136iTA1#197208-197707

sub52151-14011

main52151-19155iTA1#197012-197207

FOR BIG LICENSE

sub52151-14040

main52151-19156iTA14..DLX,STD197208-197707

FOR BIG LICENSE

sub52151-14041

main52151-19295iTA14197510-197707

FOR PAD

sub52151-14160

main52151-19315iTA14197510-197707

FOR BIG LICENCE& PAD

sub52151-14180

52163BRACKET, REAR LICENSE LAMP

main52163-14010iTA1#197012-197707

52171RETAINER, REAR BUMPER SIDE, RH

main52171-14010iTA1#197012-197207

main52171-14011iTA1#197208-197707

52172RETAINER, REAR BUMPER SIDE, LH

main52172-14010iTA1#197012-197207

main52172-14011iTA1#197208-197707

52191PACKING, REAR BUMPER STAY

main52191-14010iTA1#197012-197207

L=100X40, T=2

main52191-14011iTA1#197208-197411

L=120X40, T=2

main90430-09001iTA1#197411-197707

OD=30, ID=10,T=2

9011206023

main90112-06023

9011208002

main90112-08002

9011208043

main90112-08043

9017906070

main90179-06070

9017906115

main90179-06115

9166140614

main91661-40614

9166140625

main91661-40625

9166140630

main91661-40630

9166141022

main91661-41022

9411040800

main94110-40800

9418040800

main94180-40800

9418041000

main94180-41000

9451200800

main94512-00800

9461310800

main94613-10800

23 parts on this diagram · 1 diagram in section
