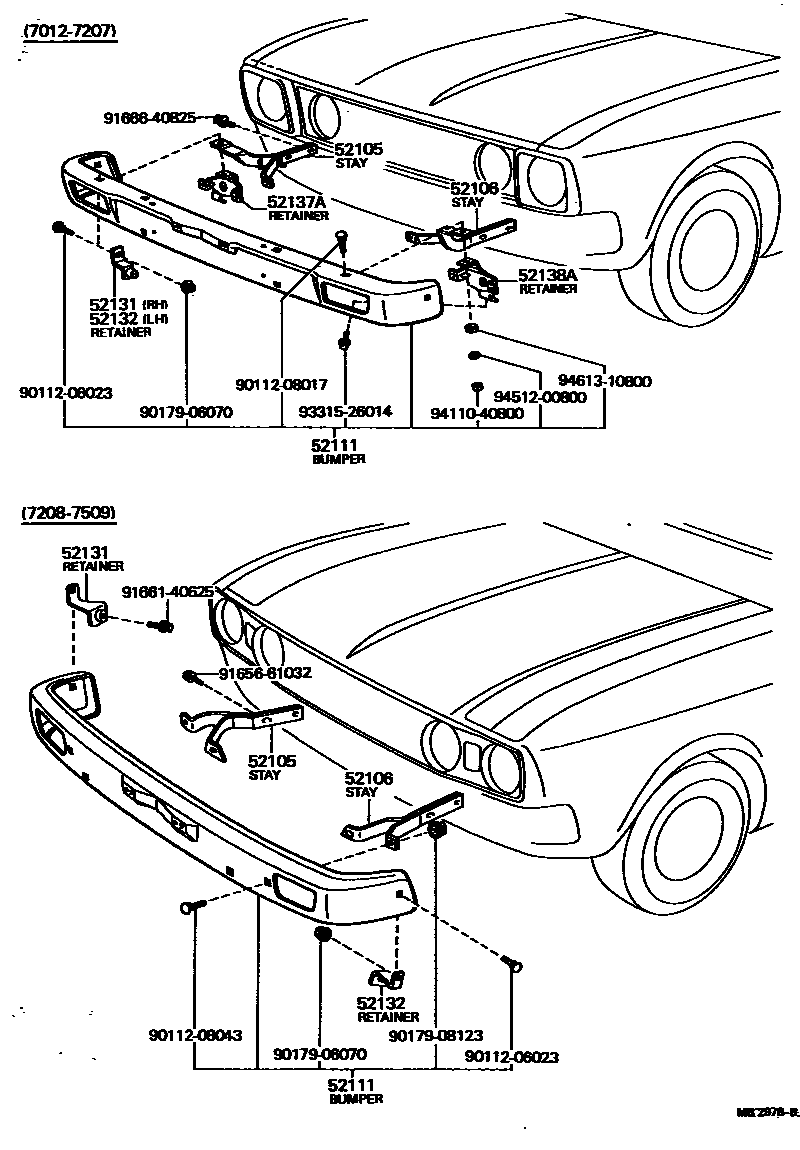

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-14010iTA1#197012-197207

main52011-14011iTA1#197208-197509

main52011-14012iTA14197510-197707

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-14010iTA1#197012-197207

main52012-14011iTA1#197208-197509

main52012-14012iTA14197510-197707

52111BUMPER ASSY, FRONT

main52111-19085iTA1#197012-197207

sub52111-14010

main52111-19086iTA1#197208-197707

sub52111-14011

main52111-19175iTA12..LHD197307-197509

FOR HEADLAMP CLEANER

sub52111-14110

main52111-19245iTA14197510-197707

FOR PAD

sub52111-14120

52131RETAINER, FRONT BUMPER SIDE, RH

main52131-14010iTA1#197012-197207

main52131-14011iTA1#197208-197509

main52145-14050iTA14197510-197707

52132RETAINER, FRONT BUMPER SIDE, LH

main52132-14010iTA1#197012-197207

main52132-14011iTA1#197208-197509

main52145-14050iTA14197510-197707

52137ARETAINER, FRONT TURN SIGNAL LAMP, RH

main52137-14010iTA1#197012-197207

52138ARETAINER, FRONT TURN SIGNAL LAMP, LH

main52138-14010iTA1#197012-197207

9011206023

main90112-06023

9011208017

main90112-08017

9011208043

main90112-08043

9017906070

main90179-06070

9017908123

main90179-08123

9165661032

main91656-61032

9166140625

main91661-40625

9166640825

main91666-40825

9331526014

main93315-26014

9411040800

main94110-40800

9451200800

main94512-00800

9461310800

main94613-10800

19 parts on this diagram · 2 diagrams in section
