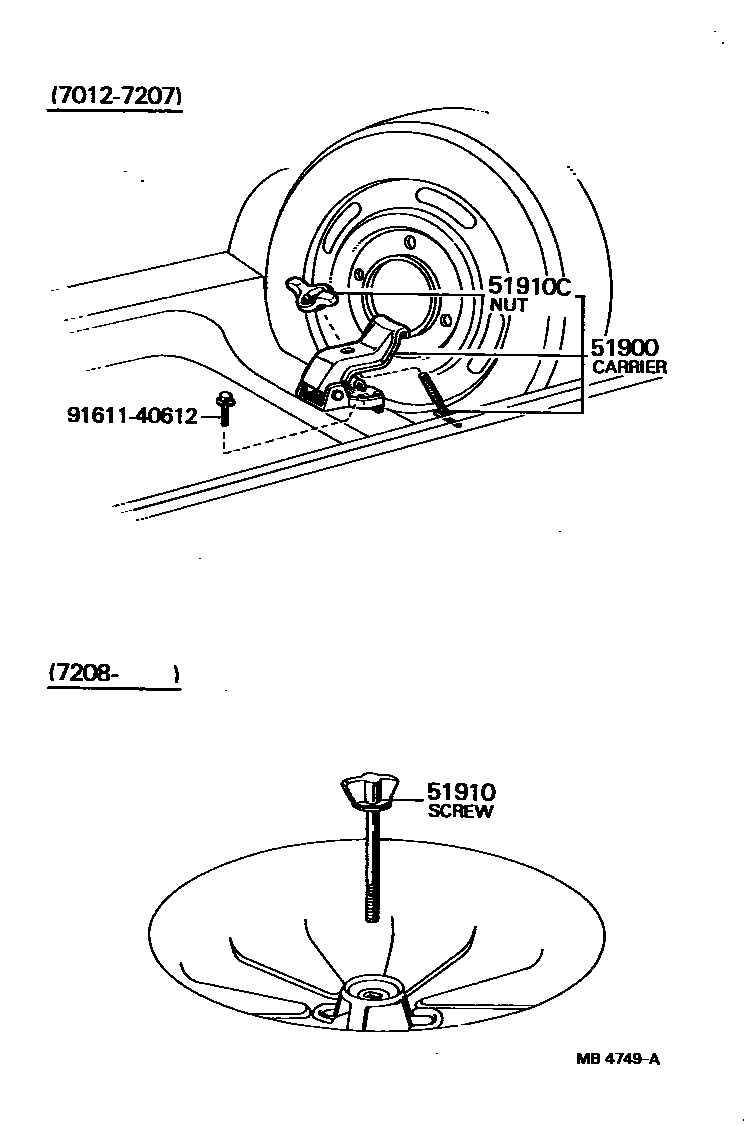

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-14010iTA1#197012-197207

51910SCREW ASSY, SPARE WHEEL CLAMP

main51910-12010iTA1#197208-197308

main51910-12020iTA1#197409-197509

main51910-14010iTA1#197308-197707

sub51910-12020

51910CNUT, WING(FOR SPARE WHEEL CLAMP SCREW)

main90175-08023iTA1#197012-197207

9161140612

main91611-40612

4 parts on this diagram · 1 diagram in section
