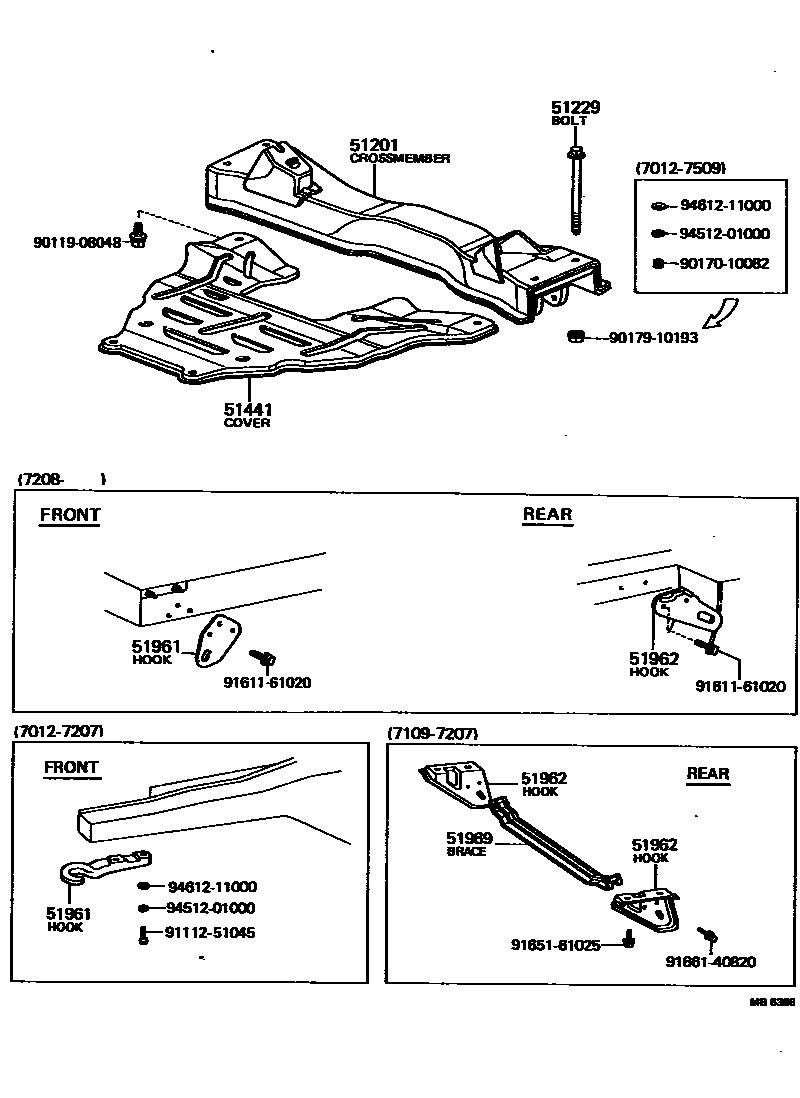

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-14010iTA1#197012-197509

main51201-14011iTA14197510-197707

sub51201-14080

sub12311-25050

sub12312-25040

51229BOLT, SUSPENSION MEMBER SET

main90105-10014×4iTA1#197012-197509

main90105-10033×4iTA14197510-197705

main90105-12009iTA14197705-197707

51441COVER, ENGINE UNDER, NO.1

main51441-14010iTA1#197012-197509

main51441-14011iTA14197510-197707

sub51441-20060

51961HOOK, NO.1

main51961-14010iTA1#197012-197207

main51963-14010×2iTA1#197208-197707

sub51963-14020

51962HOOK, NO.2

main51096-14010iTA14197510-197707

LH.

main51965-14010iTA1#197109-197207

RH.

main51966-14010iTA1#197109-197207

LH.

main51967-14011iTA1#197208-197707

RH.

main51968-14010iTA1#197208-197405

LH.

main51968-14020iTA1#197408-197509

LH.

main51968-14030iTA1#197405-197408

LH.

51969BRACE, HOOK

main51969-14010iTA1#197109-197207

9011908048

main90119-08048

9017010082

main90170-10082

9017910193

main90179-10193

9111251045

main91112-51045

9161161020

main91611-61020

9165161025

main91651-61025

9166140820

main91661-40820

9451201000

main94512-01000

9461211000

main94612-11000

15 parts on this diagram · 1 diagram in section
